The AI Systems Moment

Introduction

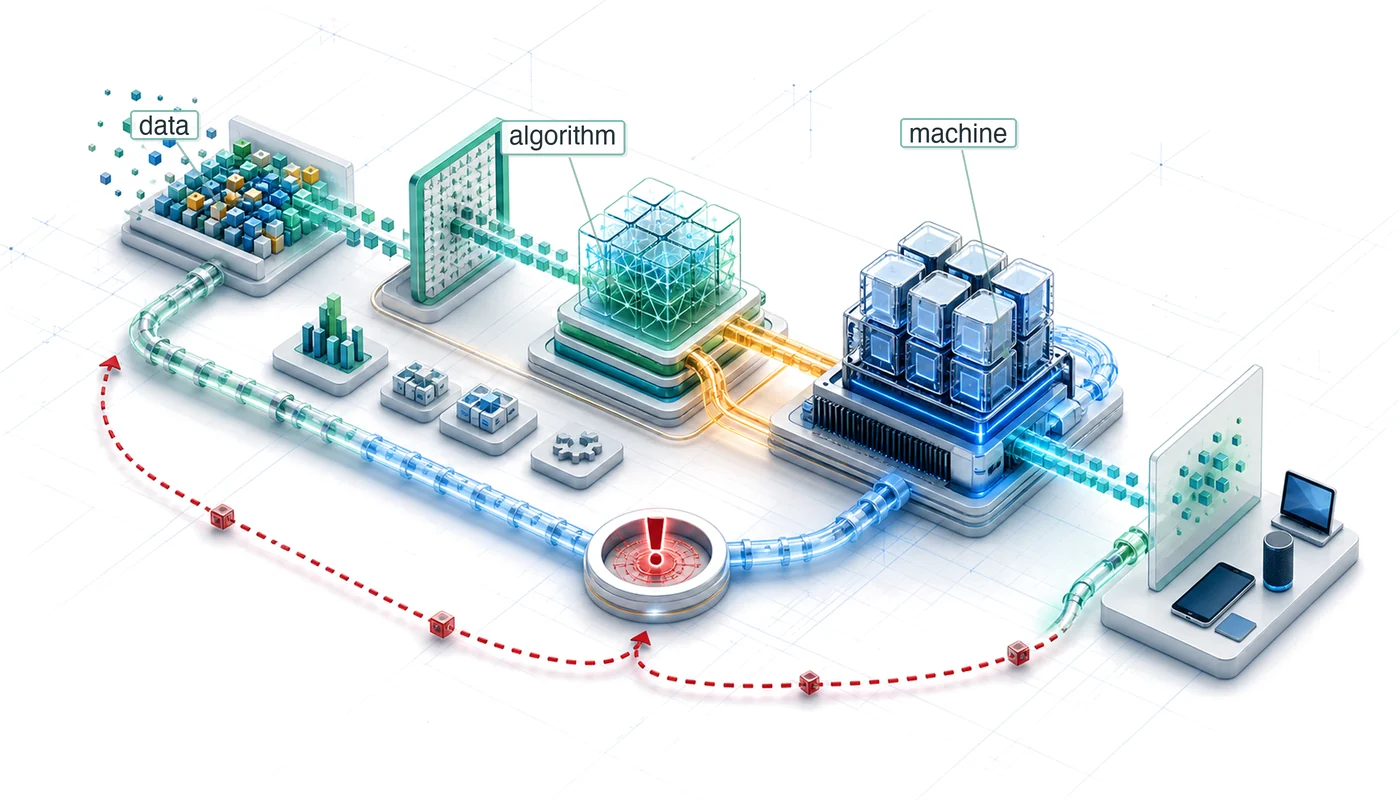

Isometric blueprint atlas showing raw data flowing through a model core, machine platform, deployment endpoint, and feedback loop as one connected ML system.

Purpose

Why does building machine learning systems require engineering principles so different from those governing traditional computing systems?

Machine learning systems have a physics. Data moves through memory hierarchies governed by bandwidth, arithmetic runs on silicon governed by power, and predictions must arrive within latency windows. These constraints are not implementation details; they shape decisions from model architecture to deployment target. ML systems also differ from traditional computing systems because behavior is defined by data, not only by explicit logic or hardware state. When a conventional program misbehaves, engineers can often trace source or inspect hardware state; when an ML system misbehaves, the code may execute correctly while learned behavior fails because the data was incomplete, biased, stale, or no longer representative. ML engineers therefore manage statistical uncertainty and physical execution constraints together. A model that fits in a data center may be useless on a phone; a training pipeline that converges in a week on one accelerator may take a month on another; an accurate model trained on last year’s data may silently degrade. Traditional practices such as testing, modularity, version control, and performance analysis remain necessary, but they are not sufficient. At system scale, an optimization in one layer can move the bottleneck to another, so correctness, efficiency, and deployability cannot be designed independently. The first task is therefore diagnosis, because improving the most visible component may leave end-to-end behavior unchanged when another constraint is binding. This volume builds a discipline grounded in computation’s physical limits. Algorithmic choices affect the stack down to the machine, and hardware constraints flow back up to model design.

Learning Objectives
  • Explain why data-defined behavior and physical constraints distinguish ML systems from traditional software
  • Apply a data-algorithm-machine lens to diagnose bottlenecks across data movement, arithmetic, and machine limits
  • Analyze AI’s shift from symbolic rules to deep learning through the bitter lesson
  • Calculate iron-law performance terms to reason about throughput, latency, and return on compute

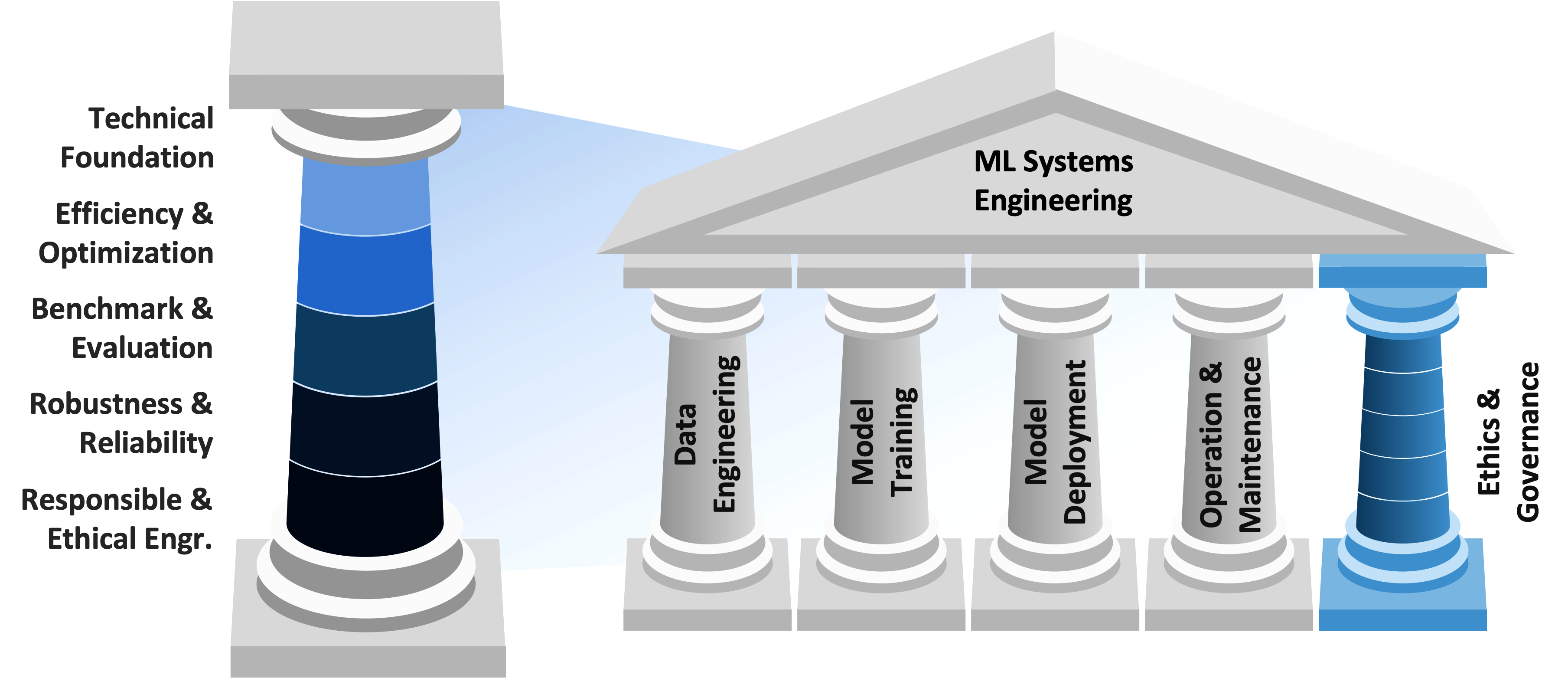

  • Synthesize lifecycle, deployment, degradation, and five-pillar perspectives into ML systems engineering judgments

Artificial intelligence is no longer confined to research demonstrations. Ask a smartphone a question and, within seconds, learned components convert speech to text, interpret intent, retrieve information, and generate a response. Search engines rank results, recommendation systems decide what people see, lenders use models to assess risk, and driver-assistance systems detect hazards. In each case, a prediction participates in a larger decision that can affect attention, money, access, or safety. What appears to be one intelligent action is therefore an end-to-end system operating in the world.

The modern AI movement became practical when three forces converged. Digital services generated more examples than engineers could encode as rules. Learning algorithms became able to extract useful behavior from those examples. Parallel machines made the resulting computation feasible. The most consequential change was conceptual. Data stopped being merely an input to software and became part of the mechanism that defines its behavior. Instead of writing every decision rule, engineers construct a training process through which examples shape the rules a system will apply.

This convergence creates a dual mandate. Every ML system must establish that its learned behavior is trustworthy and that the machine can produce that behavior within the available time, memory, energy, and cost. A model that is accurate but too slow is unusable; a fast model trained on unrepresentative data is wrong at machine speed. The distinction becomes clearest at failure boundaries. A code defect may crash loudly, while a data defect can leave every instruction executing correctly as predictions deteriorate silently. At scale, both obligations span the entire stack. Conversational services coordinate pools of GPUs1 while managing memory, networks, and heat. Driver-assistance systems must fuse sensor streams within milliseconds. Google processes 8.5B searches per day under strict latency targets. These systems succeed only when learned behavior and physical execution are engineered together. The first part of that story is the shift from code-defined logic to data-defined behavior.

1 GPU (graphics processing unit): Originally designed for rendering video game graphics, a workload requiring thousands of simple, parallel pixel calculations. This hardware-algorithm alignment proved decisive for neural networks, where the same massively parallel arithmetic structure maps directly onto matrix multiplication, making GPUs a primary physical enabler of modern training scale.

Data-Centric Paradigm Shift

That shift changes how software is built. Instead of writing behavior directly, engineers construct a process that learns behavior from data. When a traditional program fails, an engineer can often trace a branch, inspect a stack frame, and patch the code path. When an ML system loses accuracy without a code change, the cause may be a shifted data distribution, a changed label process, or a model that no longer represents production behavior. Andrej Karpathy2 described this change as the move from software 1.0 to software 2.0 (Karpathy 2017). As table 1 shows, Software 1.0 encodes operational logic in instructions, while Software 2.0 learns that logic from examples. Its failures can therefore remain silent until evaluation or monitoring reveals that behavior has changed.

2 Andrej Karpathy: A founding member of OpenAI and former Director of AI at Tesla who pioneered the application of deep learning to autonomous vehicle fleets. His “Software 2.0” thesis (2017) crystallized the insight that neural network weights are the new “source code,” forcing a new engineering reality: instead of debugging explicit logic, engineers must curate and version the data that defines program behavior, since a model with millions of parameters cannot be patched or reasoned about directly.

Karpathy, Andrej. 2017. Software 2.0. Medium.

Software 2.0 does not eliminate code. Engineers still build data pipelines, training loops, evaluation tools, and serving infrastructure. What changes is where application behavior lives. Some of it resides in learned weights shaped by data, so code review alone cannot explain what the system will do.

Table 1: The Paradigm Shift from Software 1.0 to Software 2.0: In Software 2.0, the “programmer” does not write the logic; they curate the dataset that the optimization process uses to write the logic. Debugging therefore moves upstream from code to data. The “compiler” analogy is approximate: unlike a deterministic compiler, the training process is stochastic and may produce different “executables” from the same “source code.”
Feature Software 1.0 (Traditional) Software 2.0 (Machine Learning)
Source Code C++, Python, Java Training Data + Labels
Compiler GCC, LLVM Training loop (stochastic gradient descent)
Logic Explicit (Hand-coded) Implicit (Learned)
Failure Mode Loud (Crash, Exception) Silent (Metric Degradation)
Debugging Trace execution path Inspect data distribution

The data-centered workflow changes what engineers must build and maintain. In a study of production systems at Google, Sculley and colleagues found that model code occupied only a small fraction of the engineering surface (Sculley et al. 2015). The surrounding system—data collection, verification, feature extraction, resource management, serving, and monitoring—was larger and more enduring.

A small orange box labeled ML code nested inside a much larger surrounding frame labeled System; the inner box occupies a tiny fraction of the outer area.

Production ML work is mostly the surrounding system, not the model code alone.

That imbalance creates hidden technical debt. Each surrounding component encodes assumptions about how an example is sampled, what a label means, when a feature is computed, which version reaches serving, and how degradation is detected. None of those assumptions appears in the matrix multiplication that produces a prediction, yet any of them can change the result. Improving the model alone cannot repair a stale proxy, a broken feature pipeline, or a missing feedback signal.

Production data is therefore not a passive input. It is a measurement of the world, collected through a particular product and transformed by a changing pipeline. If that measurement stops representing the intended target, the model can remain numerically healthy while the system becomes wrong. Google Flu Trends provides a revealing example. It had an enormous, timely stream of search data, but the meaning of that data changed beneath the model.

War Story 1.1: When search logs mistook attention for illness (2014)
Context: Google Flu Trends (GFT) estimated influenza activity from patterns in aggregated search queries (Ginsberg et al. 2009; Lazer et al. 2014). Its attraction came from the speed and scale at which searches arrived relative to clinical reports. If people searched for flu symptoms when they became ill, query volume appeared to offer a timely proxy for infection.

Failure mode: The proxy was not stable. News coverage changed what people searched for, and autocomplete changed how they expressed those searches. Query volume began to measure public attention and product behavior as well as illness. During the 2012–2013 season, GFT estimated roughly twice the CDC-reported proportion of doctor visits for influenza-like illness and overestimated for 100 out of 108 weeks.

Systems lesson: The remedy was not simply a larger search dataset or a better-tuned model. Researchers combined search signals with CDC sentinel clinical data and recalibrated the relationship over time. Data volume is not ground truth: a behavioral proxy needs a feedback loop to a trusted measurement and continual evidence that the proxy still represents the quantity the system claims to estimate.

Lazer, David, Ryan Kennedy, Gary King, and Alessandro Vespignani. 2014. “The Parable of Google Flu: Traps in Big Data Analysis.” Science 343 (6176): 1203–5. https://doi.org/10.1126/science.1248506.
Ginsberg, Jeremy, Matthew H. Mohebbi, Rajan S. Patel, Lynnette Brammer, Mark S. Smolinski, and Larry Brilliant. 2009. “Detecting Influenza Epidemics Using Search Engine Query Data.” Nature 457 (7232): 1012–14. https://doi.org/10.1038/nature07634.

3 Model weights: The learned numerical parameters of a neural network. A GPT-3-scale (Generative Pre-trained Transformer 3) model stores 175B such values, consuming 350 GB in FP16 precision, a 16-bit floating-point format that uses two bytes per value (Brown et al. 2020). Parameter count determines the weight footprint and strongly influences serving memory traffic and cost (see Neural Computation).

Brown, Tom B., Benjamin Mann, Nick Ryder, Melanie Subbiah, Jared Kaplan, Prafulla Dhariwal, Arvind Neelakantan, et al. 2020. “Language Models Are Few-Shot Learners.” Advances in Neural Information Processing Systems 33: 1877–901. https://doi.org/10.48550/arxiv.2005.14165.

4 Stochastic gradient descent (SGD): The algorithm learns model parameters by processing small, randomly sampled groups of examples (“batches”) rather than the entire dataset at once. This trades statistical noise for computational speed. Batch size also affects the machine because a batch that is too small may fail to saturate an accelerator’s parallel processors, wasting much of its potential computation.

Google Flu Trends failed without a conventional software defect. The code did not change, but the effective program did because the distribution of inputs and the relationship between proxy and target had changed. Under the data-as-code principle, training data does not merely enter a fixed program; it helps determine the operational logic that the model implements. Engineers still write the optimization procedure, but the examples shape the model weights3 through stochastic gradient descent4 and related methods. Changing the dataset can therefore change system behavior as surely as changing source code.

From an ML development perspective, this represents a transition from model-centric to data-centric AI (Ng 2021). In a model-centric approach, teams hold the data fixed and focus on improving model code. In a data-centric approach, they hold the code comparatively fixed and systematically improve the data, making data curation a first-class part of programming model behavior. The shift also changes what testing can establish because no finite dataset can represent every input that a learned system may encounter.

Ng, Andrew. 2021. MLOps: From Model-Centric to Data-Centric AI. DeepLearning.AI.

5 AlexNet: Alex Krizhevsky, Ilya Sutskever, and Geoffrey Hinton trained this convolutional neural network across two GPUs. At ILSVRC 2012, its 15.3 percent top-5 error, meaning the correct class was absent from its five highest-scoring predictions, substantially beat the second-place system’s 26.2 percent (Krizhevsky et al. 2012). Section 1.2.3 returns to its architecture and systems co-design.

Krizhevsky, Alex, Ilya Sutskever, and Geoffrey E. Hinton. 2012. “ImageNet Classification with Deep Convolutional Neural Networks.” Advances in Neural Information Processing Systems (NeurIPS) 25.

The limit becomes clear when we ask what a test set can cover. Software 1.0 logic can often be enumerated or partitioned into paths and edge cases. A learned system instead operates across a high-dimensional input space that is technically finite but impossible to enumerate in practice. The 2012 ImageNet challenge makes this problem concrete. AlexNet’s decisive win5 helped set the deep learning era in motion, yet the benchmark could evaluate only a vanishing fraction of the inputs the model might encounter. Each input is a \(224{\times}224\) RGB image with \(256^{150{,}528}\) possible pixel configurations, a number with 362,508 digits. The ImageNet Large Scale Visual Recognition Challenge (ILSVRC) validation set contains only 50,000 images (Krizhevsky et al. 2012; Russakovsky et al. 2015). Let Total Input Space denote the number of possible inputs and Test Set Coverage the number that a test suite actually evaluates. Their disparity creates the verification gap (equation 1):

\[ \text{Verification Gap} = \text{Total Input Space} - \text{Test Set Coverage} \approx \text{Total Input Space} \tag{1}\]

The gap does not make testing futile; it changes what testing can establish. Predeployment evaluation provides statistical evidence over sampled inputs, while production monitoring tests whether the operating population and observed outcomes still support that evidence. Statistical reliability replaces any expectation of exhaustive proof.

Vertical log-scale ladder of two blue bars: a towering bar for the total input space far above a tiny bar for test-set coverage, the gap between them spanning many orders of magnitude.

Test coverage is a vanishing fraction of the input space.

The engineering consequence reaches beyond testing. Debugging an ML system requires debugging the data, not the Python scripts alone. Version control must track datasets, not git commits alone. Evaluation must examine distributions and outcomes, not code paths alone. Together, these practices make learned behavior traceable, but they cannot turn statistical evidence into exhaustive proof.

Checkpoint 1.1: The paradigm shift

Before tracing the history of AI, verify your understanding of the paradigm shift in how we build software:

The verification gap marks a deeper change in what engineers can claim. Traditional assertions often describe a particular execution in which a given input and state lead the program down a specific path. ML performance claims describe behavior over a population. A fixed model may return the same output for the same input while its measured accuracy changes as the population changes. Data supplies the patterns from which the system learns, but its noise, drift, and omissions also create uncertainty. Robustness therefore cannot mean resisting every change. It requires making change observable and adapting when the evidence no longer supports the system’s assumptions, a form of probabilistic engineering.

Learning behavior from data can now seem inevitable, but it was not. Earlier AI systems attempted to program intelligence directly. Following those attempts reveals why the bottleneck moved from logic, to knowledge, to features, and finally to infrastructure—and why systems engineering became central to progress.

Self-Check: Question

  1. In Andrej Karpathy’s Software 1.0 vs. Software 2.0 framing, how do the roles of source code, the compiler, and debugging map to machine learning workflows?

    1. Training datasets and labels act as source code, the optimization loop (stochastic gradient descent) acts as the compiler, and debugging focuses on inspecting data distributions rather than execution traces.
    2. Python scripts act as source code, the deep learning framework acts as the compiler, and debugging focuses on stepping through tensor operations in an interactive debugger.
    3. Neural network weights act as source code, GPU hardware acts as the compiler, and debugging focuses on profiling memory bandwidth utilization.
    4. Pretrained model weights act as source code, inference serving runtimes act as the compiler, and debugging focuses on network packet inspection.

  2. A computer vision test suite evaluates a \(224 \times 224\) RGB image classifier on 50,000 validation images. Why does passing 100% of these test cases still leave a substantial ‘verification gap’ in production?

    1. Validation sets evaluate floating-point weights, whereas production inference engines always run in integer precision.
    2. The total input space of possible pixel configurations (\(256^{150{,}528}\), spanning over 300,000 decimal digits) vastly exceeds the sample coverage of any finite test set, making exhaustive testing mathematically impossible.
    3. Convolutional neural networks cannot generalize beyond the exact batch size used during validation testing.
    4. Test suites only evaluate forward inference passes, whereas production systems must continuously execute backward gradient updates.

  3. How did Google Flu Trends fail despite having access to hundreds of billions of real-time search queries, and what systems engineering lesson does this failure provide regarding behavioral proxies?

  4. The development paradigm where engineering teams hold model architecture code relatively fixed and systematically improve dataset quality, labels, and coverage to program model behavior is known as ____ AI.

See Answers →

The Evolution of AI Bottlenecks

AI’s evolution reveals a progression of bottlenecks, each overcome by systems innovations that expanded what was computationally possible. One foundational landmark is Turing’s6 paper “Computing Machinery and Intelligence” (Turing 1950), which asked whether machines can think. Early systems explored contrasting approaches: the Perceptron (1958) (Rosenblatt 1958) learned from examples, while ELIZA7 (Weizenbaum 1966) followed hand-written pattern-matching rules. Both remained narrow, but for different reasons. Subsequent eras hit the knowledge acquisition bottleneck because manual knowledge entry could not scale. Modern systems face a different constraint in computational throughput.

6 Alan Turing: His 1950 “Imitation Game” reframed intelligence as an output-measurement problem: judge a system by what it does, not by what it is. This engineering-first stance persists in every ML systems metric we use today: accuracy, latency, throughput, and FLOP/s per watt are all output measurements. The iron law (section 1.6) decomposes performance into observable, measurable terms rather than internal architectural properties for exactly this reason.

7 ELIZA: A 1966 natural-language program using pattern-matching rules rather than learned parameters. Its scripts could store and retrieve selected inputs, but this limited hand-written memory did not provide learned conversational state. Every new input variation required another rule, making maintenance grow faster than capability and foreshadowing the knowledge bottleneck that constrained later expert systems.

8 AI winters as systems failures: The first AI winter (1974–1980) unfolded amid funding cuts; the 1973 Lighthill Report criticized the gap between AI promises and delivered results (Lighthill 1973). The second winter (1987–1993) involved a market and funding collapse around expert systems and specialized Lisp machines as general-purpose workstations undercut their economics (Hendler 2008). From this book’s systems perspective, both episodes expose algorithm ambition outrunning available infrastructure, market support, and engineering maturity, not merely a shortage of clever algorithms.

Lighthill, James. 1973. “Artificial Intelligence: A General Survey.” In Artificial Intelligence: A Paper Symposium. Science Research Council.
Hendler, James A. 2008. “Avoiding Another AI Winter.” IEEE Intelligent Systems 23 (2): 2–4. https://doi.org/10.1109/MIS.2008.20.

The timeline in figure 1 traces how often artificial intelligence is mentioned in published books, a proxy for attention rather than a direct measure of research output. It reveals a recurring pattern of intense optimism followed by “AI winters”8 when funding collapsed, often after systems limitations exposed a gap between ambition and available capability. Resurgences combined algorithmic advances with new data and engineering infrastructure. Each resurgence displaced one bottleneck and exposed the next.

\begin{tikzpicture}[line join=round,font=\sffamily\small]
\definecolor{bluegraph}{RGB}{0,102,204}
    \pgfmathsetlengthmacro\MajorTickLength{
      \pgfkeysvalueof{/pgfplots/major tick length} * 1.5
    }
\tikzset{%
   textt/.style={line width=0.5pt,draw=bluegraph,text width=26mm,align=flush center,
                        font=\sffamily\footnotesize,fill=cyan!7},
   Line/.style={line width=0.85pt,draw=bluegraph,dash pattern=on 3pt off 2pt,
   {Circle[bluegraph,length=4.5pt]}-   }
}

\begin{axis}[clip=false,
  axis line style={thick},
  axis lines*=left,
  axis on top,
  width=230mm,
  height=200mm,
  xmin=1950,
  xmax=2023,
  ymin=0.000000,
  ymax=0.00032,
  xtick={1950,1960,1970,1980,1990,2000,2010,2020},
  extra x ticks={1955,1965,1975,1985,1995,2005,2015},
  extra x tick labels={},
  xticklabels={1950,1960,1970,1980,1990,2000,2010,2020},
  ytick={0.0000,0.00005, 0.00010, 0.00015, 0.00020, 0.00025, 0.00030},
  yticklabels={0.0000,0.00005, 0.00010, 0.00015, 0.00020, 0.00025, 0.00030},
  grid=none,
    tick label style={/pgf/number format/assume math mode=true},
    xticklabel style={font=\footnotesize\sffamily,
},
   yticklabel style={
  font=\footnotesize\sffamily,
  /pgf/number format/fixed,
  /pgf/number format/fixed zerofill,
  /pgf/number format/precision=5
},
scaled y ticks=false,
 tick style = {line width=1.0pt},
 tick align = outside,
 major tick length=\MajorTickLength,
]
\fill[fill=BrownL!70](axis cs:1974,0)rectangle(axis cs:1980,0.00031)
        node[above,align=center,xshift=-7mm]{1st AI \ Winter};
\fill[fill=BrownL!70](axis cs:1987,0)rectangle(axis cs:1993,0.00031)
        node[above,align=center,xshift=-7mm]{2nd AI \ Winter};
\addplot[line width=2pt,color=RedLine,smooth,samples=100] coordinates {
(1950,0.0000006281)
(1951,0.0000000683)
(1952,0.0000003056)
(1953,0.0000002927)
(1954,0.0000004296)
(1955,0.0000004593)
(1956,0.0000016705)
(1957,0.0000006570)
(1958,0.0000021902)
(1959,0.0000032832)
(1960,0.0000126863)
(1961,0.0000063721)
(1962,0.0000240680)
(1963,0.0000141502)
(1964,0.0000111442)
(1965,0.0000143832)
(1966,0.0000147726)
(1967,0.0000169539)
(1968,0.0000167880)
(1969,0.0000175559)
(1970,0.0000155680)
(1971,0.0000206809)
(1972,0.0000223804)
(1973,0.0000218203)
(1974,0.0000256138)
(1975,0.0000282924)
(1976,0.0000247784)
(1977,0.0000404966)
(1978,0.0000358032)
(1979,0.0000436903)
(1980,0.0000472788)
(1981,0.0000561471)
(1982,0.0000767864)
(1983,0.0001064465)
(1984,0.0001592212)
(1985,0.0002133700)
(1986,0.0002559067)
(1987,0.0002608470)
(1988,0.0002623321)
(1989,0.0002358150)
(1990,0.0002301105)
(1991,0.0002051343)
(1992,0.0001789229)
(1993,0.0001560935)
(1994,0.0001508219)
(1995,0.0001401406)
(1996,0.0001169577)
(1997,0.0001150365)
(1998,0.0001051385)
(1999,0.0000981740)
(2000,0.0001010236)
(2001,0.0000976966)
(2002,0.0001038084)
(2003,0.0000980004)
(2004,0.0000989412)
(2005,0.0000977251)
(2006,0.0000899964)
(2007,0.0000864005)
(2008,0.0000911872)
(2009,0.0000852932)
(2010,0.0000822649)
(2011,0.0000913442)
(2012,0.0001104912)
(2013,0.0001023061)
(2014,0.0001022477)
(2015,0.0000919719)
(2016,0.0001134797)
(2017,0.0001384348)
(2018,0.0002057324)
(2019,0.0002328642)
}
;

\node[textt,text width=20mm](1950)at(axis cs:1957,0.00014){\textcolor{red}{1950}\\
Alan Turing publishes \textit{Computing Machinery and Intelligence} in the journal \textit{Mind}.};
\node[red,align=center,above=2mm of 1950]{Milestones\ in AI};
\draw[Line] (axis cs:1950,0) -- (1950.235);
%
\node[textt,text width=19mm](1956)at(axis cs:1958,0.00007){\textcolor{red}{Summer 1956}\\
\textbf{Dartmouth Workshop} A formative conference organized by AI pioneer John McCarthy.};
\draw[Line] (axis cs:1956,0) -- (1956.255);
%
\node[textt](1957)at(axis cs:1969,0.00022){\textcolor{red}{1958}\\
\textbf{Cornell psychologist Frank Rosenblatt invents the perceptron}, laying the groundwork for
modern neural networks.};
\draw[Line] (axis cs:1957,0) -- ++(0mm,17mm)-|(1957.248);
%
\node[textt,text width=21mm](1966)at(axis cs:1972,0.00012){\textcolor{red}{1966}\\
\textbf{ELIZA chatbot} An early example of natural-language programming created by
MIT professor Joseph Weizenbaum.};
\draw[Line] (axis cs:1966,0) -- ++(0mm,17mm)-|(1966);
%
\node[textt,text width=20mm](1979)at(axis cs:1985,0.00012){\textcolor{red}{1979}\\
Hans Moravec builds the \textbf{Stanford Cart}, one of the first autonomous vehicles.};
\draw[Line] (axis cs:1979,0) -- ++(0mm,17mm)-|(1979.245);
%
\node[textt,text width=21mm](1981)at(axis cs:1990,0.00006){\textcolor{red}{1981}\\
Japanese \textbf{Fifth-Generation Computer Systems} project begins. The infusion of
research funding helps end first "AI winter."};
\draw[Line] (axis cs:1981,0) -- ++(0mm,10mm)-|(1981);
%
\node[textt,text width=15mm](1997)at(axis cs:2001,0.00007){\textcolor{red}{1997}\\
\textbf{IBM's Deep Blue} beats world chess champion Garry Kasparov};
\draw[Line] (axis cs:1997,0) -- ++(0mm,10mm)-|(1997);
%
\node[textt,text width=15mm](2011)at(axis cs:2014,0.00003){\textcolor{red}{2011}\\
\textbf{IBM's Watson} wins at Jeopardy!};
\draw[Line] (axis cs:2011,0) -- (2011);
%
\node[textt,text width=19mm](2005)at(axis cs:2012,0.00009){\textcolor{red}{2005}\\
\textbf{DARPA Grand Challenge} Stanford wins the agency's second driverless-car
competition by driving 212 kilometers on an unrehearsed trail};
\draw[Line] (axis cs:2005,0) -- (2005);
%
\node[textt,text width=30mm](2020)at(axis cs:2010,0.00017){\textcolor{red}{2020}\\
\textbf{OpenAI introduces GPT-3}. The 175-billion-parameter model demonstrates few-shot in-context learning, initiating the era of foundation-model compute scale.};
\draw[Line] (axis cs:2020,0) |- (2020);
%
\draw[Line,solid,-] (axis cs:1991,0.0002) --++(50:35mm)
node[bluegraph,above,align=center,text width=30mm]{Percent of U.S.-published books
in Google's database that mention artificial intelligence};
\end{axis}
\end{tikzpicture}
Figure 1: AI Development Timeline: A chronological proxy curve traces historical mentions of artificial intelligence in published literature (Michel et al. 2011), with light-brown bands marking the two AI Winter periods (1974–1980, 1987–1993). Callout boxes mark Turing’s 1950 paper (Turing 1950), the Dartmouth conference (McCarthy et al. 1955), the Perceptron (Rosenblatt 1958), ELIZA (Weizenbaum 1966), Deep Blue (Campbell et al. 2002), and GPT-3 (Brown et al. 2020).
Michel, Jean-Baptiste, Yuan Kui Shen, Aviva Presser Aiden, Adrian Veres, Matthew K. Gray, William Brockman, Joseph P. Pickett, et al. 2011. “Quantitative Analysis of Culture Using Millions of Digitized Books.” Science 331 (6014): 176–82. https://doi.org/10.1126/science.1199644.
Turing, Alan M. 1950. “I.—Computing Machinery and Intelligence.” Mind LIX (236): 433–60. https://doi.org/10.1093/mind/lix.236.433.
Rosenblatt, Frank. 1958. “The Perceptron: A Probabilistic Model for Information Storage and Organization in the Brain.” Psychological Review 65 (6): 386–408. https://doi.org/10.1037/h0042519.
Weizenbaum, Joseph. 1966. “ELIZA–a Computer Program for the Study of Natural Language Communication Between Man and Machine.” Communications of the ACM 9 (1): 36–45. https://doi.org/10.1145/365153.365168.

The prelearning era: Logic and knowledge bottlenecks

Before machine learning existed as a discipline, engineers attempted to build intelligent systems through two successive paradigms, each of which hit a fundamental scaling barrier. Symbolic AI encoded intelligence as logical rules and hit the logic bottleneck when those rules could not capture real-world ambiguity. Expert systems encoded intelligence as domain knowledge and hit the knowledge bottleneck when acquiring and maintaining that knowledge became more expensive than the systems were worth. Together, these two eras reveal the pattern that motivates everything that follows. Hand-crafted representations do not scale.

The symbolic AI era and the logic bottleneck

The first era of AI engineering (1950s–1970s) attempted to reduce intelligence to symbolic AI manipulation, an approach later crystallized in the physical-symbol-system hypothesis (Newell and Simon 1976). Researchers at the 1956 Dartmouth Conference9 (McCarthy et al. 1955) hypothesized that aspects of intelligence could be precisely described and simulated by machines. Even then, Arthur Samuel at IBM demonstrated a different path in 1959 when a checkers program improved through self-play. His work coined the term “machine learning” (Samuel 1959), though the dominant paradigm remained symbolic. Daniel Bobrow’s STUDENT10 system exemplifies this approach (Bobrow 1964).

Newell, Allen, and Herbert A. Simon. 1976. “Computer Science as Empirical Inquiry: Symbols and Search.” Communications of the ACM 19 (3): 113–26. https://doi.org/10.1145/360018.360022.

9 Dartmouth Conference (1956): The workshop organized around the term “artificial intelligence,” already used in its 1955 proposal (McCarthy et al. 1955). Its participants framed intelligence in terms of language, abstraction, problem solving, and self-improvement, with little attention to the physical constraints of storage and compute that later became central. The same compute-agnostic assumption, that a better algorithm could always overcome a hardware limit, is precisely what this book exists to correct: every chapter that follows argues that systems constraints are first-class design variables, not afterthoughts.

McCarthy, John, Marvin L. Minsky, Nathaniel Rochester, and Claude E. Shannon. 1955. A Proposal for the Dartmouth Summer Research Project on Artificial Intelligence, August 31, 1955. 4. Vol. 27. Dartmouth College. https://doi.org/10.1609/aimag.v27i4.1904.
Samuel, A. L. 1959. “Some Studies in Machine Learning Using the Game of Checkers.” IBM Journal of Research and Development 3 (3): 210–29. https://doi.org/10.1147/rd.33.0210.

10 STUDENT: Daniel Bobrow’s 1964 MIT program parsed constrained English word problems, represented their relationships symbolically, and passed the resulting equations to an algebra solver. It was an early separation of language interpretation from formal reasoning: once the representation was correct, solving was straightforward; coverage depended on hand-written transformations (Bobrow 1964).

Bobrow, Daniel G. 1964. “Natural Language Input for a Computer Problem Solving System.” PhD thesis, Massachusetts Institute of Technology.

11 Moravec’s paradox: Carnegie Mellon roboticist Hans Moravec observed that high-level reasoning (chess) requires little compute while low-level perception (walking) requires massive parallelism (Moravec 1988). This paradox explains a central fact of ML systems engineering: the tasks that seem “easy” to humans (vision, speech, motor control) are the ones that demand the highest FLOP/s, memory bandwidth, and specialized hardware, driving the accelerator revolution that defines modern ML infrastructure.

Moravec, Hans. 1988. Mind Children: The Future of Robot and Human Intelligence. Harvard University Press.

These systems could produce impressive demonstrations, yet they were operationally brittle. Their success depended on manually coded rules that mapped each acceptable input form to a symbolic representation. STUDENT could solve an algebra problem once it translated English into equations, but a minor variation in phrasing could prevent that translation. The difficulty extended beyond language. Hans Moravec’s11 work on autonomous navigation at Stanford revealed that tasks humans find trivial (seeing, walking, grasping) were far harder to engineer than tasks humans find difficult, like chess or algebra.

Example 1.1: STUDENT (1964)
STUDENT separated language interpretation from algebra:

language  "Two numbers sum to 30; one is twice the other."
parse     x + y = 30, x = 2y
solve     x = 20, y = 10

Once the representation was correct, solving was routine. The bottleneck was the translation: each unfamiliar phrasing needed another hand-written rule, so linguistic coverage grew only as fast as the rule base.

The expert systems era and the knowledge bottleneck

In the expert-systems era, engineers narrowed the problem. Instead of constructing general reasoning systems, they encoded deep knowledge from a specific domain. MYCIN, designed to diagnose blood infections, let medical knowledge be expressed as production rules (Shortliffe et al. 1975).

Shortliffe, Edward H., Randall Davis, Stanton G. Axline, Bruce G. Buchanan, C.Cordell Green, and Stanley N. Cohen. 1975. “Computer-Based Consultations in Clinical Therapeutics: Explanation and Rule Acquisition Capabilities of the MYCIN System.” Computers and Biomedical Research 8 (4): 303–20. https://doi.org/10.1016/0010-4809(75)90009-9.

Example 1.2: MYCIN (1976)
MYCIN made its reasoning explicit. Patient facts triggered readable production rules:

facts  stain=gram-positive, shape=coccus, arrangement=clumps
rule   IF facts match THEN organism=staphylococcus (certainty=0.7)
cycle  match facts -> fire rule -> update certainty -> repeat

An inference engine repeated this cycle across hundreds of rules and propagated certainty factors toward a diagnosis. A physician could inspect every step, but coverage still grew one rule at a time: each exception had to be elicited, encoded, and reconciled with the existing rule base.

MYCIN performed well in specific tests, but its success exposed the knowledge acquisition bottleneck.12 The problem was no longer whether a rule could express expertise. It was how tacit judgment entered the system and remained consistent as the rule base grew.

12 Knowledge acquisition bottleneck: Feigenbaum’s knowledge-engineering work framed applied AI around the practical difficulty of extracting, representing, and maintaining expert knowledge (Feigenbaum 1984). In systems terms, this bottleneck was a throughput problem: knowledge elicitation and rule maintenance were bound by the serial bandwidth of human experts. Unlike computational bottlenecks that yield to faster hardware, this one was the original “does not scale” constraint in AI and a direct motivation for the data-driven paradigm that followed.

Feigenbaum, Edward A. 1984. “Knowledge Engineering: The Applied Side of Artificial Intelligence.” Annals of the New York Academy of Sciences 426: 91–107. https://doi.org/10.1111/j.1749-6632.1984.tb16513.x.

Faster machines could evaluate more rules, but they could not extract human judgment faster. Scalable AI needed a way to infer useful decision boundaries from examples rather than requiring engineers to enumerate those boundaries in advance.

That change did not remove human design; it changed what engineers designed. Instead of encoding every decision, they chose the examples, representations, objectives, and measurements from which a decision could be learned. The next era therefore exchanged the knowledge-acquisition bottleneck for a new question: which evidence should the learner see?

The statistical learning era and the feature engineering bottleneck

The 1990s marked the shift to statistical learning and probabilistic systems. Instead of hard-coded logic, systems estimated probabilities from data (\(p(y \mid x)\)). This transition was driven by the availability of digital data and the “unreasonable effectiveness”13 of large datasets.

13 Unreasonable effectiveness of data: The observation that a simple statistical model fed with massive amounts of data can outperform a more sophisticated model with less data (Halevy et al. 2009). Halevy and colleagues illustrated the effect with large web corpora, not a universal error-rate multiplier; gains depend on the task, model, data quality, and starting point. The result supported the shift from brittle hand-crafted systems toward probabilistic models and made data collection, storage, preprocessing, and distributed training central engineering concerns.

Halevy, Alon, Peter Norvig, and Fernando Pereira. 2009. “The Unreasonable Effectiveness of Data.” IEEE Intelligent Systems 24 (2): 8–12. https://doi.org/10.1109/mis.2009.36.

Spam filtering illustrates this shift. Rather than maintaining lists of forbidden words, statistical filters learned the probability that a word implies spam based on millions of examples.

Example 1.3: Early spam detection systems
Statistical filters shifted the decision from a hand-written rule to a probability estimated from labeled messages:

rules: if "free" or "winner" appears -> spam
learn: labeled email -> word likelihoods -> P(spam | email)

Maintenance did not disappear. It moved from editing keyword lists to curating representative examples and checking whether the learned probabilities still tracked current email.

Learning the decision boundary from data removed one bottleneck but exposed another. Statistical algorithms such as Support Vector Machines (SVMs) could learn robustly only after humans converted raw inputs into structured features. The learner adjusted the boundary; engineers decided which evidence it could see. Scaling to a new problem often meant rebuilding the preprocessing stack, turning an apparent algorithm limitation into the feature engineering bottleneck. The traditional pipeline makes this manual effort visible because several hand-crafted stages preceded any learning at all.

This hybrid approach combined human-engineered features with statistical learning. The Viola-Jones algorithm14 (Viola and Jones 2001) exemplifies this era, achieving real-time frontal-face detection using simple rectangular features and cascaded classifiers. It showed that well-engineered features could enable practical low-latency applications, but only within narrow domains where experts could hand-craft the right representations.

14 Viola-Jones algorithm: The algorithm’s real-time speed came from a classifier cascade that used simple, hand-engineered rectangular features to immediately reject nonface regions. The method was designed and evaluated for frontal-face detection, illustrating the era’s trade-off: expert feature design could be fast and effective, but the representation was task-specific. The first two layers alone could discard over 80 percent of negative sub-windows while using just twelve of the 6,000+ total features (Viola and Jones 2001).

Viola, Paul, and Michael J. Jones. 2001. “Rapid Object Detection Using a Boosted Cascade of Simple Features.” Proceedings of the 2001 IEEE Computer Society Conference on Computer Vision and Pattern Recognition. CVPR 2001 1: I-511-I-518. https://doi.org/10.1109/cvpr.2001.990517.

Example 1.4: Traditional computer vision pipeline
A conventional vision system separated representation from classification:

image -> resize -> HOG/SIFT features -> SVM -> label

Only the final decision boundary was learned. Moving from faces to pedestrians or another domain meant redesigning the feature extractor and often the entire preprocessing stack.

The deep learning era and the infrastructure bottleneck

Deep learning changed which part of the system learned. Instead of receiving features designed by humans, neural networks learned representations directly from raw inputs such as pixels and audio waveforms. The training process could now shape both the representation and the decision boundary, enabling “end-to-end” learning.

The breakthrough was not algorithmic alone. Convolutional neural networks (CNNs) existed earlier (LeCun et al. 1998, 2015); AlexNet paired architecture and training with systems co-design, choosing the model, training procedure, and hardware mapping together (Krizhevsky et al. 2012). Its parallel matrix operations matched GPU capabilities. With 60 million parameters distributed across two GTX 580 GPUs, AlexNet achieved 15.3 percent top-5 error, a 41.6 percent relative improvement over the next-best entry that year. The processing stages in figure 2 show the model learning progressively richer image representations before producing one of 1,000 output classes.

LeCun, Yann, Yoshua Bengio, and Geoffrey Hinton. 2015. “Deep Learning.” Nature 521 (7553): 436–44. https://doi.org/10.1038/nature14539.
\begin{tikzpicture}[line join=round,font=\sffamily\small]
\clip (-11.2,-2) rectangle (15.5,5.45);
%\draw[red](-11.2,-1.7) rectangle (15.5,5.45);
\tikzset{%
 LineD/.style={line width=0.7pt,black!50,dashed,dash pattern=on 3pt off 2pt},
  LineG/.style={line width=0.75pt,GreenLine},
  LineR/.style={line width=0.75pt,RedLine},
  LineA/.style={line width=0.75pt,BrownLine,-latex,text=black}
}
\newcommand\FillCube[4]{
\def\depth{#2}
\def\width{#3}
\def\height{#4}
\def\nc{#1}
% Lower front left corner
\coordinate (A\nc) at (0, 0);
% Donji prednji desni
\coordinate (B\nc) at (\width, 0);
% Upper front right
\coordinate (C\nc) at (\width, \height);
% Upper front left
\coordinate (D\nc) at (0, \height);
% Pomak u "dubinu"
\coordinate (shift) at (-0.7*\depth, \depth);
% Last points (moved)
\coordinate (E\nc) at ($(A\nc) + (shift)$);
\coordinate (F\nc) at ($(B\nc) + (shift)$);
\coordinate (G\nc) at ($(C\nc) + (shift)$);
\coordinate (H\nc) at ($(D\nc) + (shift)$);
% Front side
\draw[GreenLine,fill=green!08,line width=0.5pt] (A\nc) -- (B\nc) -- (C\nc) --(D\nc) -- cycle;
% Top side
\draw[GreenLine,fill=green!20,line width=0.5pt] (D\nc) -- (H\nc) -- (G\nc) -- (C\nc);
% Left
\draw[GreenLine,fill=green!15] (A\nc) -- (E\nc) -- (H\nc)--(D\nc)--cycle;
\draw[] (E\nc) -- (H\nc);
\draw[GreenLine,line width=0.75pt](A\nc)--(B\nc)--(C\nc)--(D\nc)--(A\nc)
(A\nc)--(E\nc)--(H\nc)--(G\nc)--(C\nc)
(D\nc)--(H\nc);
}
%%%
\newcommand\SmallCube[4]{
\def\nc{#1}
\def\depth{#2}
\def\width{#3}
\def\height{#4}
\coordinate (A\nc) at (0, 0);
\coordinate (B\nc) at (\width, 0);
\coordinate (C\nc) at (\width, \height);
\coordinate (D\nc) at (0, \height);
\coordinate (shift) at (-0.7*\depth, \depth);
\coordinate (E\nc) at ($(A\nc) + (shift)$);
\coordinate (F\nc) at ($(B\nc) + (shift)$);
\coordinate (G\nc) at ($(C\nc) + (shift)$);
\coordinate (H\nc) at ($(D\nc) + (shift)$);
\draw[RedLine,fill=red!08,line width=0.5pt,fill opacity=0.7] (A\nc) -- (B\nc) -- (C\nc) -- (D\nc) -- cycle;
\draw[RedLine,fill=red!20,line width=0.5pt,fill opacity=0.7] (D\nc) -- (H\nc) -- (G\nc) -- (C\nc);
\draw[RedLine,fill=red!15,fill opacity=0.7] (A\nc) -- (E\nc) -- (H\nc)--(D\nc)--cycle;
\draw[] (E\nc) -- (H\nc);
}
%%%%%%%%%%%%%%%%%%%%%
%%4 column
%%%%%%%%%%%%%%%%%%%%
\begin{scope}
%big cube
\begin{scope}
\FillCube{4VD}{0.8}{3}{2}
\end{scope}
%%small cube
\begin{scope}[shift={(-0.10,0.4)},line width=0.5pt]
\SmallCube{4MD}{0.4}{3}{0.6}
%%
\draw[LineR](A\nc)-- (B\nc)--node[left,text=black]{3}
(C\nc)--(D\nc)-- (A\nc)
(A\nc)--(E\nc)--(H\nc)--(G\nc)--node[left,text=black]{3}(C\nc)
(D\nc)-- (H\nc);
%
\def\nc{4VD}
\draw[LineG](A\nc)--node[below,text=black]{192} (B\nc)--
(C\nc)--(D\nc)--node[right,text=black,text opacity=1]{13} (A\nc)
(A\nc)--(E\nc)--(H\nc)--(G\nc)--(C\nc)
(D\nc)--node[right,text=black,text opacity=1]{13} (H\nc);
\end{scope}
\end{scope}
%%Above
\begin{scope}[shift={(0,3.5)}]
%big cube
\begin{scope}
\FillCube{4VG}{0.8}{3}{2}
\end{scope}
%%small cube
\begin{scope}[shift={(-0.18,0.55)}]
\SmallCube{4MG}{0.4}{3}{0.6}
%%
\draw[LineR](A\nc)-- (B\nc)--node[left,text=black]{3}
(C\nc)--(D\nc)-- (A\nc)
(A\nc)--(E\nc)--(H\nc)--(G\nc)--node[left,text=black]{3}(C\nc)
(D\nc)-- (H\nc);
\def\nc{4VG}
\draw[LineG](A\nc)--node[below,text=black]{192} (B\nc)--
(C\nc)--(D\nc)--node[right,text=black,text opacity=1]{} (A\nc)
(A\nc)--(E\nc)--(H\nc)--(G\nc)--(C\nc)
(D\nc)--node[right,text=black,text opacity=1]{} (H\nc);
\end{scope}
\end{scope}
%%%%%
%%5 column
%%%%
%%small cube
\begin{scope}[shift={(4.15,0)}]
%big cube
\begin{scope}
\FillCube{5VD}{0.8}{3}{2}
\end{scope}
%%small cube
\begin{scope}[shift={(-0.10,1.25)}]
\SmallCube{5MD}{0.4}{3}{0.6}
%%
\draw[LineR](A\nc)-- (B\nc)--node[left,text=black]{3}
(C\nc)--(D\nc)-- (A\nc)
(A\nc)--(E\nc)--(H\nc)--(G\nc)--node[left,text=black]{3}(C\nc)
(D\nc)-- (H\nc);
%
\def\nc{5VD}
\draw[LineG](A\nc)--node[below,text=black]{192} (B\nc)--
(C\nc)--(D\nc)--node[right,text=black,text opacity=1]{13} (A\nc)
(A\nc)--(E\nc)--(H\nc)--(G\nc)--(C\nc)
(D\nc)--node[right,text=black,text opacity=1]{13} (H\nc);
\end{scope}
\end{scope}
%%Above
\begin{scope}[shift={(4.15,3.5)}]
%big cube
\begin{scope}
\FillCube{5VG}{0.8}{3}{2}
\end{scope}
%%small cube
\begin{scope}[shift={(-0.08,0.28)}]
\SmallCube{5MG}{0.4}{3}{0.6}
%%
\draw[LineR](A\nc)-- (B\nc)--node[left,text=black]{3}
(C\nc)--(D\nc)-- (A\nc)
(A\nc)--(E\nc)--(H\nc)--(G\nc)--node[left,text=black]{3}(C\nc)
(D\nc)-- (H\nc);
%
\def\nc{5VG}
\draw[LineG](A\nc)--node[below,text=black]{192} (B\nc)--
(C\nc)--(D\nc)--node[right,text=black,text opacity=1]{} (A\nc)
(A\nc)--(E\nc)--(H\nc)--(G\nc)--(C\nc)
(D\nc)--node[right,text=black,text opacity=1]{} (H\nc);
\end{scope}
\end{scope}
%%%%%%%%%%%%%%%%%%%%%%%
%%3 column
%%%%%%%%%%%%%%%%%%%%%%%
\begin{scope}[shift={(-3.75,-0.5)}]
%big cube
\begin{scope}
\FillCube{3VD}{1.5}{2.33}{3}
\end{scope}
%%small cube-down
\begin{scope}[shift={(-0.10,0.45)}]
\SmallCube{3MDI}{0.4}{2.33}{0.6}
%%
\draw[LineR](A\nc)-- (B\nc)--node[left,text=black]{3}
(C\nc)--(D\nc)-- (A\nc)
(A\nc)--(E\nc)--(H\nc)--(G\nc)--node[left,text=black]{3}(C\nc)
(D\nc)-- (H\nc);
%
\end{scope}
%%small cube - up
\begin{scope}[shift={(-0.12,2.23)}]
\SmallCube{3MDII}{0.4}{2.33}{0.6}
%%
\draw[LineR](A\nc)-- (B\nc)--node[left,text=black]{3}
(C\nc)--(D\nc)-- (A\nc)
(A\nc)--(E\nc)--(H\nc)--(G\nc)--node[left,text=black]{3}(C\nc)
(D\nc)-- (H\nc);
%
\def\nc{3VD}
\draw[LineG](A\nc)--node[below,text=black]{128} (B\nc)--
(C\nc)--(D\nc)--node[right,text=black,text opacity=1,pos=0.4]{27} (A\nc)
(A\nc)--(E\nc)--(H\nc)--(G\nc)--(C\nc)
(D\nc)--node[right,text=black,text opacity=1]{27} (H\nc);
\end{scope}
\end{scope}
%%Above
\begin{scope}[shift={(-3.75,3.5)}]
%big cube
\begin{scope}
\FillCube{3VG}{1.5}{2.33}{3}
\end{scope}
%%small cube-down
\begin{scope}[shift={(-0.42,0.75)}]
\SmallCube{3MGI}{0.4}{2.33}{0.6}
%%
\draw[LineR](A\nc)-- (B\nc)--node[left,text=black]{}
(C\nc)--(D\nc)-- (A\nc)
(A\nc)--(E\nc)--(H\nc)--(G\nc)--node[left,text=black]{3}(C\nc)
(D\nc)-- (H\nc);
%
\def\nc{3VG}
\draw[GreenLine,line width=0.75pt](A\nc)--node[below,text=black]{128} (B\nc)--
(C\nc)--(D\nc)--node[right,text=black,text opacity=1]{} (A\nc)
(A\nc)--(E\nc)--(H\nc)--(G\nc)--(C\nc)
(D\nc)--node[right,text=black,text opacity=1]{} (H\nc);
\end{scope}
%%small cube-up
\begin{scope}[shift={(-0.06,0.18)}]
\SmallCube{3MGII}{0.4}{2.33}{0.6}
%%
\draw[LineR](A\nc)-- (B\nc)--node[left,text=black]{3}
(C\nc)--(D\nc)-- (A\nc)
(A\nc)--(E\nc)--(H\nc)--(G\nc)--node[left,text=black]{3}(C\nc)
(D\nc)-- (H\nc);
%
\def\nc{3VG}
\draw[LineG](A\nc)--node[below,text=black]{128} (B\nc)--
(C\nc)--(D\nc)--node[right,text=black,text opacity=1]{} (A\nc)
(A\nc)--(E\nc)--(H\nc)--(G\nc)--(C\nc)
(D\nc)--node[right,text=black,text opacity=1]{} (H\nc);
\end{scope}
\end{scope}
%%%%%%%%%%%%%%%%%%%%%%%
%%2 column
%%%%%%%%%%%%%%%%%%%%%%%
\begin{scope}[shift={(-6.8,-1)}]
%big cube
\begin{scope}
\FillCube{2VD}{2}{1.3}{3.8}
\end{scope}
%%small cube
\begin{scope}[shift={(-0.2,2.5)}]
\SmallCube{2MD}{0.4}{1.3}{1}
%%
\draw[LineR](A\nc)-- (B\nc)--node[left,text=black]{5}
(C\nc)--(D\nc)-- (A\nc)
(A\nc)--(E\nc)--(H\nc)--(G\nc)--node[left,text=black]{5}(C\nc)
(D\nc)-- (H\nc);
%
\def\nc{2VD}
\draw[LineG](A\nc)--node[below,text=black]{48} (B\nc)--
(C\nc)--(D\nc)--node[pos=0.6,right,text=black,text opacity=1]{55} (A\nc)
(A\nc)--(E\nc)--(H\nc)--(G\nc)--(C\nc)
(D\nc)--node[pos=0.26,right,text=black,text opacity=1]{55} (H\nc);
\end{scope}
\end{scope}
%%Above
\begin{scope}[shift={(-6.8,3.5)}]
%big cube
\begin{scope}
\FillCube{2VG}{2}{1.3}{3.8}
\end{scope}
%%small cube
\begin{scope}[shift={(-0.1,0.5)}]
\SmallCube{2MG}{0.4}{1.3}{1}
%%
\draw[LineR](A\nc)-- (B\nc)--node[left,text=black]{5}
(C\nc)--(D\nc)-- (A\nc)
(A\nc)--(E\nc)--(H\nc)--(G\nc)--node[left,text=black]{5}(C\nc)
(D\nc)-- (H\nc);
%
\def\nc{2VG}
\draw[LineG](A\nc)--node[above,text=black]{48} (B\nc)--
(C\nc)--(D\nc)--node[right,text=black,text opacity=1]{} (A\nc)
(A\nc)--(E\nc)--(H\nc)--(G\nc)--(C\nc)
(D\nc)--node[right,text=black,text opacity=1]{} (H\nc);
\end{scope}
\end{scope}
%%%%%%%%%%%%%%%%%%%%%%%
%%1 column
%%%%%%%%%%%%%%%%%%%%%%%
\begin{scope}[shift={(-9.0,-1.2)}]
%big cube
\begin{scope}
\FillCube{1VD}{2}{0.2}{4.55}
\end{scope}
%%small cube=down
\begin{scope}[shift={(-0.25,0.5)}]
\SmallCube{1MDI}{0.8}{0.15}{1.7}
%%
\draw[LineR](A\nc)-- (B\nc)--
(C\nc)--(D\nc)-- node[left=-2pt,text=black,pos=0.4]{11}(A\nc)
(A\nc)--(E\nc)--(H\nc)--(G\nc)--node[left=3pt,text=black,pos=0.9]{11}(C\nc)
(D\nc)-- (H\nc);
%
\def\nc{1VD}
\draw[LineG](A\nc)--node[below,text=black]{3} (B\nc)--
(C\nc)--(D\nc)--node[right,text=black,text opacity=1]{} (A\nc)
(A\nc)--node[below left,text=black]{224}(E\nc)--
node[left,text=black,text opacity=1]{224}(H\nc)--(G\nc)--(C\nc)
(D\nc)-- (H\nc);
\end{scope}
%%small cube=up
\begin{scope}[shift={(-0.75,3.4)}]
\SmallCube{1MDII}{0.8}{0.15}{1.7}
%%
\draw[LineR](A\nc)-- (B\nc)--
(C\nc)--(D\nc)-- node[left=-2pt,text=black,pos=0.4]{11}(A\nc)
(A\nc)--(E\nc)--(H\nc)--(G\nc)--node[left=3pt,text=black,pos=0.9]{11}(C\nc)
(D\nc)-- (H\nc);
%
\def\nc{1VD}
\draw[LineG](A\nc)--node[below,text=black]{3} (B\nc)--
(C\nc)--(D\nc)--node[right,text=black,text opacity=1]{} (A\nc)
(A\nc)--node[below left,text=black]{224}(E\nc)--
node[left,text=black,text opacity=1]{224}(H\nc)--(G\nc)--(C\nc)
(D\nc)-- (H\nc);
\end{scope}
\end{scope}
%%%%
\begin{scope}[shift={(8.15,0)}]
\begin{scope}
\FillCube{6VD}{0.8}{2.0}{2}
\path(A6VD)--node[below]{128}(B6VD);
\path(A6VD)--node[right]{13}(D6VD);
\path(D6VD)--node[right]{13}(H6VD);
\end{scope}
%up
\begin{scope}[shift={(0,3.5)}]
\FillCube{6VG}{0.8}{2.0}{2}
\path(A6VG)--node[below]{128}(B6VG);
\end{scope}
\end{scope}

\newcommand\Boxx[3]{\node[draw,LineG,fill=green!10,rectangle,minimum width=7mm,minimum height=#2](#1){};
\node[below=2pt of #1]{#3};
}
\begin{scope}[shift={(11.7,1.0)}]
 \Boxx{B1D}{35mm}{2048}
\end{scope}
\begin{scope}[shift={(11.7,5.25)}]
 \Boxx{B1G}{35mm}{2048}
\end{scope}
\begin{scope}[shift={(13.5,1.0)}]
 \Boxx{B2D}{35mm}{2048}
\end{scope}
\begin{scope}[shift={(13.5,5.25)}]
 \Boxx{B2G}{35mm}{2048}
\end{scope}
\begin{scope}[shift={(15.0,1.0)}]
 \Boxx{B3}{19mm}{1000}
\end{scope}
%%%
\node[right=3pt of B1VD,align=center]{Stride\ of 4};
\node[right=3pt of B2VD,align=center]{Max\ pooling};
\node[right=3pt of B3VD,align=center]{Max\ pooling};
\node[align=right,anchor= east]at(B1D.south west){Max pooling};
%
\coordinate(1C2)at($(A2VD)!0.4!(D2VD)$);
\foreach\i in{B,C,G}{
\draw[LineD](\i 1MDI)--(1C2);
}
\coordinate(2C2)at($(E2VG)!0.2!(H2VG)$);
\foreach\i in{B,C,G}{
\draw[LineD](\i 1MDII)--(2C2);
}
%3
\coordinate(1C3)at($(A3VD)!0.55!(H3VD)$);
\foreach\i in{B,C,G}{
\draw[LineD](\i 2MD)--(1C3);
}
\coordinate(2C3)at($(A3MGI)!0.35!(D3MGI)$);
\foreach\i in{B,C,G}{
\draw[LineD](\i 2MG)--(2C3);
}
%4
\coordinate(1C4)at($(A4VG)!0.15!(D4VG)$);
\foreach\i in{B,C,G}{
\draw[LineD](\i 3MGI)--(1C4);
}
\coordinate(2C4)at($(G4MD)!0.15!(H4MD)$);
\foreach\i in{B,C,G}{
\draw[LineD](\i 3MGII)--(2C4);
}
\coordinate(3C4)at($(A4MG)!0.5!(C4MG)$);
\foreach\i in{B,C,G}{
\draw[LineD](\i 3MDII)--(3C4);
}
\coordinate(3C4)at($(A4VD)!0.12!(D4VD)$);
\foreach\i in{B,C,G}{
\draw[LineD](\i 3MDI)--(3C4);
}
%5
\coordinate(1C5)at($(A5MG)!0.82!(H5MG)$);
\foreach\i in{B,C,G}{
\draw[LineD](\i 4MG)--(1C5);
}
\coordinate(2C5)at($(A5VD)!0.52!(C5VD)$);
\foreach\i in{B,C,G}{
\draw[LineD](\i 4MD)--(2C5);
}
%6
\coordinate(1C6)at($(A6VG)!0.52!(C6VG)$);
\foreach\i in{B,C,G}{
\draw[LineD](\i 5MG)--(1C6);
}
\coordinate(1C6)at($(D6VD)!0.3!(B6VD)$);
\foreach\i in{B,C,G}{
\draw[LineD](\i 5MD)--(1C6);
}
%
\draw[LineA]($(B6VD)!0.52!(C6VD)$)coordinate(X1)--
node[below]{dense}(X1-|B1D.north west);
\draw[LineA](B1D)--node[below]{dense}(B2D);
\draw[LineA](B2D)--(B3);
%
\draw[LineA]($(B6VG)!0.52!(C6VG)$)coordinate(X1)--(X1-|B1G.north west);
\draw[LineA]($(B6VG)!0.52!(C6VG)$)--(B1D);
\draw[LineA]($(B6VD)!0.52!(C6VD)$)--(B1G);
\draw[LineA](B1D)--(B2G);
\draw[LineA](B1G)--(B2D);
\draw[LineA](B2G)--node[right]{dense}(B3);
\draw[LineA]($(B1G.north east)!0.7!(B1G.south east)$)--($(B2G.north west)!0.7!(B2G.south west)$);
\end{tikzpicture}
Figure 2: AlexNet Architecture: The network that launched the deep learning revolution at ImageNet 2012 (Krizhevsky et al. 2012). Two parallel GPU streams process \(224{\times}224\) input images through convolutional layers (green blocks) that extract spatial features at decreasing resolutions, converging through three fully connected layers to 1,000 output classes. With 60 million parameters trained across two GTX 580 GPUs, AlexNet achieved 15.3 percent top-5 error, a 41.6 percent relative improvement over the second-place entry.

Hardware still shaped what could be learned. With only 3 GB of Video Random-Access Memory (VRAM) per GTX 580, AlexNet divided convolutional and dense layers between two GPU streams. This early model-parallel design foreshadowed modern multi-GPU training. Deep learning reduced the need for hand-crafted features, but it moved the binding constraint to the infrastructure required to store data, move parameters, and coordinate computation.

Deep learning effectively traded the feature engineering bottleneck for a new compute bottleneck. Models like GPT-3 (175 billion parameters) illustrate the scale of this new challenge. Brown et al. (2020) report training on about 300 billion tokens from filtered web text, books, and Wikipedia. Using the book’s dense-training approximation, that parameter-token scale implies roughly 314 zettaFLOPs of compute (\(1\text{ zettaFLOP} = 10^{21}\text{ FLOPs}\)). The token dataset itself occupies roughly 420 GB. Because the original paper does not specify the exact hardware cluster, translating this into accelerator-years serves as an illustrative systems estimate rather than a recorded benchmark. The primary engineering challenge shifted from describing a cat’s ear to coordinating large-scale distributed training without failure.

Each major transition in AI history traces back to a shifting physical constraint rather than algorithmic invention alone. Table 2 compares the four major eras across their core reasoning strengths, binding systems bottlenecks, and operational data requirements.

Table 2: AI Paradigm Evolution: Each era is defined by the systems bottleneck that constrained it. Deep learning (far right) overcame the Feature Engineering bottleneck but introduced new infrastructure challenges, necessitating modern ML systems engineering.
Aspect Symbolic AI Expert Systems Statistical Learning Deep Learning
Key Strength Logical reasoning Domain expertise Versatility Pattern recognition
Bottleneck Brittleness (Rules break) Knowledge Entry (Experts are scarce) Feature Engineering (Manual preprocessing) Compute & Data Scale (Infrastructure cost)
Data Handling Minimal data needed Domain knowledge-based Moderate data required Massive data processing
Self-Check: Question

  1. Which historical transition correctly pairs an AI era with the primary systems bottleneck that limited its scalability and forced the transition to the subsequent paradigm?

    1. Symbolic AI was limited by compute throughput, forcing the transition to expert systems; Deep Learning was limited by human rule maintenance, forcing the transition to statistical learning.
    2. Expert Systems were limited by GPU memory bandwidth, forcing the transition to statistical learning; Statistical Learning was limited by formal logic ambiguity, forcing the transition to deep learning.
    3. Statistical Learning was limited by a complete lack of training labels, forcing the transition to symbolic logic; Symbolic AI was limited by hardware integer arithmetic, forcing the transition to neural networks.
    4. Expert Systems were limited by the knowledge acquisition bottleneck (serial human expert elicitation bandwidth), forcing the transition to statistical learning; Statistical Learning was limited by the feature engineering bottleneck (manual extraction of hand-crafted representations), forcing the transition to deep learning.

  2. Moravec’s paradox observes that tasks humans find easy (such as visual perception, walking, and grasping) require vast computational resources, while tasks humans find hard (such as playing chess or solving algebra) require comparatively little compute. What is the direct implication of this paradox for ML systems hardware?

    1. Symbolic reasoning algorithms require multi-GPU accelerator clusters, whereas computer vision pipelines run efficiently on single-threaded CPUs.
    2. High-level reasoning tasks saturate off-chip memory bandwidth, while low-level perceptual tasks are strictly compute-bound.
    3. Perceptual and physical-world AI tasks demand massive parallelism, high memory bandwidth, and specialized hardware accelerators to process dense, high-dimensional sensor streams in real time.
    4. Robotic perception models can be deployed on microcontrollers without model compression or accuracy degradation.

  3. Place the four historical AI engineering eras in chronological order based on when their primary paradigm dominated, and identify the key bottleneck that constrained each era:

  1. Deep Learning Era
  2. Expert Systems Era
  3. Symbolic AI Era
  4. Statistical Learning Era

  1. Why was AlexNet’s 2012 ImageNet victory considered a breakthrough in systems co-design rather than purely an algorithmic advance?

  2. True or False: The Viola-Jones face detection algorithm achieved real-time execution on early-2000s CPUs by using an attentional cascade of hand-crafted rectangular features that quickly rejected over 80% of negative image sub-windows in the first two stages.

See Answers →

The Bitter Lesson

Expert systems invested engineering effort in encoding domain knowledge; deep learning systems invest that effort in absorbing more data and computation. The bitter lesson captures the historical pattern in which general methods that use increasing computation consistently outperform approaches that encode human expertise. Richard Sutton15 crystallized this insight in his 2019 essay “The Bitter Lesson” (Sutton 2019). Sutton wrote, “The biggest lesson that can be read from 70 years of AI research is that general methods that leverage computation are ultimately the most effective, and by a large margin.”

15 Richard Sutton: A reinforcement learning pioneer whose 2019 essay crystallized the pattern traced in section 1.2: from symbolic AI through expert systems to deep learning, general methods using computation consistently outperformed hand-engineered expertise. The lesson is “bitter” because it implies that domain-specific logic is a depreciating asset, while the durable advantage belongs to systems engineering that can absorb the billion-fold increase in raw compute since the 1970s.

Sutton, Richard S. 2019. “The Bitter Lesson.” Incompleteideas.net 43.

Table 3 pairs representative benchmark milestones with their hardware substrates. Its final column traces the progression from single-threaded CPU rule evaluation to multi-thousand-accelerator clusters, using 2.5 million reference GPU-days as an illustrative frontier-training anchor (Patel and Wong 2023).

Table 3: AI Performance Evolution Across Paradigms: Representative systems illustrate the growth in computational scale across eras. GPT-4 training details are estimated reference anchors rather than official disclosures.
Era Approach Representative Task Performance Computational Resources
Expert Systems (1980s) Hand-crafted rules Chess (Elo rating) System-dependent Minimal (rule evaluation)
Statistical ML (1990s–2000s) Feature engineering + learning Handwritten digit recognition about 98–99% on MNIST-era benchmarks (LeCun et al. 1998) CPU-era feature pipelines; resources varied by implementation
Deep Learning (2012) End-to-end neural networks ImageNet top-5 accuracy 84.7% (AlexNet) 6 days on 2 GPUs
Modern Deep Learning (2020+) Large-scale transformers ImageNet top-1 accuracy 88.55% (ViT-H/14) (Dosovitskiy et al. 2021) Large-scale Tensor Processing Unit (TPU) pretraining
Modern Deep Learning (2023) Foundation models MMLU benchmark 86.4% (GPT-4) (OpenAI et al. 2023) Estimated ~2.5 million reference GPU-days (on the order of 25,000 reference GPUs run for 90 days) (Patel and Wong 2023)
LeCun, Yann, Léon Bottou, Yoshua Bengio, and Patrick Haffner. 1998. “Gradient-Based Learning Applied to Document Recognition.” Proceedings of the IEEE 86 (11): 2278–324. https://doi.org/10.1109/5.726791.
OpenAI, Josh Achiam, Steven Adler, Sandhini Agarwal, Lama Ahmad, Ilge Akkaya, Florencia Leoni Aleman, et al. 2023. “GPT-4 Technical Report.” arXiv Preprint arXiv:2303.08774, ahead of print. https://doi.org/10.48550/arXiv.2303.08774.
Patel, Dylan, and Gerald Wong. 2023. GPT-4 Architecture, Infrastructure, Training Dataset, Costs, Vision, MoE. SemiAnalysis Blog.

ImageNet top-5 accuracy and Massive Multitask Language Understanding (MMLU) (Benchmarking) measure distinct capabilities, but share a systems trajectory. Hardware scale expanded from single-node CPU execution to multi-megawatt clusters, corroborating Sutton’s observation that methods designed to use raw computation consistently outpace hand-tuned representations.

The principle finds further validation across AI breakthroughs. In chess, IBM’s Deep Blue defeated world champion Garry Kasparov16 in 1997 by combining custom chess hardware, large-scale search, and chess-specific evaluation knowledge. Its evaluation function encoded human chess heuristics, but the scale of search enabled by custom silicon was central to turning that knowledge into championship-level play. In Go, DeepMind’s AlphaGo17 (Silver et al. 2016) achieved superhuman performance by combining supervised learning from expert games with reinforcement learning through self-play and neural-network-guided tree search, rather than relying on hand-coded Go strategy.

16 Deep Blue: IBM’s chess system (Campbell et al. 2002) defeated World Champion Garry Kasparov in 1997 through a systems combination: search at roughly 200 million positions per second on 480 custom chess processors, plus chess-specific evaluation and knowledge. Deep Blue was an early public demonstration that purpose-built silicon could amplify search and encoded domain knowledge, foreshadowing the domain-specific accelerator strategy that defines modern ML hardware.

Campbell, Murray, Jr. Hoane A.Joseph, and Feng-hsiung Hsu. 2002. “Deep Blue.” Artificial Intelligence 134 (1-2): 57–83. https://doi.org/10.1016/s0004-3702(01)00129-1.

17 AlphaGo: AlphaGo first learned from human expert games, then improved through reinforcement learning from self-play, trading hand-coded Go strategy for a data-and-compute pipeline that could explore the problem space at massive computational scale. After three days of self-play training, AlphaGo Zero surpassed the original AlphaGo, winning 100 games to 0 (Silver et al. 2017).

Silver, David, Julian Schrittwieser, Karen Simonyan, Ioannis Antonoglou, Aja Huang, Arthur Guez, Thomas Hubert, et al. 2017. “Mastering the Game of Go Without Human Knowledge.” Nature 550 (7676): 354–59. https://doi.org/10.1038/nature24270.
Silver, David, Aja Huang, Chris J. Maddison, Arthur Guez, Laurent Sifre, George van den Driessche, Julian Schrittwieser, et al. 2016. “Mastering the Game of Go with Deep Neural Networks and Tree Search.” Nature 529 (7587): 484–89. https://doi.org/10.1038/nature16961.

The lesson is “bitter” because our intuition misleads us. We naturally assume that encoding human expertise should be the path to artificial intelligence. Yet repeatedly, systems that use computation to learn from data outperform systems that rely on human knowledge given sufficient scale. The pattern has held across symbolic AI, statistical learning, and deep learning eras.

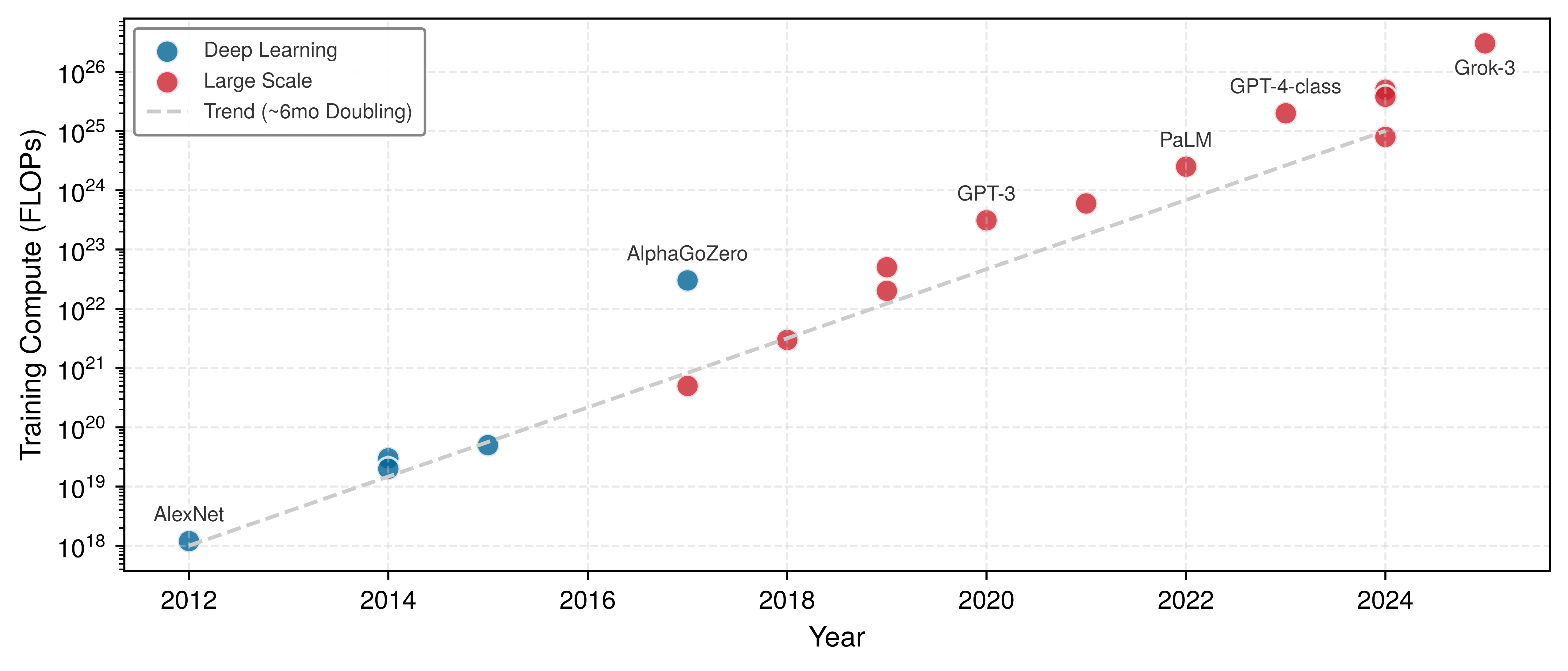

Modern language models like GPT-4 and image generation systems like DALL-E illustrate this principle directly. Their capabilities emerge not from linguistic or artistic theories encoded by humans but from training general-purpose neural networks on vast amounts of data using substantial computational resources. Estimates for models at GPT-3’s scale suggest roughly 1.3 GWh of energy18 (Patterson et al. 2021), and serving these models to millions of users turns inference into a continuous data-center power, cooling, and capacity-planning problem.

18 GPT-3 (Generative Pre-trained Transformer 3) training energy: Patterson et al. (2021) estimated GPT-3’s single training run consumed approximately 1,287 MWh and emitted 552 tonnes of CO2-equivalent, roughly the annual electricity of 120 average US households using a 10.7 MWh/household-year baseline. The energy cost is shaped not only by arithmetic but also by data movement through the memory hierarchy; moving data across memory levels can cost orders of magnitude more energy than local arithmetic (Horowitz 2014).

Patterson, David, Joseph Gonzalez, Quoc Le, Chen Liang, Lluis-Miquel Munguia, Daniel Rothchild, David So, Maud Texier, and Jeff Dean. 2021. “Carbon Emissions and Large Neural Network Training.” arXiv Preprint arXiv:2104.10350.
Horowitz, Mark. 2014. “1.1 Computing’s Energy Problem (and What We Can Do about It).” 2014 IEEE International Solid-State Circuits Conference Digest of Technical Papers (ISSCC), 10–14. https://doi.org/10.1109/isscc.2014.6757323.

19 Memory bandwidth: The rate at which a model’s parameters move from memory to the processor. The gigawatt-hour-scale energy consumed by GPT-scale training is shaped not only by computation but also by the physically expensive process of fetching billions of weights through the memory hierarchy. Moving data from off-chip memory can cost one to several orders of magnitude more energy than local arithmetic, depending on precision and memory level, making bandwidth, not processor speed alone, a direct driver of the data center’s massive power draw.

The implication is that realizing the bitter lesson’s promise requires expertise in data engineering, hardware optimization, and systems coordination19 that goes far beyond algorithmic innovation. Hardware Acceleration quantifies these constraints once the necessary foundations are in place, including the memory bandwidth limits that shape system design.

The world is rushing to build AI systems, but building them is not enough. Sutton’s bitter lesson shows why. Progress depends on the data, computation, and infrastructure that make learning at scale possible. This book therefore treats the machine learning system as an engineering object: one that must be designed, deployed, evaluated, and maintained under real constraints. That broader responsibility is AI engineering, the discipline defined formally in section 1.8. Before defining the discipline, we must first define its object, beginning with a familiar production workload.

Self-Check: Question

  1. Why did Richard Sutton describe the fundamental finding of 70 years of AI research as a ‘bitter’ lesson for researchers and engineers?

    1. Human intuition naturally seeks to build intelligence by encoding domain expertise and linguistic rules into models, yet historical progress repeatedly demonstrates that general-purpose search and learning leveraging raw computation outperform hand-crafted human knowledge.
    2. Hardware accelerators have reached physical thermodynamic scaling limits, preventing further increases in neural network parameter counts.
    3. Stochastic gradient descent algorithms produce models whose internal mathematical representations cannot be formally proven correct.
    4. Open-source models consistently match the performance of proprietary industrial foundation models trained at hundred-million-dollar compute budgets.

  2. In comparing IBM’s Deep Blue (1997) and DeepMind’s AlphaGo (2016), how do their designs reflect the progression toward Sutton’s bitter lesson?

    1. Deep Blue relied entirely on deep reinforcement learning, whereas AlphaGo returned to hand-coded expert evaluation tables.
    2. Deep Blue combined custom silicon search (200 million positions/second) with hand-coded chess heuristics, whereas AlphaGo replaced hand-coded game strategy with neural networks trained via supervised learning and massive self-play tree search.
    3. Both systems avoided the use of custom silicon or GPUs, relying strictly on algorithmic elegance over compute scale.
    4. AlphaGo eliminated all tree search mechanisms in favor of pure single-step feedforward classification.

  3. If the bitter lesson states that computation-leveraging methods dominate over time, why does realizing this advantage depend primarily on systems engineering rather than pure algorithmic theory?

  4. True or False: According to the bitter lesson, building domain-specific linguistic or perceptual rules into deep neural network architectures provides a permanent, compounding advantage over general architectures as compute budgets expand.

See Answers →

Defining ML Systems

Return to the spam filter introduced in the history of statistical learning. At production scale, the same apparently simple classifier operates against global email traffic measured in hundreds of billions of sent and received messages per day (Statista Research Department 2024), and large providers must decide in milliseconds which messages deserve attention and which should be quarantined.

Statista Research Department. 2024. Number of Sent and Received e-Mails Per Day Worldwide from 2017 to 2027. Statista.

This deceptively simple task reveals what distinguishes machine learning systems from traditional software. The challenge begins with data. The filter trains on millions of labeled examples and must keep adapting as spammers evolve their tactics, rather than relying on programmers to encode every spam pattern manually. It then becomes an algorithmic problem, because the model must generalize from those examples to messages it has never seen before while balancing precision against recall so legitimate email is not hidden. Finally, the same decision becomes an infrastructure problem. Providers must process billions of emails daily, store and update models as spam evolves, and serve predictions with sub-100 ms latency across horizontally scaled data centers. The classifier is therefore only one component of a changing data, software, and infrastructure system. That observation gives us the object this book studies.

When a new phishing template appears, the data layer must capture representative messages, the algorithm must separate attacks from legitimate mail, and the machine must distribute updated parameters before delivery. Any layer can fail while the others continue working, so the full chain from measurement through learning to execution is the right unit of analysis.

Definition 1.1: Machine learning systems

Machine learning systems are software systems whose core behavior is determined by parameters learned from data rather than explicitly programmed rules, making performance a function of data quality, algorithm choice, and hardware capacity simultaneously.

  1. Significance: Requirements are end to end. A spam filter is useful only when its training data represents current attacks, its model separates malicious from legitimate mail, and its serving path classifies each message within the delivery budget. Failure in any layer changes the user-visible result.
  2. Distinction: Unlike traditional software, an ML system’s accuracy can change when the world changes even if its code and weights do not. The production input distribution may move relative to what the model learned, silently changing performance without an error or exception.
  3. Common pitfall: The model is not the system. Data pipelines, feature transformations, serving infrastructure, monitoring, and feedback loops surround the learned parameters and often dominate the engineering burden (Sculley et al. 2015).
Sculley, D., Gary Holt, Daniel Golovin, Eugene Davydov, Todd Phillips, Dietmar Ebner, Vinay Chaudhary, Michael Young, Jean-François Crespo, and Dan Dennison. 2015. “Hidden Technical Debt in Machine Learning Systems.” Advances in Neural Information Processing Systems (NeurIPS) 28: 2503–11.

The definition exposes three diagnostic axes: the data that describes the task, the algorithm that turns those examples into behavior, and the machine that executes that behavior within the operating budget. The D·A·M taxonomy gives those axes a reusable form.

The same user-visible symptom can originate in any of the three. A missed phishing message may mean that representative examples were absent, that the learned decision boundary was inadequate, or that the serving path missed its latency budget. Treating every miss as a model problem risks improving the wrong component. A useful systems taxonomy must separate these causes without pretending that they are independent.

Each explanation calls for different evidence. The data hypothesis sends the engineer to coverage, labels, and distribution shift. The algorithm hypothesis sends the engineer to error slices, model capacity, and the learning objective. The machine hypothesis sends the engineer to latency, throughput, memory, and utilization. These investigations are not interchangeable. Faster hardware cannot supply examples that were never collected, while a larger dataset cannot repair a serving path that misses its deadline because memory is saturated.

The relevant constraint is the one whose relaxation improves the end-to-end result. This idea of a binding constraint prevents teams from optimizing the most visible component instead of the component that governs the outcome. The purpose of D·A·M is therefore operational: it identifies the next hypothesis to test and the class of intervention capable of changing system behavior. The diagnosis is provisional. Once an intervention relaxes one limit, the system must be measured again because a different axis may now bind. D·A·M is a loop, not a one-time label.

At first pass, D·A·M is a three-part mental model. Data supplies evidence, Algorithm turns it into behavior, and Machine executes it within the operating budget. The axes describe the system as a whole, not isolated pipeline stages.

Definition 1.2: The D·A·M taxonomy

D·A·M taxonomy is a diagnostic framework that classifies any machine learning system performance bottleneck along three axes. Data determines what examples and bytes the system must process, Algorithm determines the model structure and work required to learn or predict, and Machine determines the hardware capacity available to execute that work. The goal is to identify which axis is the binding constraint.

  1. Significance: The diagnostic power is concrete even before detailed hardware arithmetic enters the story. If the spam filter misses a new phishing campaign because the training set never contained that tactic, the binding axis is Data. If the training examples are adequate but the model cannot express the pattern, the binding axis is Algorithm. If both are adequate but the service cannot classify messages quickly enough during a traffic spike, the binding axis is Machine. Quantitative diagnosis begins by asking which axis is limiting the system.
  2. Distinction: Unlike traditional software performance analysis, which treats code and data as separate concerns, the D·A·M taxonomy recognizes that algorithm choice directly determines both the training dataset size required (a transformer needs orders of magnitude more data than a linear model to generalize) and the machine required to run it.
  3. Common pitfall: A frequent misconception is that the three axes are independent. Changing from a simple classifier to a larger model can require more memory, different serving infrastructure, and a broader data distribution. The axes move together.

Figure 3 turns the definition into a first-pass map.

\scalebox{0.85}{
\begin{tikzpicture}[line join=round,font=\sffamily\small]
\tikzset{
 Line/.style={line width=0.35pt,black!50,text=black},
 ALineA/.style={violet!80!black!50,line width=3pt,shorten <=2pt,shorten >=2pt,
  {Triangle[width=1.1*6pt,length=0.8*6pt]}-{Triangle[width=1.1*6pt,length=0.8*6pt]}},
LineD/.style={line width=0.75pt,black!50,text=black,dashed,dash pattern=on 5pt off 3pt},
Circle/.style={inner xsep=2pt,
  circle,
    draw=BrownLine,
    line width=0.75pt,
    fill=BrownL!40,
    minimum size=16mm
  },
 circles/.pic={
\pgfkeys{/channel/.cd, #1}
\node[circle,draw=\channelcolor,line width=\Linewidth,fill=\channelcolor!10,
minimum size=2.5mm](\picname){};
        }
}
\tikzset {
pics/cloud/.style = {
        code = {\colorlet{red}{RedLine}
\begin{scope}[local bounding box=CLO,scale=0.5, every node/.append style={transform shape}]
\draw[red,fill=white,line width=0.9pt](0.67,1.21)to[out=55,in=90,distance=13](1.5,0.96)
to[out=360,in=30,distance=9](1.68,0.42);
\draw[red,fill=white,line width=0.9pt](0,0)to[out=170,in=180,distance=11](0.1,0.61)
to[out=90,in=105,distance=17](1.07,0.71)
to[out=20,in=75,distance=7](1.48,0.36)
to[out=350,in=0,distance=7](1.48,0)--(0,0);
\draw[red,fill=white,line width=0.9pt](0.27,0.71)to[bend left=25](0.49,0.96);

\end{scope}
    }
  }
}
%streaming
\tikzset{%
 LineST/.style={-{Circle[\channelcolor,fill=RedLine,length=4pt]},draw=\channelcolor,line width=\Linewidth,rounded corners},
 ellipseST/.style={fill=\channelcolor,ellipse,minimum width = 2.5mm, inner sep=2pt, minimum height =1.5mm},
 BoxST/.style={line width=\Linewidth,fill=white,draw=\channelcolor,rectangle,minimum width=56,
 minimum height=16,rounded corners=1.2pt},
 pics/streaming/.style = {
        code = {\pgfkeys{/channel/.cd, #1}
\begin{scope}[local bounding box=STREAMING,scale=\scalefac, every node/.append style={transform shape}]
\node[BoxST,minimum width=44,minimum height=48](\picname-RE1){};
\foreach \i/\j in{1/north,2/center,3/south}{
\node[BoxST](\picname-GR\i)at(\picname-RE1.\j){};
\node[ellipseST]at($(\picname-GR\i.west)!0.2!(\picname-GR\i.east)$){};
\node[ellipseST]at($(\picname-GR\i.west)!0.4!(\picname-GR\i.east)$){};
}
\draw[LineST](\picname-GR3)--++(2,0)coordinate(\picname-C4);
\draw[LineST](\picname-GR3.320)--++(0,-0.7)--++(0.8,0)coordinate(\picname-C5);
\draw[LineST](\picname-GR3.220)--++(0,-0.7)--++(-0.8,0)coordinate(\picname-C6);
\draw[LineST](\picname-GR3)--++(-2,0)coordinate(\picname-C7);
 \end{scope}
     }
  }
}
%data
\tikzset{mycylinder/.style={cylinder, shape border rotate=90, aspect=1.3, draw, fill=white,
minimum width=25mm,minimum height=11mm,line width=\Linewidth,node distance=-0.15},
pics/data/.style = {
        code = {\pgfkeys{/channel/.cd, #1}
\begin{scope}[local bounding box=STREAMING,scale=\scalefac, every node/.append style={transform shape}]
\node[mycylinder,fill=\channelcolor!50] (A) {};
\node[mycylinder, above=of A,fill=\channelcolor!30] (B) {};
\node[mycylinder, above=of B,fill=\channelcolor!10] (C) {};
 \end{scope}
     }
  }
}
\pgfkeys{
  /channel/.cd,
  channelcolor/.store in=\channelcolor,
  drawchannelcolor/.store in=\drawchannelcolor,
  scalefac/.store in=\scalefac,
  Linewidth/.store in=\Linewidth,
  picname/.store in=\picname,
  channelcolor=BrownLine,
  drawchannelcolor=BrownLine,
  scalefac=1,
  Linewidth=0.5pt,
  picname=C
}
\node[Circle](MO){};
\node[Circle,below right=0.85 and 2.5 of MO,draw=GreenLine,fill=GreenL!40,](IN){};
\node[Circle,below left=0.85 and 2.5 of MO,draw=OrangeLine,fill=OrangeL!40,](DA){};
\draw[ALineA](MO)--(IN);
\draw[ALineA](MO)--(DA);
\draw[ALineA](DA)--(IN);
\node[below=2pt of MO]{Algorithm};
\node[below=2pt of IN]{Machine};
\node[below=2pt of DA]{Data};
%%
\begin{scope}[local bounding box=CIRCLE1,shift={($(MO)+(0.04,-0.24)$)},
scale=0.55, every node/.append style={transform shape}]
%1 column
\foreach \j in {1,2,3} {
  \pgfmathsetmacro{\y}{(1.5-\j)*0.43 + 0.7}
  \pic at (-0.8,\y) {circles={channelcolor=RedLine,picname=1CD\j}};
}
%2 column
\foreach \i in {1,...,4} {
  \pgfmathsetmacro{\y}{(2-\i)*0.43+0.7}
  \pic at (0,\y) {circles={channelcolor=RedLine, picname=2CD\i}};
}
%3 column
\foreach \j in {1,2} {
  \pgfmathsetmacro{\y}{(1-\j)*0.43 + 0.7}
  \pic at (0.8,\y) {circles={channelcolor=RedLine,picname=3CD\j}};
}
\foreach \i in {1,2,3}{
  \foreach \j in {1,2,3,4}{
\draw[Line](1CD\i)--(2CD\j);
}}
\foreach \i in {1,2,3,4}{
  \foreach \j in {1,2}{
\draw[Line](2CD\i)--(3CD\j);
}}
\end{scope}
%
\pic[shift={(-0.4,-0.08)}] at (IN) {cloud};
%
\pic[shift={(-0.05,-0.13)}] at  (IN){streaming={scalefac=0.25,picname=2,channelcolor=RedLine, Linewidth=0.65pt}};
%
\pic[shift={(0,-0.3)}] at  (DA){data={scalefac=0.3,picname=1,channelcolor=green!70!black, Linewidth=0.4pt}};
\end{tikzpicture}}
Figure 3: The D·A·M Axis Triad: Data, Algorithm, and Machine are three interdependent parts of an ML system. The bidirectional links emphasize that changing one part can change the requirements imposed on the other two.

The triangle provides the first diagnostic pass. It converts a visible outcome into three measurement paths: inspect the evidence, characterize the work, and measure the execution. Each path demands different evidence. Coverage and distribution measurements probe Data, error patterns and operation counts probe Algorithm, and latency, bandwidth, and utilization probe Machine. The diagnostic process begins with an end-to-end result, such as accuracy, latency, throughput, or cost, and tests each path rather than assuming that the component nearest the symptom is responsible. A diagnosis earns confidence only when relaxing its candidate constraint improves the full-system result. The arrows matter because an intervention at one vertex can move the bottleneck to another.

The triangle deliberately suppresses those interactions to keep the first diagnosis simple. Once a candidate axis is identified, the next step is to trace what that constraint depends on and what it constrains. Real systems rarely remain at one vertex. Data formats change memory traffic, model structure changes hardware utilization, and deployment constraints reshape both data and algorithm choices. Figure 4 expands the triangle into the richer design space created by these intersections.

\begin{tikzpicture}[line join=round,outer sep=0pt,inner sep=3pt]
\tikzset{%
  TxtC/.style={font=\sffamily\bfseries\small,text=datacol,align=center},
  TxtIT/.style={font=\sffamily\itshape\fontsize{8}{11}\selectfont,text=black!70,align=center},
  TxtSM/.style={font=\fontsize{7}{9}\selectfont\sffamily,text=black,align=center},
  TxtJM/.style={font=\fontsize{6}{8}\selectfont\sffamily\itshape,text=black!70,align=center},
   TxtCOL/.style={font=\fontsize{8}{11}\selectfont\sffamily,text=violet!70!black,align=center},
  LineA/.style={black!50,line width=1.0pt,{Circle[black!70,length=3.5pt]}-},
    Box/.style={align=flush center,
    inner xsep=3pt,
    node distance=0.54,
    draw=mybrown,
    line width=0.75pt,
    fill=mybrown!05,
    font=\fontsize{7}{9}\selectfont\sffamily,
    text width=41mm,
    minimum width=41mm, %minimum height=28mm
  },
}
%------------------------------------------------
% Colors
%------------------------------------------------
\definecolor{datacol}{RGB}{173,32,52}      % tamno crvena
\definecolor{algocol}{RGB}{0,82,170}       % plava
\definecolor{machcol}{RGB}{36,145,85}      % zelena
\definecolor{mutecol}{RGB}{90,90,90}       % siva za sitan tekst
\definecolor{lightdat}{RGB}{244,226,229}
\definecolor{lightalg}{RGB}{225,234,245}
\definecolor{lightmach}{RGB}{226,242,232}
%------------------------------------------------
% Centri krugova
%------------------------------------------------
\coordinate (D) at (0,2.6);
\coordinate (A) at (-2.02,-0.55);
\coordinate (M) at (2.02,-0.55);

\def\R{3.35}

%------------------------------------------------
% Circles
%------------------------------------------------
\fill[lightdat,opacity=0.55] (D) circle (\R);
\fill[lightalg,opacity=0.55] (A) circle (\R);
\fill[lightmach,opacity=0.55] (M) circle (\R);

\draw[datacol,line width=0.9pt] (D) circle (\R);
\draw[algocol,line width=0.9pt] (A) circle (\R);
\draw[machcol,line width=0.9pt] (M) circle (\R);
%------------------------------------------------
% Gornji krug: Data
%------------------------------------------------
\node[TxtC,text=datacol](DA) at (0,5.15) {Data};
\node[TxtIT,below=0pt of DA](TFI) {The Fuel --- Information};
\node[TxtSM,below=0pt of TFI](STO) {Storage formats, data quality\\Distribution properties, labeling};
\node[TxtJM,below=0pt of STO](CH1) {Ch: Data Engineering};
%------------------------------------------------
% Levi krug: Algorithm
%------------------------------------------------
\node[TxtC,text=algocol](AL) at (-3.2,-0.8) {Algorithm};
\node[TxtIT,below=0pt of AL](TFI1) {The Blueprint --- Logic};
\node[TxtSM,below=0pt of TFI1](STO1) {Loss functions, architectures\\Optimization math, gradients};
\node[TxtJM,below=0pt of STO1](CH2) {Ch: DL Primer, DNN Arch};
%------------------------------------------------
% Desni krug: Machine
%------------------------------------------------
\node[TxtC,text=machcol] at (3.1,-0.8)(MA) {Machine};
\node[TxtIT,below=0pt of MA](TFI2) {The Engine --- Physics};
\node[TxtSM,below=0pt of TFI2](STO2) {Silicon, memory hierarchy\\Peak FLOP/s, power envelope};
\node[TxtJM,below=0pt of STO2](CH3) {Ch: Hardware Acceleration};
%------------------------------------------------
% Levi presek D ∩ A
%------------------------------------------------
\node[TxtC,text=black!75](PDA) at (-2.17,2.2) {D $\cap$ A};
\node[TxtCOL,below=0pt of PDA](WLF) {What to Learn\\ From};
\draw[LineA](WLF.150)--++(150:3.85)coordinate(TXT1);
\node[Box,anchor = south]at(TXT1){Data selection, curriculum learning\\
Active learning, augmentation\\Compute-optimal scaling
\\[1ex]{\sffamily\itshape\fontsize{6}{8}\selectfont \textcolor{black!80}{Ch: Data Selection, Training}}};
%------------------------------------------------
% Desni presek D ∩ M
%------------------------------------------------
\node[TxtC,text=black!75] at (1.95,2.45)(PDM) {D $\cap$ M};
\node[TxtCOL,below=0pt of PDM](HMI) {How to Move\\ Information};
\draw[LineA](HMI.20)--++(30:3.85)coordinate(TXT1);
\node[Box,anchor = south]at(TXT1){I/O bandwidth, prefetching\\
Memory hierarchy, data formats\\Data Gravity, Energy-Movement
\\[1ex]{\sffamily\itshape\fontsize{6}{8}\selectfont \textcolor{black!80}{Ch: Data Eng, HW Accel}}};
%------------------------------------------------
% Donji presek A ∩ M
%------------------------------------------------
\node[TxtC,text=black!75](PAM) at (0,-1.2) {A $\cap$ M};
\node[TxtCOL,below=0pt of PAM](HEE) {How to Execute\\ Efficiently};
\draw[LineA](HEE.260)--++(270:1.9)coordinate(TXT1);
\node[Box,anchor = north]at(TXT1){Quantization, pruning, kernel fusion\\
Comp. graphs, mixed precision\\Operator scheduling, Tensor Cores
\\[1ex]{\sffamily\itshape\fontsize{6}{8}\selectfont \textcolor{black!80}{Ch: Frameworks, Model Compression}}};
%------------------------------------------------
% Centralni presek D ∩ A ∩ M
%------------------------------------------------
\node[TxtC,text=datacol] at (0,0.8) (DAM){D $\cap$ A $\cap$ M};
\node[TxtCOL,below=0pt of DAM,text=datacol](MLS) {ML Systems\\Engineering};
\draw[LineA]([yshift=-1mm]MLS.260)--++(170:6.2)coordinate(TXT1);
\node[Box,anchor = east,    text width=25mm,
    minimum width=25mm,]at(TXT1){Iron Law - Roofline\\Training - Serving};
%------------------------------------------------
% Donja linija i fusnota
%------------------------------------------------
\draw[gray!55,line width=0.5pt] (-6.3,-5.85) -- (6.3,-5.85);

\node[align=center,font=\sffamily \fontsize{7}{10}\selectfont,text=black!70] at (0,-6.125)
  {The center --- where Data, Algorithm, and Machine converge --- is ML Systems Engineering itself.};
\end{tikzpicture}
Figure 4: The D·A·M Intersection Landscape: Data, Algorithm, and Machine begin as distinct diagnostic lenses, but practical ML systems live at their boundaries. Pairwise intersections ask what a system can learn from, how information moves, and how computation executes efficiently. Their center is ML systems engineering, where all three constraints must be balanced together.

Read the Venn diagram from the outer regions inward. Data and Algorithm determine what the system can learn from. Data and Machine determine how information moves. Algorithm and Machine determine how computation executes efficiently. At the center, all three questions must be answered together. That center is the discipline of ML systems engineering.

The overlap labels are also signposts for the chapters ahead. Several names may be unfamiliar because they denote problems the rest of the book develops in sequence. Data selection and model training develop the Data–Algorithm question. Data engineering and hardware acceleration trace the Data–Machine path. Frameworks, compression, and serving develop the Algorithm–Machine question. The figure is therefore an orientation, not a list to memorize. Later chapters turn each region into concrete measurements, design choices, and interventions.

The techniques named in the figure also show why no choice remains local: data selection changes the work presented to the algorithm, architecture changes memory and compute demand, and machine choice changes which algorithms and data paths are practical. Throughout this book, first locate the binding region, then optimize.

The D·A·M landscape provides the diagnostic lens, but building systems also requires a layered view that connects physical limits to a user-facing mission.

The four-layer hierarchy from silicon to mission

Every machine learning system analyzed in this text is constructed from four hierarchical layers, ensuring that a decision made at the silicon level is traceable to its impact on the final mission.

  1. Hardware (The Silicon). The physical foundation (The Engine) defines peak compute throughput \((R_{\text{peak}})\), memory bandwidth \((\text{BW})\), and memory capacity. Concrete hardware twins instantiate those quantities when deployment scenarios need numeric constraints.
  2. Systems (The Platforms). The integrated deployment unit (The Car) defines the operating envelope through its power budget, thermal limits, and node-level interconnects. Examples include the Training Cluster Node or the Sub-Watt Sensor Node.
  3. Workloads (The Models). The algorithmic demand (The Route) comprises the operation count \((O)\), data volume moved \((D_{\text{vol}})\), and data layout. Scenario-specific workloads, such as GPT-4 and Wake Vision (a visual wake-word dataset sized for microcontrollers), instantiate these demands for particular missions.
  4. Missions (The Scenarios). The application context (The Destination) occupies the top of the stack, where a system is deployed to solve a specific problem. A mission introduces requirements such as battery life, safety latency, or cloud cost ceilings that dictate the configuration of every layer below.

This hierarchy ensures that when we build a lab or a case study, engineers are not starting from scratch, but rather inheriting the constraints of a deployment paradigm and applying a scenario workload to a specific mission. The lifecycle discussion in section 1.8.1 pairs each recurring mission with its workload and binding constraint. This structured approach allows us to reason about the “Physics of ML” across any application domain.

Systems Perspective 1.1: The ML systems landscape: Four deployment paradigms
The machine learning systems landscape spans roughly \(10^{6}\) in computational power and \(10^{5}\) in memory capacity. Table 4 contrasts the memory, compute, and power envelopes across the four deployment paradigms that define the constraints for every subsequent chapter.

Table 4: Four Deployment Paradigms: Representative memory, compute, and power envelopes for cloud, edge, mobile, and TinyML systems, exposing the multi-order-of-magnitude span that prevents simple model reuse across tiers. Exact hardware twins and peak-rate calculations appear in the hardware chapters.
Paradigm Representative System Memory Envelope Compute Envelope Power Envelope
Cloud Data-center accelerator node Large device memory plus storage (\(\approx 10^{11}\,\text{B}\)) Highest-throughput tier (\(\approx 10^{15}\,\text{ops/s}\)) Facility-managed power
Edge Robotics or industrial gateway Local memory under deployment limits (\(\approx 10^{11}\,\text{B}\)) Local accelerator or CPU budget (\(\approx 10^{14}\,\text{ops/s}\)) Wall, vehicle, or site power
Mobile Smartphone or wearable-class SoC Shared application memory (\(\approx 10^{10}\,\text{B}\)) Phone-class neural, GPU, and CPU engines (\(\approx 10^{13}\,\text{ops/s}\)) Battery and thermal cap
TinyML Microcontroller node Kilobyte-scale memory (\(\approx 10^{6}\,\text{B}\)) Always-on sensor compute (\(\approx 10^{9}\,\text{ops/s}\)) Milliwatt-class battery budget

Reading the memory and compute columns from Cloud to TinyML shows endpoints that differ by \(10^{5}\) in memory and \(10^{6}\) in compute. This divergence is precisely why engineers cannot shrink a cloud model to run at the edge; each tier requires a fundamental redesign of the D·A·M axes.

The D·A·M taxonomy serves as a diagnostic lens throughout this text. Scale in ML systems is the relentless pursuit of the moving bottleneck. Alleviating a constraint along one axis often shifts the limitation to another. Upgrading to faster GPUs (Machine) might reveal that storage cannot feed data fast enough (Data). Collecting a massive dataset (Data) might reveal that the model lacks capacity to learn from it (Algorithm). Switching to a larger model (Algorithm) might exceed available memory (Machine). The recurring engineering task is to identify the axis that binds, intervene there, and check whether the intervention has merely created a worse bottleneck elsewhere.

The multi-order-of-magnitude span across these four paradigms is not merely a technical curiosity; it translates directly into cost. A model that fits comfortably in a data-center accelerator’s memory cannot run unchanged on a microcontroller-class device, and bridging that gap requires engineering trade-offs at every tier of the D·A·M taxonomy. Data quality, algorithmic efficiency, and hardware capability interact through the economic constraint of useful work per dollar.

Systems Perspective 1.2: Useful work per dollar
Researchers often optimize for accuracy, whereas systems engineers must optimize for useful work per dollar. Let \(O_{\text{total}}\) denote the total operations performed across all sample presentations, and let cost efficiency denote useful operations delivered per dollar. Equation 2 provides a dimensionally consistent first-order cost model: \[ \text{Compute Cost} \approx \frac{O_{\text{total}}}{\text{Useful Operations per Dollar}} \tag{2}\]

Each D·A·M axis improves this ratio differently. Better data can reduce the sample presentations needed to reach a target quality. More efficient algorithms reduce the operations required per sample, while more cost-efficient hardware increases the useful operations delivered per dollar.

Systems engineering is the art of balancing this equation. A 10 percent gain in cost efficiency can fund about 10 percent more useful operations at the same budget, but whether to spend them on more data, more training passes, or a larger model depends on the workload’s learning-curve elasticity. If error scales approximately as \(D^{-\alpha}\) for dataset size \(D\), the gain from more data is governed by \(\alpha \log(1.1)\) rather than by a universal percentage. The engineer’s job is to estimate that elasticity for the system at hand and decide whether the trade-off is economically viable.

These interactions change more than cost; they also change how failure appears. A data shortcut, model change, or hardware bottleneck can all surface as degraded behavior after deployment, often without a crash or exception.

Self-Check: Question

  1. An ML engineering team trains a 70-billion-parameter language model. When profiling the distributed cluster, they notice that accelerator compute engines remain idle for 45% of execution time waiting for batch tensors to be loaded from remote object storage over the network. Along which D·A·M axis does the primary binding constraint lie, and which intersection represents the appropriate optimization space?

    1. Machine axis; \(\text{Algorithm} \cap \text{Machine}\) (mixed precision quantization and kernel fusion)
    2. Algorithm axis; \(\text{Data} \cap \text{Algorithm}\) (curriculum learning and active data selection)
    3. Data axis; \(\text{Data} \cap \text{Machine}\) (I/O pipelining, prefetching, and storage memory hierarchy)
    4. Workload axis; \(\text{Data} \cap \text{Algorithm} \cap \text{Machine}\) (reinforcement learning from human feedback)

  2. Across the four deployment paradigms defined in the chapter (Cloud, Edge, Mobile, TinyML), approximately what orders-of-magnitude span exists between the highest tier (Cloud) and the lowest tier (TinyML) in memory capacity and compute throughput?

    1. \(10^2\) (100\(\times\)) span in memory capacity and \(10^3\) (1,000\(\times\)) span in compute throughput
    2. \(10^3\) (1,000\(\times\)) span in memory capacity and \(10^4\) (10,000\(\times\)) span in compute throughput
    3. \(10^{12}\) (one trillion\(\times\)) span in memory capacity and \(10^{15}\) span in compute throughput
    4. \(10^6\) (one million\(\times\)) span in memory capacity and \(10^7\) (ten million\(\times\)) span in compute throughput

  3. Arrange the four layers of the ML systems hierarchy from the lowest physical foundation to the highest application objective, pairing each layer with its conceptual role:

  1. Workloads
  2. Systems
  3. Missions
  4. Hardware

  1. Explain what the concept of a ‘binding constraint’ means in the D·A·M framework, and describe the risk of optimizing a non-binding axis.

  2. In the D·A·M intersection landscape, the intersection between Algorithm and Machine (\(\text{A} \cap \text{M}\)) addresses the core question of ‘How to ____’, encompassing techniques such as quantization, kernel fusion, and mixed precision.

See Answers →

ML vs. Traditional Software

The D·A·M taxonomy reveals that ML systems comprise data that guides behavior, algorithms that extract patterns, and machines that enable learning and inference.20 To see why engineering them differs from traditional software, follow that failure into production.

20 Inference: From Latin inferre (“to bring in” or “to conclude”). In ML engineering, inference refers to the deployment phase where a trained model applies learned patterns to novel inputs. The systems distinction matters because training is throughput-optimized (maximize samples/second), whereas inference is latency-optimized (minimize milliseconds/prediction). These opposing objectives demand fundamentally different hardware configurations and software stacks (see Model Serving).

Many software defects produce explicit failure modes. Applications crash, error messages propagate, and monitoring systems trigger alerts, enabling rapid diagnosis and remediation. Conventional software can also return incorrect results silently, but machine learning adds silent degradation, in which performance declines without triggering conventional error detection mechanisms. The algorithms continue executing and the machines maintain prediction serving, yet the learned behavior becomes progressively less accurate or contextually relevant.

Return to the driver-assistance systems from the opening. Conventional automotive software often exposes faults through diagnostic warnings, although it can also produce silent errors. An ML-based perception system adds a different challenge. Its accuracy in detecting pedestrians might decline from 95 percent to 85 percent over several months as seasonal changes introduce lighting conditions, clothing patterns, or weather phenomena underrepresented in training data. The vehicle continues operating, successfully detecting most pedestrians, yet the degraded performance creates safety risks that become apparent only through systematic monitoring of edge cases and comprehensive evaluation. Conventional error logging and alerting mechanisms remain silent while the system becomes measurably less safe.

The magnitude of this degradation matters in safety-critical contexts. A perception model running at 10 Hz processes 36,000 frames in one hour. A 0.1 percent false-negative rate applies only to relevant positive cases; the miss count also depends on their frequency and on temporal filtering, sensor fusion, and operational-design-domain limits. The 10-percentage-point degradation from 95 percent to 85 percent is therefore not merely an accuracy change; it changes the exposure rate of downstream control logic in precisely the edge cases where detection was already marginal.

This silent degradation manifests across all three D·A·M axes. The data distribution shifts as user behavior evolves, seasonal patterns emerge, and new edge cases appear (Gama et al. 2014; Quiñonero-Candela et al. 2009). Meanwhile, the algorithms continue making predictions based on outdated learned patterns, unaware that their training distribution no longer matches operational reality. The machines faithfully serve these increasingly inaccurate predictions at scale, amplifying the problem across every user and every query.

Because this failure mode is silent, traditional crash logs cannot detect it; quantitative signals are needed to test whether a measured distribution shift predicts performance loss. Just as hardware execution time can be decomposed into physical constituents, reliability degradation can be modeled as a function of environmental change. Here, \(\text{Accuracy}_0\) is initial accuracy at deployment, \(\mathcal{D}(P_t \lVert P_0)\) is the statistical divergence between current distribution \(P_t\) and training distribution \(P_0\), and \(\lambda\) is locally fitted sensitivity to the chosen shift measure. This relationship, stated in equation 3, is the degradation equation. It is a local diagnostic approximation that illustrates when greater distribution shift accompanies performance loss over time, not a universal prediction law. \[ \text{Accuracy}(t) \approx \text{Accuracy}_0 - \lambda \cdot \mathcal{D}(P_t \lVert P_0) \tag{3}\]

A line falling from a high initial accuracy to a lower degraded accuracy as drift increases over time, with no abrupt break.

Accuracy can decay silently as distributions drift.

This first-order linearization can capture a local trend when labeled observations support the relationship. Data drift occurs when \(P_t\) differs from \(P_0\), so predictions can become unreliable even when the code has not changed. The model can break down for large shifts, and the divergence measure \(\mathcal{D}(\cdot \lVert \cdot)\) remains deliberately general (common choices include KL divergence, total variation distance, or Wasserstein distance). Divergence alone does not determine the sign or magnitude of an accuracy change. With these limitations, the diagnostic suggests three engineering levers.

  1. Improve initial accuracy \((\text{Accuracy}_0)\). Better training, more data, and superior architectures shift the curve but not its slope.
  2. Reduce distribution sensitivity \((\lambda)\). Robust training techniques, domain adaptation, and broader training distributions flatten the degradation curve.
  3. Monitor drift and outcomes (\(\mathcal{D}(P_t \lVert P_0)\)). Divergence can trigger investigation; labeled outcomes or validated proxies determine whether retraining is warranted.

In practice, knowing when to reevaluate is as important as knowing how to train. A system can alert when \(\mathcal{D}(P_t \lVert P_0) > \tau\) and retrain when outcome evidence confirms degradation. Without drift monitoring, it is blind to changing inputs. ML Operations develops the monitoring infrastructure and alerting strategies that implement this principle.

Population-dependent performance adds a failure mode that traditional software monitoring does not cover. Dependencies and environments can change traditional systems; ML models can also degrade because the input population changes. Monitoring must therefore extend beyond uptime and error rates to input distributions and labeled outcomes. Because exhaustive testing is impossible, continuous performance evaluation becomes an architectural requirement.

The same pattern appears in a lower-stakes setting. A product recommender trained on last season’s click history might lose several percentage points under mild seasonal drift or tens of points under a severe training-serving skew, with the rate depending on the measured distribution shift and the model’s sensitivity to that shift. This degradation often stems from training-serving skew, where features computed differently between training and serving pipelines cause model performance to degrade despite unchanged code. This is a systems issue that manifests as model-quality degradation.

These failure modes reshape the entire lifecycle. Teams must monitor infrastructure health, model quality, data quality, and prediction distributions together, then update the model when evidence confirms that production behavior has shifted. Silent degradation therefore has to inform system design from data collection through inference serving.

Silent degradation addresses the first half of the dual mandate by asking whether learned behavior remains trustworthy as the world changes. The second half asks whether the machine can produce that behavior within its time, memory, energy, and cost budgets. The bitter lesson established that computational scale drives AI progress; the question now becomes how to reason quantitatively about the data movement, computation, and overhead that constitute that scale.

Self-Check: Question

  1. In the degradation equation \(\text{Accuracy}(t) \approx \text{Accuracy}_0 - \lambda \cdot \mathcal{D}(P_t \lVert P_0)\), what do the terms \(\mathcal{D}(P_t \lVert P_0)\) and \(\lambda\) represent, and which engineering lever addresses \(\lambda\)?

    1. \(\mathcal{D}(P_t \lVert P_0)\) is hardware clock jitter, \(\lambda\) is GPU temperature sensitivity, and it is addressed by dynamic voltage and frequency scaling.
    2. \(\mathcal{D}(P_t \lVert P_0)\) is statistical divergence between live production data and training data, \(\lambda\) is model sensitivity to distribution shift, and it is addressed by robust training and domain adaptation to flatten the degradation curve.
    3. \(\mathcal{D}(P_t \lVert P_0)\) is the memory bandwidth ratio, \(\lambda\) is cache miss penalty, and it is addressed by prefetching weights into on-chip memory.
    4. \(\mathcal{D}(P_t \lVert P_0)\) is training loss divergence, \(\lambda\) is the learning rate decay, and it is addressed by tuning the optimization algorithm.

  2. A production fraud detection model begins misclassifying high-risk transactions immediately after deployment. An audit reveals that the training pipeline extracted user account age in integer days, while the live inference microservice computed account age in fractional floating-point seconds. What type of systems failure does this scenario illustrate?

    1. Training-serving skew, where discrepancies in feature computation between training and serving pipelines cause silent model degradation despite bug-free code execution.
    2. Hardware memory corruption caused by unaligned tensor strides in the GPU inference runtime.
    3. Unbounded latency tax where deserialization overhead violates the service-level agreement.
    4. Concept drift caused by macroeconomic shifts in consumer purchasing behavior over multiple years.

  3. Why does the degradation equation indicate that tracking statistical data drift (\(\mathcal{D}(P_t \lVert P_0)\)) alone is necessary but not sufficient to determine whether a deployed model must be retrained?

  4. True or False: Improving the initial training accuracy (\(\text{Accuracy}_0\)) of an ML model shifts the starting point of the degradation curve upward, but does not change the model’s rate of accuracy decline (\(\lambda\)) with respect to distribution drift over time.

See Answers →

Iron Law of ML Systems

The physical cost of computational scale becomes concrete in two familiar failures. A training job stalls when storage cannot feed an accelerator; an inference path misses its deadline when model state moves too slowly through memory or across the network. Their symptoms differ, but both consume the same finite time budget through data movement, computation, and fixed overhead. The iron law of ML systems makes this shared structure explicit by decomposing total execution time \(T\) (seconds) into those three physical costs (equation 4): \[T = \underbrace{\frac{D_{\text{vol}}}{\text{BW}}}_{\text{The Data Term}} + \underbrace{\frac{O}{R_{\text{peak}} \cdot \eta_{\text{hw}}}}_{\text{The Compute Term}} + \underbrace{L_{\text{lat}}}_{\text{The Latency Term}} \tag{4}\]

This equation is the mathematical spine of this book. It decomposes the total time required for any ML task, whether training a model for weeks or serving an inference in milliseconds, into three terms that correspond directly to the physical constraints of the dual mandate introduced in The AI Systems Moment:

  1. The data term \((D_{\text{vol}}/\text{BW})\) represents the physical cost of moving bits. \(D_{\text{vol}}\) is the volume of data moved (bytes), and \(\text{BW}\) is the memory or network bandwidth (bytes/s). Whether loading terabytes from cloud storage or fetching weights from high-bandwidth memory, performance is often limited by I/O physics. Part I develops this foundation.
  2. The compute term \((O/(R_{\text{peak}} \cdot \eta_{\text{hw}}))\) represents the cost of arithmetic. \(O\) is the number of floating-point operations (FLOPs), \(R_{\text{peak}}\) is the hardware’s theoretical peak throughput (FLOP/s), and \(\eta_{\text{hw}}\) is dimensionless realized hardware utilization \((0 \le \eta_{\text{hw}} \le 1)\). Parts II and III develop this term.
  3. The latency term \((L_{\text{lat}})\) represents the irreducible “tax” of system orchestration, networking, and serialization (seconds). This fixed latency dominates in real-time deployment. Part IV develops this term.

Systems Perspective 1.3: The iron law analogy
The name “iron law” follows Patterson & Hennessy’s Iron Law of Processor Performance (Hennessy and Patterson 2017). P&H’s law is a multiplicative decomposition (a tautology factoring CPU time), whereas this equation is an additive first-order model that approximates performance under simplifying assumptions.

The additive form assumes sequential execution. When movement and computation overlap, we replace the sum with their critical-path lower bound in equation 5: \[T_{\text{pipelined}} \ge \max\left(\frac{D_{\text{vol}}}{\text{BW}}, \frac{O}{R_{\text{peak}} \cdot \eta_{\text{hw}}}\right) + L_{\text{lat}} \tag{5}\] This max-based formulation is the systems equivalent of overlapping asynchronous Direct Memory Access (DMA) data transfers with active Arithmetic Logic Unit (ALU) computation, where the execution time of the slower pipeline stage hides the latency of the faster stage. Equality requires ideal overlap and assumes that \(L_{\text{lat}}\) remains outside the overlapped phases.

The term remains useful because, like Amdahl’s Law (Amdahl 1967), its value lies in identifying which physical constraint dominates before optimizing. The iron law simplifies the complexity of the full stack into three manageable terms. D·A·M coordination: From sum to max presents the refined treatment, including pipelining and overlap techniques that transform the additive model into the max-based formulation used in practice.

Amdahl, Gene M. 1967. “Validity of the Single Processor Approach to Achieving Large Scale Computing Capabilities.” Proceedings of the April 18-20, 1967, Spring Joint Computer Conference on - AFIPS ’67 (Spring), AFIPS ’67 (spring), 483–85. https://doi.org/10.1145/1465482.1465560.
Hennessy, John L., and David A. Patterson. 2017. Computer Architecture: A Quantitative Approach. 6th ed. Morgan Kaufmann.

Once execution time has been decomposed, the next question is which term dominates. The Roofline Model answers the movement-versus-compute part of that question with a boundary called the ridge point. Below the ridge, data movement dominates; above it, arithmetic throughput dominates. The Roofline model develops the deeper mathematical treatment for readers who want it. Every optimization technique developed in this book manipulates one of these variables by moving less data, doing less work, using the machine more effectively, or reducing orchestration delay. A GPT-3-class training estimate makes that manipulation concrete by showing how an efficiency change propagates through the iron law.

Napkin Math 1.1: Training GPT-3
Problem: How long would it take to train a GPT-3-class model on a reference cluster with 1,024 accelerators?

Given:

  • Ops \((O)\): \(\approx 3.14 \times 10^{23}\ \text{FLOPs}\)
  • Peak \((R_{\text{peak}})\): 312 TFLOP/s
  • Efficiency \((\eta_{\text{hw}})\): ≈ 45 percent (typical for large-scale distributed training)
  • Scale \((N_{\text{accel}})\): 1,024 accelerators

Math:

  • \(T_{\text{train}} \approx \frac{O}{N_{\text{accel}} \cdot R_{\text{peak}} \cdot \eta_{\text{hw}}}\) \(\approx \frac{3.14 \times 10^{23}}{1024 \times 312 \times 10^{12} \times 0.45}\) \(\approx 25\ \text{days}\)

Result: 25 days.

Systems insight: If we improve hardware utilization \((\eta_{\text{hw}})\) from 45 percent to 60 percent through better scheduling and more efficient execution, training time drops to 19 days, saving 6 days of expensive compute time.

The equation is dimensionally consistent because each term resolves to seconds. One cannot add FLOPs to bytes any more than one can add meters to kilograms; the iron law adds time to time to time. A formal treatment in Dimensional analysis verifies this consistency and demonstrates how unit tracking prevents common modeling errors.

The iron law governs time, but time is not the only constraint. For mobile devices, edge systems, and large-scale training clusters, energy often matters more than raw speed.

Vertical ladder of three orange bars on a log scale, longest at top: DRAM (Dynamic Random-Access Memory) 160 pJ towers far above FP16 1.1 pJ and INT8 (8-bit integer) 0.2 pJ, showing data movement costs orders of magnitude more energy than arithmetic.

Moving a byte costs about 145 times an FP16 op, the data-movement tax.

Just as time is governed by physics, so is energy. A fourth term enters the mental model through the energy tax. In many modern systems (mobile, edge, and large-scale training), energy, not time, is the hard constraint. Let \(D_{\text{vol}}\) be the total data volume moved (bytes), \(E_{\text{move}}\) the energy per byte moved, \(O\) the total operation count, and \(E_{\text{compute}}\) the energy per operation. Equation 6 formalizes this relationship, following the hardware-energy observation that data movement can dominate arithmetic energy (Horowitz 2014): \[ E_{\text{total}} \approx \underbrace{ D_{\text{vol}} \times E_{\text{move}} }_{\text{Movement Term}} + \underbrace{ O \times E_{\text{compute}} }_{\text{Compute Term}} \tag{6}\]

Per access, data movement can cost far more than arithmetic, so \(E_{\text{move}} \gg E_{\text{compute}}\). Under the energy constants used in this text, moving one byte from off-chip Dynamic Random-Access Memory (DRAM) consumes roughly 145.5× the energy of an FP16 multiply and 800× that of an INT8 (8-bit integer) multiply (Horowitz 2014). Whether movement dominates a complete workload also depends on the number and width of transfers relative to its operation count. The physical reason for the per-access gap is that data movement requires charging and discharging wires over longer distances, while arithmetic occurs locally within a processing unit’s circuits. Minimizing avoidable data movement \((D_{\text{vol}})\) can therefore improve both speed and energy efficiency.

Checkpoint 1.2: The iron law

The iron law \((T \approx \frac{D_{\text{vol}}}{\text{BW}} + \frac{O}{R_{\text{peak}} \cdot \eta_{\text{hw}}} + L_{\text{lat}})\) is the analytical backbone of this book. Before proceeding, verify you can manipulate its terms:

The same terms that determine time and energy also determine cost. Every byte moved, operation executed, and millisecond of latency consumes infrastructure budget. The next test is therefore economic, asking whether added compute buys enough model improvement to justify the resources it consumes.

Return on compute (RoC) as an economic lens

The decomposition of time also has an economic consequence. Following the quantitative reasoning tradition of Hennessy and Patterson, return on compute (RoC) measures the incremental accuracy gain per added dollar of infrastructure investment. With accuracy measured on a fixed scale, RoC has units of accuracy points per dollar. \[ \text{RoC} = \frac{\Delta \text{Accuracy}}{\Delta \text{Compute Cost}} \]

This ratio exposes an economic boundary. A 1-percentage-point gain in accuracy may fail the RoC test if it requires a 10\(\times\) increase in \(O\) (Total Operations). Every optimization in the following chapters targets either the numerator (extracting more signal from the same data) or the denominator (reducing the cost of executing the math). If the RoC is negative or negligible, the system is over-engineered, regardless of its technical sophistication. This economic lens transforms “accuracy” from a research target into an engineering budget.

If scale is the ultimate lever for performance, it is also the ultimate consumer of resources. The bitter lesson teaches that scale works, but the iron law teaches how to afford it. This tension between scaling and sustainability shapes the engineering principles that follow.

Lighthouse models put the iron law into practice

The iron law does more than diagnose bottlenecks; it organizes the entire discipline. Each term in the equation corresponds to a core engineering imperative. The data term demands building robust data pipelines and infrastructure (Data Engineering). The compute term requires optimizing algorithms and hardware utilization for efficiency (Part III). The latency term necessitates deploying and operating systems reliably in production (Model Serving, ML Operations). These three imperatives structure the textbook. Parts I and II address building, Part III addresses optimization, and Part IV addresses deployment and operations.

Abstract equations become tangible through workloads. This textbook employs five recurring lighthouse models as diagnostic tools for the iron law. These canonical workloads reappear across chapters to test how the same physical constraints affect different architectural patterns.

Each lighthouse model represents a distinct stress case for the iron law. For instance, ResNet-50 provides a probe for compute throughput when a system repeatedly reuses the same learned parameters, while GPT-2/Llama acts as the primary probe for memory bandwidth pressure during language generation. For language models, autoregressive decode means generating one token at a time; the KV (Key-Value) cache is the saved attention state from previous tokens (Network Architectures introduces the attention mechanism in full), and prefill is the initial pass that processes the prompt before token-by-token generation begins. That diagnosis depends on the operating regime. Small-batch decode often streams weights and KV-cache state fast enough to expose memory bandwidth, while prefill and high-batch serving can shift the bottleneck toward arithmetic or communication. By following these same workloads from data engineering through to edge deployment, each chapter demonstrates how a single architectural choice propagates physical and economic constraints across the entire system.

The iron law makes these differences precise. ResNet-50 applies the same small weight filters across many spatial positions and, under batching, across many inputs; that reuse can make \(O/(R_{\text{peak}} \cdot \eta_{\text{hw}})\) the dominant term because the processor must sustain enormous arithmetic throughput while the data footprint remains modest. GPT-2, by contrast, loads billions of unique weight parameters for every token it generates, and each weight is used only once before the next must be fetched; its \(D_{\text{vol}}/\text{BW}\) term dominates because memory bandwidth, not arithmetic, is the binding constraint. Applying the same equation to two different workloads leads to different diagnoses and therefore different optimization strategies. Doubling \(R_{\text{peak}}\) helps batched ResNet-50 once reuse increases computation per byte moved, but barely affects GPT-2 decode; doubling \(\text{BW}\) has the reverse effect for bandwidth-bound decode. Table 5 summarizes why each lighthouse model serves as a diagnostic tool for a specific bottleneck.

Table 5: Lighthouse Models as Reference Workloads: Each workload isolates a distinct bottleneck, enabling systematic investigation of how system constraints affect different architectural patterns. Quantitative specifications and architectural details appear in Network Architectures.
Lighthouse Model System Bottleneck What It Reveals Key Engineering Questions
ResNet-50 Compute throughput under reuse GPU utilization, batching Is the hardware doing math or waiting for data?
GPT-2/Llama Memory bandwidth Weight and sequence-state movement How fast can model state move to compute?
Deep Learning Recommendation Model (DLRM) Memory capacity Embedding tables, scale-out How do terabyte-scale models fit in memory?
MobileNetV2 Latency and power Efficient operator design Can the system meet real-time constraints on battery?
Keyword spotting Power envelope Tiny memory and energy budgets Can the system run always-on inference on milliwatts?

Horizontal three-segment bar labeled D, C, L for the iron law's data, compute, and latency terms. The data segment is widest and shaded blue, dominating; the compute and latency segments are narrow and gray.

GPT-2 decode is bandwidth-bound because the data term dominates.

Each lighthouse model manifests different constraints along the D·A·M axes, ensuring that the principles developed throughout this text are tested against the diversity of real-world systems engineering challenges. The division of labor among the book’s recurring examples is deliberate. The four deployment paradigms fix the envelope a system must operate within, the five lighthouse models supply the workloads that stress it, and in section 1.8.3 four engineering missions and three production case studies (Waymo, FarmBeats, and AlphaFold) pair envelope with workload under real-world constraints.

The same diagnostic reading applies retrospectively to the breakthrough that launched the deep learning era. The AlexNet system combined a convolutional architecture whose parallel matrix operations matched GPU capabilities with the 1.3M labeled images in the 2012 ImageNet challenge training split21 (Deng et al. 2009). Its error reduction therefore reflected coordination across the D·A·M axes rather than algorithmic novelty in isolation.

21 ImageNet: The 2009 paper reported 3.2 million images across 5,247 synsets; the later full dataset grew to about 14.2 million images across 21,841 synsets. The 2012 challenge training split used by AlexNet contained about 1.3M labeled images (Deng et al. 2009; Russakovsky et al. 2015) (see Data Engineering).

Deng, Jia, Wei Dong, Richard Socher, Li-Jia Li, Kai Li, and Li Fei-Fei. 2009. “ImageNet: A Large-Scale Hierarchical Image Database.” 2009 IEEE Conference on Computer Vision and Pattern Recognition, 248–55. https://doi.org/10.1109/cvpr.2009.5206848.
Russakovsky, Olga, Jia Deng, Hao Su, Jonathan Krause, Sanjeev Satheesh, Sean Ma, Zhiheng Huang, et al. 2015. “ImageNet Large Scale Visual Recognition Challenge.” International Journal of Computer Vision 115 (3): 211–52. https://doi.org/10.1007/s11263-015-0816-y.

This interdependence means that optimizing one component often shifts pressure to another. AlexNet’s co-design success came at a cost affordable in 2012 (two consumer GPUs for a week), but modern models demand resources roughly 7 orders of magnitude larger. If the iron law governs how fast a system runs, a framework remains necessary to reason about how efficiently it uses those resources.

Self-Check: Question

  1. In the Iron Law of ML Systems, \(T = \frac{D_{\text{vol}}}{\text{BW}} + \frac{O}{R_{\text{peak}} \cdot \eta_{\text{hw}}} + L_{\text{lat}}\), how do the terms differ when analyzing small-batch autoregressive LLM token decode versus large-batch ResNet-50 image inference?

    1. LLM decode is dominated by the latency term \(L_{\text{lat}}\), while ResNet-50 is dominated by the data movement term \(D_{\text{vol}}/\text{BW}\).
    2. Both workloads are dominated strictly by the compute term \(\frac{O}{R_{\text{peak}} \cdot \eta_{\text{hw}}}\), making memory bandwidth irrelevant.
    3. ResNet-50 is memory-capacity bound by embedding tables, while LLM decode is bound by network serialization overhead.
    4. Small-batch LLM decode is bound by the data movement term (\(D_{\text{vol}}/\text{BW}\)) because billions of weights and KV-cache states must be fetched from memory for every single token generated, whereas batched ResNet-50 reuses weight parameters across many inputs and spatial locations, making the compute term (\(\frac{O}{R_{\text{peak}} \cdot \eta_{\text{hw}}}\)) dominant.

  2. When asynchronous Direct Memory Access (DMA) data transfers and Arithmetic Logic Unit (ALU) computations are overlapped in a pipelined ML runtime, how is the sequential additive Iron Law modified, and what determines execution time?

    1. \(T_{\text{pipelined}} = \frac{D_{\text{vol}}}{\text{BW}} \times \frac{O}{R_{\text{peak}} \cdot \eta_{\text{hw}}} \times L_{\text{lat}}\)
    2. \(T_{\text{pipelined}} = \min\left(\frac{D_{\text{vol}}}{\text{BW}}, \frac{O}{R_{\text{peak}} \cdot \eta_{\text{hw}}}\right) + L_{\text{lat}}\)
    3. \(T_{\text{pipelined}} \ge \max\left(\frac{D_{\text{vol}}}{\text{BW}}, \frac{O}{R_{\text{peak}} \cdot \eta_{\text{hw}}}\right) + L_{\text{lat}}\), where the slower pipeline stage dictates the critical path while hiding the latency of the faster stage.
    4. \(T_{\text{pipelined}} = \frac{D_{\text{vol}} + O}{\text{BW} + R_{\text{peak}}} + L_{\text{lat}}\)

  3. Based on the energy cost model \(E_{\text{total}} \approx D_{\text{vol}} \times E_{\text{move}} + O \times E_{\text{compute}}\), explain why moving a byte from off-chip DRAM costs roughly 145 times more energy than an FP16 arithmetic operation, and state one system optimization that mitigates this energy tax.

  4. In economic analysis of ML systems, the quantitative metric that measures the incremental gain in model accuracy achieved per added dollar of infrastructure investment is called the ____.

  5. True or False: If an engineering team doubles the peak FLOP/s throughput (\(R_{\text{peak}}\)) of their accelerators, the end-to-end execution time of a small-batch autoregressive LLM decoding workload will be cut in half.

See Answers →

Three Dimensions of ML Efficiency

That efficiency question exposes a tension first introduced by the bitter lesson in section 1.3. Scale drives AI progress, but ever-larger datasets and compute budgets narrow participation to the most resource-rich organizations. Even those organizations eventually meet physical limits in data center power, memory bandwidth, and the diminishing returns of adding more parameters.

Common public estimates for GPT-4-class training place the compute budget around 2.5 million accelerator-days, representing millions of dollars in compute costs and substantial environmental impact. Many research institutions and companies cannot afford to compete through brute-force scaling. Those cost and access constraints make efficient use of existing compute a complementary path to progress.

Efficiency is a bottleneck diagnosis, not a single technique. The D·A·M landscape (figure 4) now becomes an action map. Data selection improves what the system can learn from, algorithmic efficiency reduces the work required to learn or predict, and compute efficiency aligns that work with the machine. The remaining intersection, how information moves, cuts across all three because every improvement must survive the memory and communication path.

Algorithmic efficiency, the earliest frontier, reduces computational requirements through better model design and training procedures. Its goal is to produce more useful behavior per operation, so capability rises without scaling every resource in lockstep. As algorithms demanded ever more computation, compute efficiency became the second critical dimension. It maximizes hardware utilization by aligning algorithmic logic with machine physics, turning theoretical processor capability into useful work. Most recently, data selection emerged as the third dimension, extracting more learning signal from limited examples and thereby reducing the total operations term \(O\) of the iron law. The timeline in figure 5 places these three dimensions side by side before the chapter sequence presents them in build order. Together, these three dimensions provide the engineering tools to overcome the data, algorithm, and machine walls that pure scaling alone cannot address.

\begin{tikzpicture}[font=\small\sffamily,node distance=2mm]
\tikzset{
  Box/.style={inner xsep=1pt,
    draw=none,
    fill=#1,
    anchor=west,
    text width=27mm,align=center,
    minimum width=27mm, minimum height=10mm
  },
  Box/.default=red
}
\definecolor{col1}{RGB}{128, 179, 255}
\definecolor{col2}{RGB}{255, 255, 128}
\definecolor{col3}{RGB}{204, 255, 204}
\definecolor{col4}{RGB}{230, 179, 255}
\definecolor{col5}{RGB}{255, 153, 204}
\definecolor{col6}{RGB}{245, 82, 102}
\definecolor{col7}{RGB}{255, 102, 102}

\node[Box={col1}](B1){Handcrafted \&\\ Statistical Era};
\node[Box={col1},right=of B1](B2){Deep\\ Learning Era};
\node[Box={col1},right=of B2](B3){Modern\\ Efficiency};
\node[Box={col2},right=of B3](B4){General-Purpose\\ Computing};
\node[Box={col2},right=of B4](B5){Accelerated\\ Computing};
\node[Box={col2},right=of B5](B6){Sustainable Computing};
\node[Box={col3},right=of B6](B7){Data\\ Scarcity};
\node[Box={col3},right=of B7](B8){Big\\ Data Era};
\node[Box={col3},right=of B8](B9){ Data-Centric AI};
%%%%
\node[Box={col1},above=of B2,minimum width=87mm,
 text width=85mm](GB1){Algorithmic Efficiency};
\node[Box={col2},above=of B5,minimum width=87mm,
text width=85mm](GB5){Compute Efficiency};
\node[Box={col3},above=of B8,minimum width=87mm,
text width=85mm](GB8){Data Selection};
%%
\foreach \x in{1,2,...,9}
\draw[dashed,thick,-latex](B\x)--++(270:5.5);

\path[red]([yshift=-8mm]B1.south west)coordinate(P)-|coordinate(K)(B9.south east);
\draw[line width=2pt,-latex](P)--(K)--++(0:3mm);

\node[Box={col1!50},below=2 of B1](BB1){1980};
\node[Box={col1!50},below=2 of B2](BB2){2010};
\node[Box={col1!50},below=2 of B3](BB3){2023};
\node[Box={col2!70},below=2 of B4](BB4){1980};
\node[Box={col2!70},below=2 of B5](BB5){2010};
\node[Box={col2!70},below=2 of B6](BB6){2023};
\node[Box={col3!70},below=2 of B7](BB7){1980};
\node[Box={col3!50},below=2 of B8](BB8){2010};
\node[Box={col3!50},below=2 of B9](BB9){2023};
%%%%%
\node[Box={col4!50},below= of BB1](BBB1){2010};
\node[Box={col4!50},below= of BB2](BBB2){2022};
\node[Box={col4!50},below= of BB3](BBB3){Future};
%
\node[Box={col5!50},below= of BB4](BBB4){2010};
\node[Box={col5!50},below= of BB5](BBB5){2022};
\node[Box={col5!50},below= of BB6](BBB6){Future};
%
\node[Box={col7!50},below= of BB7](BBB7){2010};
\node[Box={col7!50},below= of BB8](BBB8){2022};
\node[Box={col7!50},below= of BB9](BBB9){Future};
\end{tikzpicture}
Figure 5: Historical Efficiency Trends: Three color-coded sequences align the algorithmic, compute, and data-selection eras. The paired dates beneath each box mark its interval: 1980–2010, 2010–2022, and 2023–future.

These three dimensions did not emerge simultaneously; each progressed through distinct eras at different rates. Algorithmic efficiency led the way, compute efficiency followed as demand grew, and data-centric methods matured most recently. While history progressed from algorithmic breakthroughs to hardware acceleration to data-centric methods, Part III reverses that sequence. Data selection comes first, followed by model compression and hardware acceleration. This pedagogical order reflects how practitioners build systems because quality data is prerequisite to effective model optimization, and understanding the model is prerequisite to mapping it efficiently onto hardware.

The trajectory of model architectures over time illustrates how these dimensions progress. Figure 6 makes the impact of algorithmic efficiency visible model by model, demonstrating how identical accuracy targets require progressively less compute as architectures improve.

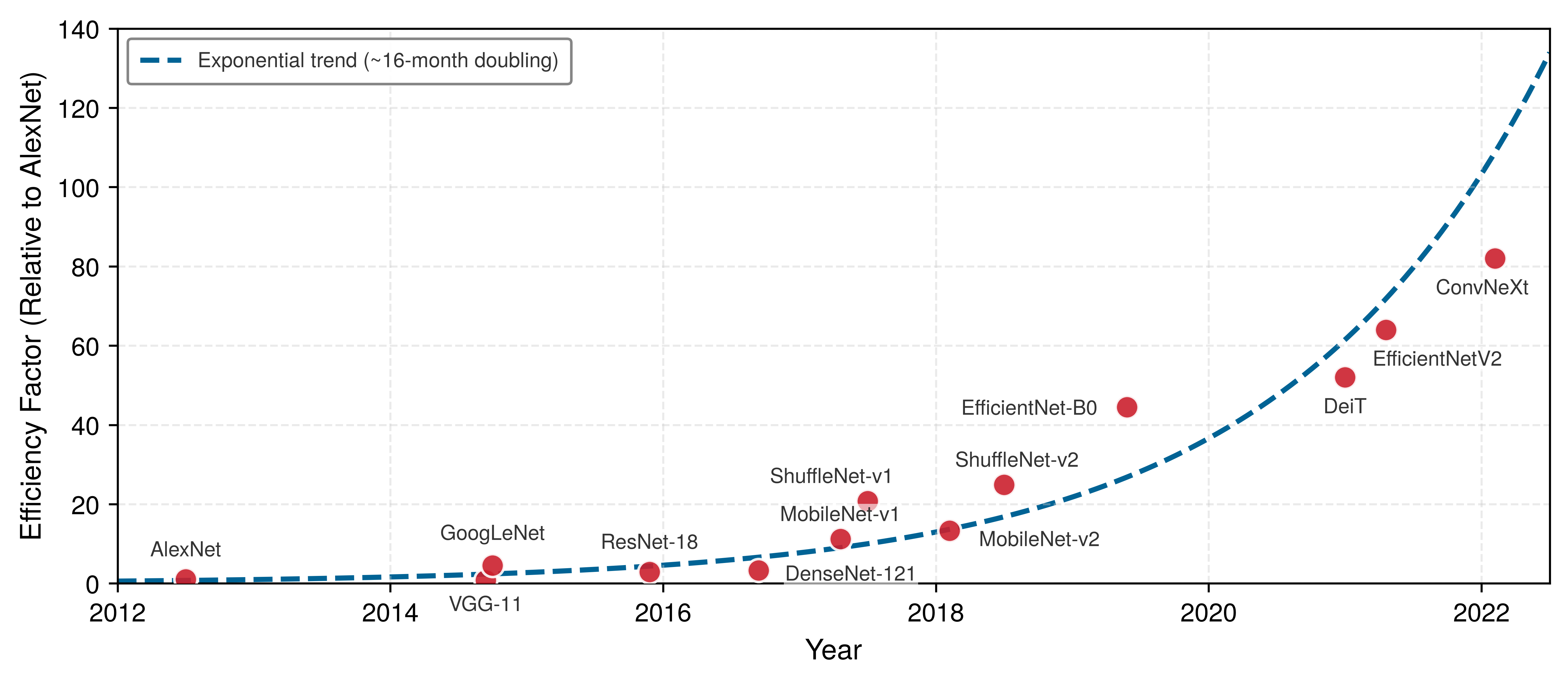

Figure 6: Algorithmic Efficiency Trajectory: Training efficiency factor relative to AlexNet (2012 baseline) for ImageNet classification. Most later architectures achieve comparable accuracy with fewer computational resources, although individual points vary. The trajectory from AlexNet (1\(\times\)) through VGG (Visual Geometry Group), ResNet, MobileNet, and ShuffleNet to EfficientNet (44\(\times\)) demonstrates a 44.5-fold reduction in required compute over seven years, independent of hardware improvements (Hernandez and Brown 2020). Early-2020s points and the dashed fit through all plotted points are author-added context rather than evidence for extending the Hernandez-Brown trend.

The magnitude of efficiency improvements is measurable. Between 2012 and 2019, computational resources needed to train a neural network to achieve AlexNet-level performance on ImageNet classification decreased by approximately 44.5× (Hernandez and Brown 2020). This improvement, which halved about every 15 months, outpaced hardware efficiency gains predicted by Moore’s Law,22 demonstrating that algorithmic innovation drives efficiency as much as hardware advances.

Hernandez, Danny, and Tom B. Brown. 2020. “Measuring the Algorithmic Efficiency of Neural Networks.” arXiv Preprint arXiv:2005.04305, ahead of print. https://doi.org/10.48550/arxiv.2005.04305.

22 Moore’s law: Gordon Moore’s 1965 observation described rapid growth in the number of components that could be economically integrated on a chip (Moore 1998); later industry summaries often expressed the cadence as roughly a two-year doubling.

Moore, G. E. 1998. “Cramming More Components onto Integrated Circuits.” Proceedings of the IEEE 86 (1): 82–85. https://doi.org/10.1109/jproc.1998.658762.

Simultaneously, aggregate training compute in published frontier runs followed a much steeper cadence than Moore’s Law, with a fitted doubling time of approximately 3.4 months (Amodei and Hernandez 2018). That aggregate publication trend is not the same quantity as an endpoint ratio between two landmark models, but it explains why efficiency optimization is not optional. Without it, only the most resource-rich organizations could participate in AI development.

These measurements emerge from rigorous empirical methodology that tracked training compute across hundreds of published models; Benchmarking develops the measurement frameworks that enable such systematic analysis of ML system performance. The two cadences just compared define the systems gap as the widening distance between what models demand (compute doubling every 3.4 months) and what hardware supplies (transistor density doubling roughly every two years). Closing that gap is the primary objective of this textbook, requiring integrated expertise across the software and hardware stack; Hardware Acceleration quantifies it directly.

Architecture-by-architecture gains tell only half the story. Algorithmic improvements could not contain rising training demand. Figure 7 compares illustrative AlexNet-era and GPT-4-class endpoints, distinct from the aggregate 3.4-month trend. Their several-order-of-magnitude gap makes efficiency optimization necessary.

Figure 7: The Era of Scale: Illustrative training-compute estimates (FLOPs) vs. year on a log scale. While early deep learning (blue) showed rapid growth, the transformer era (red) accelerated this trend significantly. From AlexNet (2012) to illustrative GPT-4-class training scale anchors (2023), compute requirements increased by roughly 7 orders of magnitude (16.7M times), far outpacing Moore’s Law. This endpoint comparison is distinct from aggregate training-compute trend studies (Amodei and Hernandez 2018; Sevilla et al. 2022) and is used here to motivate the specialized infrastructure described in this book.
Amodei, Dario, and Danny Hernandez. 2018. “AI and Compute.” OpenAI Blog 6.
Sevilla, Jaime, Lennart Heim, Anson Ho, Tamay Besiroglu, Marius Hobbhahn, and Pablo Villalobos. 2022. “Compute Trends Across Three Eras of Machine Learning.” 2022 International Joint Conference on Neural Networks (IJCNN), 1–8. https://doi.org/10.1109/ijcnn55064.2022.9891914.

Taken together, these two figures reveal a seeming contradiction that defines the economics of modern AI development. Figure 6 shows efficiency improving 44.5× while figure 7 shows compute demand growing by roughly 7 orders of magnitude. The plots, however, hold different quantities constant. The first asks how much computation is required to reach a roughly fixed capability target, whereas the second permits the target to expand and records the resulting training budget. Efficiency lowers the cost of a given capability; scale determines how the newly affordable computation is spent. The apparent contradiction is therefore an economic feedback rather than a disagreement between the measurements.

Systems Perspective 1.4: The efficiency paradox
This dynamic is the ML systems equivalent of Jevons paradox. In resource economics, increasing the efficiency with which a resource is used often increases rather than decreases total consumption. In AI, efficiency gains fund larger models and broader datasets rather than smaller compute budgets. If EfficientNet needs 44.5× less compute than AlexNet to reach the same accuracy, organizations can invest the savings in larger models and broader data. This is precisely how GPT-3 came to require orders of magnitude more compute than AlexNet despite per-FLOP efficiency gains. The feedback loop, in which efficiency enables scale and scale demands efficiency, defines the modern AI engineering landscape.

The specific methods for achieving these gains are developed systematically in Model Compression (algorithmic techniques) and Hardware Acceleration (hardware foundations). Data Selection addresses data selection as an efficiency technique, while Data Engineering covers the pipeline design and quality infrastructure that make selected data usable.

Self-Check: Question

  1. Between 2012 (AlexNet) and 2019 (EfficientNet), algorithmic efficiency for ImageNet classification improved by approximately 44.5\(\times\) (halving required compute every ~16 months). Over the same general era, training compute for frontier models grew by roughly \(10^7\times\) (doubling every ~3.4 months). How does the ‘efficiency paradox’ (Jevons paradox in ML systems) resolve this apparent contradiction?

    1. Efficiency improvements reduce the compute cost required to reach a fixed accuracy level, and organizations reinvest those resource savings into training substantially larger models on broader datasets to achieve higher capabilities.
    2. Algorithmic efficiency metrics only apply to inference workloads, while training compute growth applies exclusively to cloud data centers.
    3. Hardware manufacturers deliberately slowed down clock frequencies to increase total data center power consumption.
    4. The 44.5\(\times\) algorithmic gain was an artifact of integer quantization that could not be replicated in 16-bit floating-point training.

  2. What is the ‘systems gap’ defined in the chapter, and why does it make hardware-software efficiency optimization indispensable for ML practitioners?

    1. The latency gap between CPU cache access and local register access in accelerator memory hierarchies.
    2. The widening divergence between the rate at which frontier AI model compute demand has grown (doubling roughly every 3.4 months) and the rate at which semiconductor physics advances hardware density via Moore’s Law (doubling roughly every 24 months).
    3. The difference in training loss between supervised fine-tuning and reinforcement learning from human feedback.
    4. The discrepancy between open-source framework code and proprietary GPU driver implementations.

  3. Name the three dimensions of ML efficiency described in the chapter and explain how the pedagogical order in which they are taught (Data Selection -> Model Compression -> Hardware Acceleration) differs from their historical order of emergence.

  4. True or False: Between 2012 and 2019, advances in neural network algorithmic efficiency on ImageNet lagged behind the hardware density improvements provided by Moore’s Law.

See Answers →

AI Engineering as a Discipline

A cloud service may optimize throughput, while an edge device must remain within a strict power envelope. The same model can therefore be efficient in one setting and unusable in another. Model accuracy alone does not specify a working system: learned behavior must remain trustworthy as data changes, and the machine must deliver that behavior within its operating budget.

The degradation equation, iron law, and efficiency framework supply quantitative tools for this dual mandate. Together they span statistical behavior, computation, and deployment constraints. Applying them crosses disciplinary boundaries. Computer science addresses algorithms, and electrical engineering addresses hardware, but neither alone encompasses the integrated problem of building systems that remain reliable, efficient, and scalable in production. That problem defines AI engineering.

Definition 1.3: AI engineering

AI engineering is the discipline of designing, deploying, and maintaining ML systems that hold statistically evaluated behavior to deterministic reliability targets while satisfying production constraints across all three D·A·M axes: Data quality, Algorithm correctness, and Machine efficiency.

  1. Significance: ML research typically optimizes only the algorithm axis (\(O\) and convergence). AI engineering jointly optimizes all three by bounding \(D_{\text{vol}}\) through data governance requirements, \(O/(R_{\text{peak}} \cdot \eta_{\text{hw}})\) through production latency requirements, and total power draw through energy and cost budgets. A production system that achieves 95 percent accuracy in research but violates a 100 ms latency requirement in production is a failed system, regardless of its algorithm score.
  2. Distinction: Unlike machine learning research, which targets a single objective (validation loss) on a static dataset, AI engineering targets a multi-objective constraint surface (latency, throughput, accuracy, cost, fairness, and robustness) on a distribution that shifts continuously after deployment.
  3. Common pitfall: A frequent misconception is that AI engineering is just “software engineering for ML.” The system specification is instead probabilistic. An ML system’s output is statistically valid or invalid relative to a shifting distribution, not correct or incorrect relative to a fixed deterministic contract. This makes continuous monitoring a structural requirement, not an operational choice.

The phrase “stochastic systems with deterministic reliability” connects AI engineering to an earlier disciplinary convergence. Computer engineering emerged in the late 1960s and early 1970s23 as computing systems grew too complex for electrical engineering or computer science to address alone. It bridged both fields around the integrated problem of building reliable computers. AI engineering faces a similar problem at the intersection of algorithms, infrastructure, and operational practices.

23 Computer engineering: Formalized as an academic discipline when Case Western Reserve launched the first accredited program in 1971, recognizing that neither electrical engineering nor computer science alone could address building reliable computers from unreliable components. ML systems engineering recapitulates this convergence: the binding constraint is not algorithmic or hardware in isolation but the integration of both under latency, power, and data-quality budgets that neither discipline’s curriculum addresses.

AI engineering names the broader discipline; throughout this text, “ML systems engineering” names the practical work of designing, deploying, and maintaining modern ML systems.

Engineering across the ML lifecycle

A breakthrough algorithm requires efficient data collection and processing, distributed computation across hundreds or thousands of machines, reliable service to users with strict latency requirements, and continuous monitoring based on real-world performance. These obligations form a recurring lifecycle rather than a sequence that ends at deployment. The engineering object is no longer only code; it is code, data, model behavior, deployment context, and monitoring evidence evolving together. Production feedback can force a deployed system back into data collection and training, bending the familiar linear arc into a cycle.

The structural difference shows up first in tooling. Decades of established practice support code-defined behavior through version control that maintains precise histories, continuous integration pipelines that automate testing, and static analysis tools that measure quality. Behavior learned from data slips through this tooling, because the artifact that changes is no longer a diff a developer wrote. ML Workflow develops the specialized workflows these challenges demand.

The deeper difference is the prominence of continuous feedback. The loops in figure 8 show why. When monitoring detects performance degradation, the system does not receive a code patch alone. It may cycle back through data collection, preparation, training, and evaluation before redeployment, making iteration part of the operating architecture rather than only the development process.

\begin{tikzpicture}[line join=round,font=\sffamily\small]
\tikzset{%
  Box/.style={align=flush center,
    inner xsep=2pt,
    node distance=1.1,
    draw=none,
    line width=0.75pt,
    fill=none,
    minimum width=23mm, minimum height=28mm
  },
  BBox/.style={Box,
    draw=none,
    line width=0.75pt,
    fill=mybrown!06,
    minimum width=23mm, minimum height=11mm
  },
  Box2/.style={Box, draw=BrownLine, fill=BrownL!30,
  },
  Txt/.style={font=\sffamily\footnotesize,text=black!90,align=center
  },
  LineA/.style={black!50,line width=1.2pt,{-{Triangle[width=1.0*5pt,length=9pt]}},shorten <=-9pt,shorten >=-9pt},
  LineAD/.style={black!30,line width=1.5pt,dashed,{-{Triangle[width=1.0*5pt,length=9pt]}},shorten <=-2pt,shorten >=-2pt},
}

%funnel
\tikzset{%
 pics/funnel/.style = {
        code = {
        \pgfkeys{/channel/.cd, #1}
\begin{scope}[local bounding box=FUNNEL,scale=\scalefac, every node/.append style={transform shape}]
\draw[fill=\filllcolor!50,line width=\Linewidth,draw=\drawcolor](-0.12,-0.81)--(-0.19,-0.25)--(-0.7,0.41)--(0.7,0.41)--(0.19,-0.25)--(0.12,-0.81)--cycle;
\draw[fill=\filllcolor!50,line width=\Linewidth,draw=\drawcolor](-0.19,-0.25)--(0.08,-0.25);
\draw[fill=\filllcolor!50,line width=\Linewidth,draw=\drawcolor](0.16,-0.09)--(0.41,0.31);
%
\node[line width=\Linewidth,draw=\drawcolor,fill=\filllcolor!50,inner sep=1pt,
rectangle,rounded corners=2pt,minimum width=16mm,minimum height=5pt]at(0,0.5){};
%
\foreach \i in{-0.5,0,0.5}{
\node[single arrow, line width=0.8*\Linewidth,draw=\filllcirclecolor,fill=\filllcirclecolor, rotate=270,inner sep=1pt,
      minimum width =9pt, single arrow head extend=2pt,
      minimum height=5mm]at(\i,0.9) {}; % length of arrow
   }
\node[single arrow,line width=0.8*\Linewidth,draw=\filllcirclecolor,fill=\filllcirclecolor, rotate=270,inner sep=1pt,
      minimum width =11pt, single arrow head extend=2pt,
      minimum height=5mm]at(0,-1.1) {}; % length of arrow
 \end{scope}
     }
  }
}
%nodes
\tikzset{
pics/nodes/.style = {
        code = {
        \pgfkeys{/channel/.cd, #1}
\begin{scope}[shift={($(0,0)+(0,0)$)},scale=\scalefac,every node/.append style={transform shape}]
\foreach \x/\y[count=\a] in {-0.2/0.35,
0.7/0.6,-0.5/1.4,-1.20/-0.8,-0.1/-1.3,-0.4/-0.43,
0.61/-0.3,1/-0.85,0.45/1.2,-0.96/0.63}{
\node[circle,fill=myblue,draw=black,inner sep=0pt,minimum size=3mm](XB\a)at(\x,\y){};
}
\foreach \x/\y[count=\a] in {-2.0/0.1
}{
\node[circle,fill=myred,draw=black,inner sep=0pt,minimum size=3mm](XR\a)at(\x,\y){};
}

\foreach \x/\y[count=\a] in {1.87/0.1
}{
\node[circle,fill=mygreen,draw=black,inner sep=0pt,minimum size=3mm](XG\a)at(\x,\y){};
}

\foreach \x in {1,3,4,6,10}{
\draw[RedLine,line width=0.5pt](XR1) edge  (XB\x);
}
\foreach \x in {1,2,5,8,9}{
\draw[mygreen,line width=0.5pt](XG1) edge  (XB\x);
}
\foreach \x in {2,3,6,9,10}{
\draw[black,line width=0.5pt](XB1) edge  (XB\x);
}
\foreach \x in {4,5,7}{
\draw[black,line width=0.5pt](XB6) edge  (XB\x);
}
\draw[black,line width=0.5pt](XB4) edge  (XB5);
\draw[black,line width=0.5pt](XB3) edge  (XB9);
\foreach \x in {2,8}{
\draw[black,line width=0.5pt](XB7) edge  (XB\x);
}
\end{scope}
    }
  }
}
%testing
\tikzset{
pics/testing/.style = {
        code = {
        \pgfkeys{/channel/.cd, #1}
\begin{scope}[local bounding box=TESTING1,shift={($(0,0)+(0,0)$)},scale=\scalefac,every node/.append style={transform shape}]
\newcommand{\tikzxmark}{%
\tikz[scale=0.18] {
    \draw[line width=0.7,line cap=round,RedLine] (0,0) to [bend left=6] (1,1);
    \draw[line width=0.7,line cap=round,RedLine] (0.2,0.95) to [bend right=3] (0.8,0.05);
}}
\newcommand{\tikzxcheck}{%
\tikz[scale=0.16] {
    \draw[line width=0.7,line cap=round,GreenLine] (0.5,0.75)--(0.85,-0.1) to [bend left=16] (1.5,1.55);

}}
 \node[minimum width  =15mm, minimum height = 20mm, inner sep = 0pt,
        rounded corners=2pt,draw = \drawcolor, fill=\filllcolor!10, line width=\Linewidth](COM){};
 \node[minimum width  =8mm, minimum height = 2mm, inner sep = 0pt,anchor=north,
        rounded corners=1.5pt,draw =white, fill=\drawcolor!70, line width=0.7*\Linewidth]at
        ($(COM.north)+(0,0.75mm)$)(GOR){};
 \node[minimum size = 2.5mm, inner sep = 0pt,circle,%anchor=north,
        rounded corners=0.5pt,draw =white, fill=\drawcolor!70, line width=0.7*\Linewidth]at(GOR.north)(GOR1){};
\node[draw=GreenLine,inner sep=4pt,fill=white](CB1) at ($(COM.north west)!0.25!(COM.south west)+(0.3,0)$){};
\node[xshift=0pt]at(CB1){\tikzxcheck};
\node[draw=RedLine,inner sep=4pt,fill=white](CB2) at ($(COM.north west)!0.5!(COM.south west)+(0.3,0)$){};
\node[xshift=0pt]at(CB2){\tikzxmark};
\node[draw=RedLine,inner sep=4pt,fill=white](CB3) at ($(COM.north west)!0.75!(COM.south west)+(0.3,0)$){};
\node[xshift=0pt]at(CB3){\tikzxmark};
\draw[GreenLine,decoration={zigzag,segment length=4pt, amplitude=0.5pt},decorate]($(CB1)+(0.3,0.05)$)--++(0:0.8);
\draw[GreenLine,decoration={zigzag,segment length=4pt, amplitude=0.5pt},decorate]($(CB1)+(0.3,-0.12)$)--++(0:0.7);
\draw[RedLine,decoration={zigzag,segment length=4pt, amplitude=0.5pt},decorate]($(CB2)+(0.3,0.05)$)--++(0:0.8);
\draw[RedLine,decoration={zigzag,segment length=4pt, amplitude=0.5pt},decorate]($(CB2)+(0.3,-0.12)$)--++(0:0.6);
\draw[RedLine,decoration={zigzag,segment length=4pt, amplitude=0.5pt},decorate]($(CB3)+(0.3,0.05)$)--++(0:0.8);
\draw[RedLine,decoration={zigzag,segment length=4pt, amplitude=0.5pt},decorate]($(CB3)+(0.3,-0.12)$)--++(0:0.6);
\end{scope}
    }
  }
}
%check mark
\tikzset{pics/.cd,
checkmark/.style={code={
        \pgfkeys{/channel/.cd, #1}
\pgfgettransformentries{\tmpxx}{\tmp}{\tmp}{\tmp}{\tmp}{\tmp}
\draw[line width=\tmpxx*1pt,draw=none,fill=\filllcirclecolor,line join=bevel] (0,.35) -- (.25,0) to[bend left=5] (0.8,.6) to[bend
right=5] (.25,.18) -- cycle;}}}
\tikzset{%
 pics/checkI/.style = {
        code = {
        \pgfkeys{/channel/.cd, #1}
\begin{scope}[local bounding box=CHECK,scale=\scalefac, every node/.append style={transform shape}]
\node[fill=\filllcolor,minimum width=6mm, minimum height=6mm,
            outer sep=2pt] (C1) {};
\pic[shift={(-0.27,-0.19)},scale=0.7]{checkmark};
 \end{scope}
     }
  }
}
%cloud
\tikzset {
pics/cloudA/.style = {
        code = {
        \pgfkeys{/channel/.cd, #1}
\begin{scope}[local bounding box=CLO,scale=\scalefac,, every node/.append style={transform shape}]
\node[draw=\drawcolor!90!red,line width=\Linewidth,minimum width=6mm,minimum height=12mm](VSK)at(0,0.5){};
\node[draw=\drawcolor!90!red,line width=\Linewidth,fill=white,minimum width=9mm,minimum height=4mm](VSKG)at(VSK.north){};
\node[draw=\drawcolor!90!red,line width=\Linewidth,fill=white,minimum width=9mm,minimum height=4mm](VSKC)at(VSK.center){};
\node[draw=\drawcolor!90!red,line width=\Linewidth,fill=white,minimum width=9mm,minimum height=4mm](VSKD)at(VSK.south){};
\draw[fill=\filllcolor,draw=\drawcolor!60,,line width=\Linewidth](0,0)to[out=170,in=180,distance=11](0.1,0.61)
to[out=90,in=105,distance=17](1.07,0.71)
to[out=20,in=75,distance=7](1.48,0.36)
to[out=350,in=0,distance=7](1.48,0)--(0,0);
\draw[draw=\drawcolor!60,,line width=\Linewidth](0.27,0.71)to[bend left=25](0.49,0.96);
\draw[draw=\drawcolor!60,,line width=\Linewidth](0.67,1.21)to[out=55,in=90,distance=13](1.5,0.96)
to[out=360,in=30,distance=9](1.68,0.42);
\node[single arrow, draw=orange,fill=orange,
      minimum width = 10pt, single arrow head extend=3pt,
      minimum height=10mm,
      rotate=270]at(1.05,0) {};
\end{scope}
}
}
}
%data
\tikzset{mycylinder/.style={cylinder, shape border rotate=90, aspect=1.3, draw, fill=white,
minimum width=25mm,minimum height=11mm,line width=\Linewidth,node distance=-0.15},
pics/data/.style = {
        code = {
        \pgfkeys{/channel/.cd, #1}
\begin{scope}[local bounding box=STREAMING,scale=\scalefac, every node/.append style={transform shape}]
\node[mycylinder,fill=\filllcolor!50] (A) {};
\node[mycylinder, above=of A,fill=\filllcolor!30] (B) {};
\node[mycylinder, above=of B,fill=\filllcolor!10] (C) {};
\fill[\filllcolor!50!black]($(C.west)!0.12!(C.east)$)circle(3pt);
\fill[\filllcolor!50!black]($(B.west)!0.12!(B.east)$)circle(3pt);
\fill[\filllcolor!50!black]($(A.west)!0.12!(A.east)$)circle(3pt);
 \end{scope}
     }
  }
}
%display
\tikzset{%
    comp/.style = {draw,
        minimum width  =18mm,
        minimum height = 15mm,
        inner sep      = 0pt,
        rounded corners=3pt,
       draw = \drawcolor,
       fill=\filllcolor!10,
       line width=2.0pt
    },
 pics/displayK/.style = {
        code = {
        \pgfkeys{/channel/.cd, #1}
\begin{scope}[local bounding box=COMPUTER1,scale=\scalefac, every node/.append style={transform shape}]
\node[comp](\picname-COM){};
\draw[draw = \drawcolor,line width=\Linewidth]($(\picname-COM.south west)!0.4!(\picname-COM.south east)$)--++(270:0.2)coordinate(DL);
\draw[draw = \drawcolor,line width=\Linewidth]($(\picname-COM.south west)!0.6!(\picname-COM.south east)$)--++(270:0.2)coordinate(DD);
\draw[draw = \drawcolor,line width=3*\Linewidth,shorten <=-3mm,shorten >=-3mm](DL)--(DD);
 \draw[
  line width=1pt,
  draw=red,
  line cap=round,
  line join=round
](-0.70,0) --(-0.40,0) --(-0.30,0.13) --(-0.2,-0.18) --(-0.05,0.32) --(0.05,-0.15) --
(0.15,0.23) --(0.38,-0.15) --(0.40,0.0) --(0.70,0.0);
\end{scope}
   }
  }
}

\pgfkeys{
  /channel/.cd,
   Depth/.store in=\Depth,
  Height/.store in=\Height,
  Width/.store in=\Width,
  filllcirclecolor/.store in=\filllcirclecolor,
  filllcolor/.store in=\filllcolor,
  drawcolor/.store in=\drawcolor,
  drawcircle/.store in=\drawcircle,
  scalefac/.store in=\scalefac,
  Linewidth/.store in=\Linewidth,
  picname/.store in=\picname,
  filllcolor=BrownLine,
  filllcirclecolor=violet!20,
  drawcolor=red,
  drawcircle=violet,
  scalefac=1,
  Linewidth=0.5pt,
  Depth=0.2,
  Height=0.5,
  Width=0.25,
  picname=C
}
%Data Collection
\node[Box](B0){};
\node[BBox,anchor=south](BB0)at(B0.south){Data\\ Collection};
\coordinate(I0)at($(B0.north)!0.5!(BB0.north)$);
\pic[shift={(0,-0.5)}] at  (I0){data={scalefac=0.45,filllcolor=red, Linewidth=0.6pt}};
%Data Preparation
\node[Box,right=of B0](B1){};
\node[BBox,anchor=south](BB1)at(B1.south){Data\\ Preparation};
\coordinate(I1)at($(B1.north)!0.5!(BB1.north)$);
\pic[shift={(0,0.08)}] at  (I1){funnel={scalefac=0.6,Linewidth=0.5pt,
filllcolor=mypurple,drawcolor=black,filllcirclecolor=red}};
%Model Training
\node[Box,right=of B1](B2){};
\node[BBox,anchor=south](BB2)at(B2.south){Model\\ Training};
\coordinate(I2)at($(B2.north)!0.5!(BB2.north)$);
\pic[shift={(0,0)}] at  (I2){nodes={scalefac=0.4,drawcolor=orange,filllcirclecolor=orange!20,filllcolor=orange}};
%Model Evaluation
\node[Box,right=of B2](B3){};
\node[BBox,anchor=south](BB3)at(B3.south){Model\\ Evaluation};
\coordinate(I3)at($(B3.north)!0.5!(BB3.north)$);
\pic[shift={(-0.1,-0.02)}] at  (I3){testing={scalefac=0.6,drawcolor=mypurple,filllcolor=gray, Linewidth=1.0pt}};
\pic[shift={(0.3,-0.46)}] at  (I3){checkI={scalefac=0.7,filllcolor=GreenLine, filllcirclecolor=white,Linewidth=0.7pt}};
%Model Deployment
\node[Box,right=2.25 of B3](B4){};
\node[BBox,anchor=south](BB4)at(B4.south){Model\\ Deployment};
\coordinate(I4)at($(B4.north)!0.5!(BB4.north)$);
\pic[shift={(-0.36,-0.30)}] at  (I4){cloudA={scalefac=0.65,filllcirclecolor=orange!80,drawcolor=BlueLine,
filllcolor=cyan!10,  Linewidth=1.0pt}};
% Model\\ Training
\node[Box,right=of B4](B5){};
\node[BBox,anchor=south](BB5)at(B5.south){Model\\ Monitoring};
\coordinate(I5)at($(B5.north)!0.5!(BB5.north)$);
\pic[shift={(-0.02,0.06)}] at  (I5){displayK={scalefac=0.65,
filllcolor=myblue, drawcolor=myblue,Linewidth=0.7pt}};
\foreach \x in {0,1,2,3,4,5}{
\draw[line width =2.5pt,mybrown,shorten <=0pt,shorten >=0pt](BB\x.north west)--(BB\x.north east);
}
%arrows
\draw[LineA](B0.20)--(B1.160);
\draw[LineA](B1.20)--(B2.160);
\draw[LineA](B2.20)--(B3.160);
\draw[LineAD](B3.south)--++(0,-8mm)-|node[Txt,above=0pt,pos=0.25]{Needs Improvement}(B1);
\draw[LineA](B3.20)--node[Txt,above=0pt,pos=0.5]{Meets}
node[Txt,below=0pt,pos=0.5]{Requirements}(B4.160);
\draw[LineAD](B5.south)--++(0,-12mm)-|node[Txt,above=0pt,pos=0.1]{Performance Degrades}(B0);
\draw[LineA](B4.20)--(B5.160);
\end{tikzpicture}
Figure 8: ML System Lifecycle: A six-box flowchart depicting Data Collection, Preparation, Model Training, Evaluation, Deployment, and Monitoring. Two feedback loops distinguish this cycle from linear software development: evaluation returns to preparation when results are insufficient, and monitoring triggers new data collection when performance degrades.

The data-dependent nature of ML systems creates dynamic lifecycles requiring continuous monitoring and adaptation. Unlike source code that changes only through developer modifications, data reflects real-world dynamics, and distribution shifts can silently alter system behavior without any code changes. The tooling gap identified earlier in this section follows the system into production. Version control built for discrete code changes struggles with large, evolving datasets, and testing frameworks built for deterministic outputs require adaptation for probabilistic predictions. Data Engineering develops data versioning and quality management, while ML Operations develops monitoring for probabilistic behavior.

What each lifecycle stage demands is not uniform; it depends on the mission the system is built to serve.

Systems Perspective 1.5: From paradigms to missions
The top of the hierarchy transforms abstract systems into concrete engineering missions. Each mission inherits one of the four deployment paradigms introduced in section 1.4.1 and pairs it with a scenario-specific workload. The four missions in table 6 are the application scenarios that recur throughout the book and its associated labs. They act as end-to-end tests of engineering decisions. A 2\(\times\) increase in memory bandwidth is an academic result until it is proven to extend the battery life of the Smart Doorbell or enable the safety-critical latency required for Autonomous Perception.

Each mission runs this lifecycle continuously. High-quality data can improve the model, which improves the product and the feedback it generates. Conversely, weakness at any stage can propagate through everything downstream.

Table 6: Four Engineering Missions: Each deployment paradigm is paired with a recurring scenario workload and its binding constraint.
Mission Deployment Paradigm Scenario Workload Critical Constraint
Frontier training Cloud Cluster GPT-4 Target: 500 ms/step
Autonomous perception Edge Robotics YOLOv8-nano SLA (Service-Level Agreement): 10 ms latency
Mobile assistant Smartphone Mobile-optimized small LLM (Large Language Model) RAM: \(< 2\text{ GB}\) / Thermal: \(< 3\text{ W}\)
Smart Doorbell TinyML (MCU [Microcontroller Unit]) Wake Vision Power: 100 mW

Deployment context shapes the lifecycle

Deployment context determines which lifecycle pressures dominate. The same stages apply across ML systems, but a megawatt-scale data center and a milliwatt-scale embedded device impose different bottlenecks on data collection, model updates, monitoring, and serving.

At one end of the spectrum, cloud-based ML systems train large models and serve millions of users, trading abundant computing resources for capacity limits, operational complexity, and high costs. ML Systems examines their architectural patterns, while Hardware Acceleration develops the hardware foundations that make this scale economically viable.

At the other end, TinyML systems run on microcontrollers24 and embedded devices. Their kilobyte-scale memory and milliwatt power budgets make feasibility precede model quality: a smart-home device must recognize a command using less power than an LED bulb, while a sensor may need to detect anomalies on one battery for years. The efficiency framework in section 1.7 supplies the governing principles, while Model Compression develops the techniques that make such deployment possible.

24 Microcontrollers: Single-chip computers with kilobytes of memory and milliwatts of power budget. For TinyML, memory and energy determine feasibility before model quality.

25 Latency: From Latin latere (“to lie hidden”), delay is invisible until it causes failure. At 30 m/s, every millisecond adds 3 cm of travel before braking begins, making \(L_{\text{lat}}\) the edge constraint.

Between these poles, placement becomes a constraint-allocation problem. Edge ML systems move computation toward data sources to reduce latency25 and bandwidth demand. Mobile ML systems share memory, thermal headroom, and battery power with every other application, trading raw speed for locality and privacy. Hybrid systems distribute work across tiers to balance latency, privacy, bandwidth, and update control.

Each position on this deployment spectrum creates distinct bottlenecks that determine which efficiency dimensions matter most, as summarized in table 7:

Table 7: Efficiency Priorities by Deployment Context: Each deployment environment creates distinct bottlenecks, requiring tailored optimization strategies. Cloud systems optimize for throughput and cost; edge systems optimize for memory and power; TinyML systems require extreme efficiency across all dimensions.
Environment Primary Constraint Efficiency Focus
Cloud training Cost, throughput Distributed efficiency, hardware utilization
Cloud inference Latency, cost per query Batching, model serving optimization
Edge devices Memory, power Smaller models and lower data movement
Mobile Battery, thermal Energy-efficient inference
TinyML kilobyte-scale memory, mW power Extreme compression, specialized architectures

The deployment spectrum represents more than different hardware configurations. Each deployment environment reshapes every stage of the ML lifecycle, from initial data collection through continuous operation and evolution, creating an interplay of constraints that traditional software rarely encounters.

Consider how a single deployment decision cascades through the entire system. Latency-sensitive applications like autonomous vehicles or real-time fraud detection require edge or embedded architectures despite their resource constraints, while large language models naturally gravitate toward centralized cloud infrastructure. This initial architectural choice, however, determines far more than where computation happens. Cloud systems must optimize for cost efficiency at scale, balancing expensive GPU clusters, storage, and network bandwidth, which in turn shapes how often models are retrained, what historical data is retained, and how inference load is distributed. Edge and mobile systems face fixed resource limits that constrain model complexity and update frequency, forcing aggressive model compression26 and careful scheduling. The strictest constraints arise in embedded and TinyML environments, where every byte of memory and milliwatt of power matters.

26 Model compression: A family of techniques, including quantization, pruning, and distillation, that reduces model storage or computation. Its size and accuracy effects depend on the model, method, workload, and target hardware.

Operational complexity increases as systems become more distributed. Centralized cloud architectures benefit from mature deployment tools and managed services, while edge and hybrid systems must coordinate data collection across sensors with varying connectivity, track models deployed across thousands of devices, handle staged rollouts with rollback capabilities, and aggregate monitoring signals from geographically distributed endpoints (ML Operations). Data considerations introduce competing pressures. Privacy requirements or data sovereignty regulations may push computation toward the edge, while the need for large-scale training data pulls toward centralized cloud aggregation. Model updates also behave differently across the spectrum. Cloud architectures enable rapid iteration through centralized traffic control, while edge deployments require remote updates with careful bandwidth management and rollback capabilities.

In practice, these trade-offs are rarely simple binary choices. Modern ML systems often adopt hybrid approaches that span the deployment spectrum. An autonomous vehicle performs real-time perception and control at the edge for latency reasons, uploads driving data to the cloud for model improvement, and periodically downloads updated models. A voice assistant runs wake-word detection on-device to preserve privacy and reduce latency but sends full speech to the cloud for complex natural language processing. The key insight is that a choice to deploy on embedded devices constrains more than model size; it affects data collection strategies, training approaches, evaluation metrics, deployment mechanisms, and monitoring capabilities. These interconnected decisions demonstrate the D·A·M taxonomy in practice, where constraints along one axis create cascading effects throughout the system.

Three production systems make these abstract trade-offs concrete by representing the extremes of the deployment spectrum. Each system faces the same core challenges (data quality, model complexity, and machine scale), but the constraints of its deployment environment force radically different engineering solutions.

Production systems expose shared challenges

A deployment case study becomes an engineering tool when it exposes the binding constraint behind a design. The three production case studies (Waymo, FarmBeats, and AlphaFold) sit at different extremes of the deployment spectrum, so the same D·A·M questions force different engineering responses.

  • Autonomous driving27 binds on safety-critical latency and data freshness. The Waymo Open Dataset provides camera and LiDAR data collected across varied driving environments (Sun et al. 2020), illustrating the multimodal inputs and geographic coverage that a perception stack must handle. The broader case uses a representative high-stakes hybrid pattern with on-vehicle inference for low latency and cloud infrastructure for training and evaluation.
  • FarmBeats28 (Vasisht et al. 2017) binds on connectivity and data freshness. Microsoft’s precision agriculture platform connects field sensors to a local gateway PC for edge processing. TV white-space networking carries data across the farm, while the weaker farm-to-cloud Internet link constrains synchronization.
  • AlphaFold (Jumper et al. 2021) binds on compute-intensive training and curated scientific data. DeepMind’s protein structure prediction system made a landmark advance on a 50-year grand challenge in biology. AlphaFold represents the compute-intensive cloud deployment pattern. Initial training used 128 TPUv3 cores for approximately one week, followed by about four days of fine-tuning, and drew on the Protein Data Bank’s experimentally determined structures.

27 Autonomous-driving hybrid workflow: This representative workflow forces a synchronization challenge absent from pure cloud or pure edge systems. The on-vehicle model must be controlled and regression-tested before deployment, while cloud infrastructure can train and evaluate improved versions on newly collected driving data. This creates a version-management gap between deployed and newly trained models, requiring rigorous validation before any remote model update can be pushed to safety-critical vehicles.

28 FarmBeats: The system uses TV white-space links as high-bandwidth intra-farm backhaul from sensors to a gateway PC, where local processing reduces dependence on the weaker Internet connection to the cloud. The resulting constraint is timely data synchronization across that farm-to-cloud link, not delivery of a particular model size (Vasisht et al. 2017).

Vasisht, Deepak, Zerina Kapetanovic, Jongho Won, Xinxin Jin, Ranveer Chandra, Sudipta N. Sinha, Ashish Kapoor, Madhusudhan Sudarshan, and Sean Stratman. 2017. “FarmBeats: An IoT Platform for Data-Driven Agriculture.” 14th USENIX Symposium on Networked Systems Design and Implementation (NSDI 17), 515–29.
Jumper, John, Richard Evans, Alexander Pritzel, Tim Green, Michael Figurnov, Olaf Ronneberger, Kathryn Tunyasuvunakool, et al. 2021. “Highly Accurate Protein Structure Prediction with AlphaFold.” Nature 596 (7873): 583–89. https://doi.org/10.1038/s41586-021-03819-2.

These systems complement the lighthouse models by illustrating how the same core challenges (data quality, model complexity, and infrastructure scale) manifest under radically different constraints. Rather than examining each system in isolation, they are analyzed through the lens of the D·A·M taxonomy. The same data drift phenomenon that affects Waymo’s perception models in changing weather also affects FarmBeats’ crop disease detection across growing seasons, though the engineering responses differ based on machine constraints.

The interdependencies across the D·A·M axes create specific challenge categories that define the daily work of an ML systems engineer. Examining the deployment extremes reveals these challenges in their most rigorous forms.

Real-world data is often noisy and inconsistent, presenting the first category of challenges. Autonomous vehicles process large multimodal sensor streams from LiDAR29 and cameras (Sun et al. 2020). Engineers must solve for sensor interference, such as rain obscuring cameras, and temporal misalignment across asynchronous data streams. Scale compounds these quality issues. FarmBeats processes sensor data at a local gateway before synchronizing over a constrained farm-to-cloud link, while AlphaFold occupies the opposite extreme, requiring access to the Protein Data Bank’s experimentally determined structures during training.

29 LiDAR (light detection and ranging): This sensor is a primary reason the vehicle is a “roving data center,” as its pulsed lasers generate a dense 3D point cloud of the environment. The raw data stream from a single unit can exceed 100 megabytes per second, creating both the terabyte-scale volume challenge and the quality challenge mentioned, as the signal is easily degraded by sensor interference from rain or fog.

Sun, Pei, Henrik Kretzschmar, Xerxes Dotiwalla, Aurelien Chouard, Vijaysai Patnaik, Paul Tsui, James Guo, et al. 2020. “Scalability in Perception for Autonomous Driving: Waymo Open Dataset.” Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, 2446–54. https://doi.org/10.1109/CVPR42600.2020.00252.
Gama, João, Indrė Žliobaitė, Albert Bifet, Mykola Pechenizkiy, and Abdelhamid Bouchachia. 2014. “A Survey on Concept Drift Adaptation.” ACM Computing Surveys 46 (4): 1–37. https://doi.org/10.1145/2523813.
Quiñonero-Candela, Joaquin, Masashi Sugiyama, Anton Schwaighofer, and Neil D. Lawrence, eds. 2009. Dataset Shift in Machine Learning. Neural Information Processing Series. The MIT Press.
Koh, Pang Wei, Shiori Sagawa, Henrik Marklund, Sang Michael Xie, Marvin Zhang, Akshay Balsubramani, Weihua Hu, et al. 2021. “WILDS: A Benchmark of in-the-Wild Distribution Shifts.” In Proceedings of the 38th International Conference on Machine Learning, ICML 2021, 18-24 July 2021, Virtual Event, edited by Marina Meila and Tong Zhang, vol. 139, 139. Proceedings of Machine Learning Research. PMLR.

30 Data drift: Divergence between the training data distribution (\(P_0\)) and the production distribution (\(P_t\)). Drift can change performance without a code change, but divergence alone does not determine whether accuracy falls; outcome monitoring is needed to establish degradation (see ML Operations).

Data drift creates an ongoing operational burden atop both quality and scale. The statistical properties of input data change over time, and models are only as reliable as their alignment with the current distribution (Gama et al. 2014; Quiñonero-Candela et al. 2009; Koh et al. 2021). The Waymo Open Dataset reports pronounced domain gaps among San Francisco, Phoenix, and Mountain View (Sun et al. 2020);30 detecting such regional shifts requires continuous monitoring of input statistics before they manifest as system failures.

Beyond data, model complexity and generalization form the second challenge category. Computational intensity defines the upper bound of capability. Foundation models at GPT-3 scale (section 1.2.3) demand zettaFLOPs of compute, and even smaller scientific models like AlphaFold required weeks of specialized accelerator training. Systems engineers must optimize for “FLOP/s per watt” to make these models economically and environmentally viable. Yet raw scale is not enough. The generalization gap remains the central algorithmic risk because a model might achieve 99 percent accuracy on benchmarks but only 75 percent in the real world. For Waymo’s safety-critical autonomous driving systems, minimizing this gap is a life-or-death requirement, demanding robustness methods that cover the long tail of edge cases.

The third category encompasses the system-level challenges of getting models to work reliably in production. The training-serving divide describes the gap between the flexible environment where models are born and the rigid environment where they operate. Latency-throughput trade-offs dictate architecture. Waymo-style perception systems require low-latency safety decisions at the edge, while AlphaFold runs in the cloud and its inference time depends on protein length and configuration. Hybrid coordination adds further complexity, as modern systems increasingly adopt tiered architectures. A voice assistant, for example, performs wake-word detection locally (TinyML) to preserve privacy and reduce latency, but offloads complex natural language processing to massive GPU clusters in the cloud.

Finally, as systems scale, their impact on society becomes a first-class engineering concern that cuts across all three D·A·M axes. Fairness and bias must be managed proactively, since models can unintentionally learn societal biases present in their training data. Responsible engineering requires systematic auditing of performance across demographic subgroups to ensure equitable outcomes. Transparency and privacy requirements further constrain design. Many deep networks function as “black boxes,” yet in domains like healthcare or finance, stakeholders require interpretability. Systems must also be resilient against inference attacks31 that attempt to extract sensitive training data from model predictions.

31 Inference attack: A security threat where an adversary queries a model to deduce sensitive information about the training set. These attacks exploit the tendency of overparameterized models to memorize unique patterns in their training data, creating a direct trade-off between model capacity and privacy risk that motivates defensive techniques such as differential privacy and output perturbation.

The failure chain can cross all four challenge categories, so no single specialty can own it end to end. Their overlap creates an organizational problem as much as a technical one.

Self-Check: Question

  1. In the six-stage ML system lifecycle (Data Collection, Data Preparation, Model Training, Model Evaluation, Model Deployment, Model Monitoring), which two feedback loops structurally distinguish ML development from linear traditional software development?

    1. Deployment returns to Training on compiler warnings, and Collection returns to Preparation on memory leaks.
    2. Monitoring returns to Deployment on network timeouts, and Preparation returns to Collection on syntax errors.
    3. Model Evaluation returns to Data Preparation when offline validation fails to meet requirements, and Model Monitoring returns to Data Collection when production performance degrades under real-world drift.
    4. Model Training returns to Hardware Design on arithmetic overflow, and Deployment returns to Operating System Kernel on driver faults.

  2. Consider the three production case studies analyzed in the chapter: Waymo autonomous vehicles, Microsoft FarmBeats precision agriculture, and DeepMind AlphaFold protein folding. Which option correctly identifies the primary binding constraint governing each system’s architecture?

    1. Waymo is bound by cloud storage costs; FarmBeats is bound by TPU cluster interconnects; AlphaFold is bound by battery thermal envelopes.
    2. Waymo is bound by safety-critical edge latency and multimodal sensor drift; FarmBeats is bound by weak farm-to-cloud internet connectivity requiring local edge gateway processing; AlphaFold is bound by compute-intensive cloud accelerator scaling on curated scientific data.
    3. Waymo is bound by TV white-space wireless backhaul; FarmBeats is bound by sub-millisecond perception latency; AlphaFold is bound by TinyML microcontroller memory capacity.
    4. Waymo is bound by single-threaded CPU rule evaluation; FarmBeats is bound by protein sequence alignment compute; AlphaFold is bound by smartphone battery drain.

  3. Place the six stages of the core ML system lifecycle in sequential execution order from raw input ingestion to post-release maintenance:

  1. Model Evaluation
  2. Model Training
  3. Model Monitoring
  4. Data Collection
  5. Data Preparation
  6. Model Deployment

  1. How does the formal definition of AI engineering as ‘holding stochastic systems to deterministic reliability targets’ parallel the historical emergence of computer engineering in the 1970s?

  2. A team designing a Smart Doorbell vision system chooses a TinyML microcontroller node over a cloud-offloaded architecture. What primary constraint tradeoff drove this architectural decision?

    1. The doorbell must operate under a strict milliwatt power envelope on battery while preserving user visual privacy and avoiding reliance on intermittent wireless connectivity, accepting severe kilobyte-scale memory limits.
    2. TinyML microcontrollers provide higher FP16 peak FLOP/s throughput than multi-GPU cloud nodes.
    3. Cloud-based serving architectures cannot support visual wake-word classification algorithms.
    4. Microcontrollers eliminate the need for dataset annotation and model evaluation.

See Answers →

Five-Pillar Framework

Production ML therefore needs a framework that assigns responsibility for data, model behavior, infrastructure, and ethics without severing their connections (Paleyes et al. 2022). Traditional software engineering practices alone cannot address systems that degrade quietly rather than failing visibly.

This work organizes ML systems engineering around five interconnected disciplines that directly address these challenge categories. Figure 9 presents five engineering pillars, each targeting a distinct challenge category and resting on a shared foundation that reflects the physical and economic constraints every pillar must respect. Together, they represent the core engineering capabilities required to bridge the gap between research prototypes and production systems capable of operating reliably at scale. While these pillars organize the practice of ML engineering, they are supported by the foundational technical imperatives of Performance Optimization and Hardware Acceleration (covered in Part III), which provide the efficiency required to make large-scale training and deployment economically and physically viable.

Figure 9: Five-Pillar Framework: The architectural foundation of ML systems engineering organized into five core disciplines: Data Engineering, Training Systems (Model Training), Deployment Infrastructure (Model Deployment), Operations & Monitoring (Operation & Maintenance), and Ethics & Governance, supported by foundational efficiency, evaluation, and reliability practices.

The pillars are easiest to understand through a failure chain. Suppose a wake-word model stops working reliably for users in a noisy apartment building after a model update. The first question is whether the training data captured that acoustic environment, whether labels were reliable, and whether the pipeline can trace which examples reached the model. The data engineering pillar (Data Engineering) owns the data-quality, scale, privacy, drift, and lineage problems that determine what the model can learn.

If the data is sound, the next question is whether the training process converted it into a model that fits the task and budget. The training systems pillar (Model Training) owns that boundary by coordinating datasets, frameworks, optimization algorithms, hyperparameters, distributed jobs, restarts, and the cost-quality trade-offs created by model scale. A model that trains successfully is still not a system. The deployment infrastructure pillar owns the training-serving divide across model packaging, inference performance, latency, throughput, device constraints, and the benchmarking methods that reveal whether the deployed artifact still meets the requirement.

Once the model is serving, failure becomes temporal. The operations and monitoring pillar owns the question of whether behavior remains acceptable after launch, when data distributions shift, traffic changes, and model quality can degrade while infrastructure dashboards stay green. It connects monitoring, alerting, rollout strategy, incident response, and continuous evaluation. Finally, the wake-word failure may not affect all users equally, and the audio pipeline may raise consent or privacy obligations. The ethics and governance pillar (Responsible Engineering) owns constraints spanning fairness, transparency, privacy, safety, documentation, and accountability throughout the lifecycle.

Alternative organizational frameworks could group these concerns by component or lifecycle phase. The five-pillar structure was chosen because it matches the ownership boundaries that appear in real engineering teams while still making their interdependence explicit. Data choices shape training outcomes; training choices constrain deployment; deployment choices determine what operations can observe; and governance requirements can change all four. Treating responsible engineering as its own pillar prevents it from becoming an implicit afterthought under deadline pressure.

Together, the pillars translate the D·A·M taxonomy (section 1.4.1) and lifecycle stages (section 1.8.1) into engineering ownership. This structure reflects how AI evolved from algorithm-centric research to systems-centric engineering, shifting focus from making individual algorithms work to building systems that reliably deploy, operate, and maintain those algorithms at scale.

These pillars also provide the organizational backbone for this textbook. Each part develops the knowledge and skills needed for one or more pillars, following the same progression engineers use to build systems in practice. Foundations come first, followed by model construction, optimization, and production deployment.

Self-Check: Question

  1. A smart-home audio assistant fails to recognize voice commands for users in urban apartments with high ambient background noise following a model update. An investigation traces the failure chain across engineering disciplines. Which engineering pillar is correctly matched with its specific ownership responsibility in resolving this failure?

    1. Deployment Infrastructure: investigates whether the acoustic training set included sufficient background noise samples and verifies data lineage.
    2. Operations & Monitoring: modifies hyperparameter search grids and orchestrates distributed gradient checkpointing across GPU nodes.
    3. Training Systems: audits whether the speech recognition model exhibits disparate accuracy across demographic subgroups and manages user consent regulations.
    4. Data Engineering: investigates dataset coverage, acoustic noise augmentations, labeling fidelity, and data lineage to ensure representative training inputs.

  2. Why does the Five-Pillar Framework establish ‘Ethics and Governance’ as an independent, first-class engineering pillar alongside Data Engineering, Training Systems, Deployment Infrastructure, and Operations & Monitoring?

    1. Because ethics guidelines replace the need for hardware performance optimization and latency budgets.
    2. Because treating responsible AI as an implicit, distributed concern often leads to it being deprioritized under project deadline pressure, whereas an independent pillar enforces continuous accountability for fairness, privacy, safety, and transparency throughout the lifecycle.
    3. Because ethics compliance is handled entirely through automated unit tests in traditional CI/CD pipelines.
    4. Because ethical concerns only apply to public-facing consumer language models, not industrial ML systems.

  3. How does the Deployment Infrastructure pillar interface with the Operations and Monitoring pillar across the training-serving divide?

  4. True or False: In the Five-Pillar Framework, the five functional disciplines (Data Engineering, Training Systems, Deployment Infrastructure, Operations & Monitoring, and Ethics & Governance) are supported by shared foundational imperatives including Performance Optimization and Hardware Acceleration.

See Answers →

Book Organization

The five pillars describe what ML systems engineers must coordinate; the book’s four parts describe the order in which readers develop those capabilities. The organizing principle is context before theory. The landscape and vocabulary are established (Part I) before building models (Part II), optimizing those models (Part III), and deploying them reliably (Part IV). Table 8 outlines this progression.

Table 8: Book Organization: The four parts follow a pedagogical progression from context (Foundations) through theory (Build) to practice (Optimize, Deploy). Each part builds on the vocabulary and frameworks of its predecessors, so Part III’s optimization techniques assume familiarity with Part II’s model architectures, and Part IV’s deployment practices assume mastery of Parts II and III.
Part Theme Key Chapters
I: Foundations Context: ML systems landscape This chapter, ML Systems, ML Workflow, Data Engineering
II: Build Theory: Model fundamentals Neural Computation, Network Architectures, ML Frameworks, Model Training
III: Optimize Efficiency: Performance tuning Data Selection, Model Compression, Hardware Acceleration, Benchmarking
IV: Deploy Production: Real-world systems Model Serving, ML Operations, Responsible Engineering, Conclusion

Part I establishes the constraint vocabulary before model machinery appears. This opening chapter develops the engineering revolution in AI and the frameworks that organize this discipline. ML Systems explores the deployment spectrum from Cloud to TinyML, examining how physical constraints (power envelopes, memory hierarchies, and latency budgets) govern each tier. ML Workflow presents the end-to-end process from problem formulation through deployment, providing the conceptual map that guides subsequent learning. Data Engineering addresses data collection, processing, and management, establishing that data infrastructure precedes and enables model development.

Part II turns that vocabulary into model construction skills. Neural Computation provides algorithmic foundations, while Network Architectures extends these to specific network designs. Both chapters reference the five lighthouse models introduced in section 1.6.2 (ResNet-50, GPT-2/Llama, MobileNetV2, DLRM, and Keyword Spotting) to anchor abstract concepts in concrete workloads. ML Frameworks examines the software infrastructure from TensorFlow and PyTorch to specialized tools. Model Training develops training systems for complex models and large datasets.

Part III asks how to change the terms of the iron law without losing quality. Data Selection introduces techniques for reducing computational requirements while maintaining quality. Model Compression covers model-reduction techniques that make deployment cheaper. Hardware Acceleration covers GPUs and application-specific integrated circuits (ASICs). Benchmarking establishes methodologies for measuring and comparing system performance.

Part IV returns optimized systems to production, where degradation and deployment context dominate. Model Serving covers infrastructure for delivering predictions with low latency. ML Operations encompasses practices from monitoring and deployment to incident response. Responsible Engineering addresses ethical considerations and governance. Conclusion synthesizes the complete methodology and prepares the reader for the transition from single-node mastery to fleet-scale orchestration.

This book covers the single-node regime of one host with one to eight accelerators, each typically using local device memory and communicating through an on-node interconnect. The binding constraint depends on the workload and may be device memory capacity, memory bandwidth, computation, or interconnect communication. At fleet scale, thousands of nodes coordinate across network fabrics and the bottleneck shifts toward bisection bandwidth, the aggregate capacity across a cut through the cluster network. For detailed guidance on reading paths, learning outcomes, prerequisites, and how to get the most from this textbook, the preface provides the orientation.

The frameworks introduced in section 1.7 and section 1.9 help only if practitioners also shed assumptions carried over from adjacent fields. Every discipline accumulates intuitions that work within its boundaries but fail when applied elsewhere. ML systems engineering is particularly vulnerable to such imported assumptions because it draws from software engineering, statistics, and hardware design simultaneously, each of which cultivates subtly different intuitions about how systems should behave.

Self-Check: Question

  1. What is the primary pedagogical rationale behind organizing the textbook into the four sequential parts: Part I (Foundations), Part II (Build), Part III (Optimize), and Part IV (Deploy)?

    1. To teach low-level CUDA kernel programming before introducing high-level machine learning concepts.
    2. To ensure students deploy production systems in the cloud before learning how neural networks compute predictions.
    3. To establish the systems landscape, constraints, and vocabulary (context before theory) before constructing models, optimizing their physical execution, and managing them in production.
    4. To separate data science students who only read Part II from hardware engineering students who only read Part III.

  2. What distinguishes the single-node execution regime covered in this volume from the fleet-scale orchestration regime addressed in advanced distributed systems?

  3. True or False: In the textbook’s pedagogical build order, model compression and hardware acceleration (Part III) are introduced before neural computation and network architectures (Part II).

See Answers →

Fallacies and Pitfalls

Assumptions that hold in traditional software, academic research, or pure mathematics fail when applied to systems whose behavior emerges from data. The following fallacies and pitfalls capture errors that waste engineering effort, delay deployments, and cause silent production failures.

Fallacy: Better algorithms automatically produce better systems.

Engineers assume algorithmic sophistication drives system performance, but this ignores the iron law (section 1.6). Vision transformers demonstrate that architecture and large-scale pretraining can produce strong image-recognition results (Dosovitskiy et al. 2021), but production utility still depends on compute, memory movement, and latency budgets. In production, a model that is 1 percent more accurate but violates latency requirements has effectively zero utility. Production model selection is therefore a constrained optimization problem: maximize task quality subject to latency, memory, energy, cost, and reliability budgets. The hidden technical debt surrounding production models shows why model code is only the visible center of a much larger system. A well-engineered system with a simpler model can outperform a more sophisticated architecture lacking robust infrastructure.

Dosovitskiy, Alexey, Lucas Beyer, Alexander Kolesnikov, Dirk Weissenborn, Xiaohua Zhai, Thomas Unterthiner, Mostafa Dehghani, et al. 2021. “An Image Is Worth 16x16 Words: Transformers for Image Recognition at Scale.” International Conference on Learning Representations (ICLR).

Pitfall: Treating ML systems as traditional software that happens to include a model.

Engineers apply traditional testing and deployment practices to ML systems, but these systems fail in qualitatively different ways (section 1.5). Traditional bugs often produce immediate failures; ML systems can silently degrade over weeks or months before anyone notices. A/B tests in conventional software may show clear signals quickly, while ML comparisons can require longer observation windows to detect small accuracy differences across subpopulations. Unit tests verify deterministic paths; ML systems require monitoring infrastructure to catch unreliable predictions, data drift, and calibration failures. Teams deploying ML with only Continuous Integration and Continuous Delivery (CI/CD) pipelines risk silent failures that surface only after user-facing behavior has already degraded.

Fallacy: High accuracy on benchmark datasets indicates production readiness.

Engineers assume benchmark performance predicts production accuracy, but distribution shift and operational differences can cause substantial degradation in deployment. A sentiment analysis model that performs well on curated test data may fall sharply in production as users employ slang, emojis, and context absent from benchmarks. The deployment spectrum (section 1.8.2) shows that cloud, edge, and mobile environments each introduce distinct constraints. Network latency adds overhead, mobile devices’ limited numerical precision can alter accuracy, and edge devices may lack the memory for multi-model strategies that boosted benchmark scores. Production systems require failure mode analysis across demographic subgroups, monitoring infrastructure to detect drift, and validation protocols that match actual operating conditions rather than idealized test sets.

Pitfall: Optimizing individual components without considering system interactions.

Engineers optimize inference latency in isolation, but Amdahl’s Law governs end-to-end performance. A team reduces model inference from 45 ms to 15 ms, expecting proportional improvement. Yet preprocessing consumes 60 ms and postprocessing adds 25 ms, so total latency drops only from 130 ms to 100 ms. That is a 23 percent improvement rather than the expected 67 percent. The D·A·M landscape (figure 4) shows that the Data, Algorithm, and Machine axes form an interdependent system where optimizing one component shifts bottlenecks rather than eliminating them. Component-level gains do not determine end-to-end improvement; the result depends on how much of the full path the optimized component occupies.

Two stacked latency bars, before and after: the inference segment shrinks sharply in the after bar while the pre-processing and post-processing segments stay the same, so the total barely changes.

Optimizing only inference leaves end-to-end latency mostly intact.

Fallacy: ML systems can be deployed once and left to run indefinitely.

Engineers assume deployed systems maintain performance indefinitely, but distribution shift can change a fixed model’s performance. In this illustrative scenario, a recommendation system deployed at 85 percent accuracy drops to 80.2 percent within 6 months as purchasing patterns shift, losing 4.8 percentage points without any code changes. The ML lifecycle (section 1.8.1) therefore treats outcome monitoring and evidence-based retraining as operational requirements. Fraud-detection and Natural Language Processing (NLP) systems face the same risk because attackers adapt, vocabulary shifts, and user behavior changes while the code remains unchanged. Without monitoring, systems can appear healthy while prediction quality erodes. Organizations treating deployment as one-time often discover failures only after customer complaints or downstream metrics reveal the degradation.

Pitfall: Assuming that ML expertise alone is sufficient for ML systems engineering.

Organizations hire ML researchers expecting production-ready systems, but the five-pillar framework (section 1.9) requires integrated expertise across algorithms, software, systems, and operations. Teams with strong ML skills but limited systems experience can miss throughput targets because Application Programming Interface (API) design, storage layout, and serving infrastructure shape realized performance. Conversely, software infrastructure built without ML awareness can introduce preprocessing or feature bugs that degrade model behavior without obvious system failures. Deployment case studies show that production ML requires coordinated attention to data, models, infrastructure, and organizational workflow, not algorithmic quality alone (Paleyes et al. 2022). Effective teams integrate ML researchers, software engineers, and operations specialists rather than expecting one role to master all skills. The summary returns these failures to the chapter’s central claim that ML systems engineering exists because learned behavior, physical infrastructure, and organizational workflow must be designed together.

Paleyes, Andrei, Raoul-Gabriel Urma, and Neil D. Lawrence. 2022. “Challenges in Deploying Machine Learning: A Survey of Case Studies.” ACM Computing Surveys 55 (6): 1–29. https://doi.org/10.1145/3533378.
Self-Check: Question

  1. An inference pipeline consists of three sequential stages: data preprocessing taking 60 ms, model inference taking 45 ms, and output postprocessing taking 25 ms (total latency = 130 ms). An engineering team applies kernel fusion and quantization to achieve a \(3\times\) speedup on the model inference stage alone (reducing it from 45 ms to 15 ms). What is the resulting end-to-end pipeline latency and approximate overall system speedup, and what principle does this demonstrate?

    1. New latency is 100 ms (an overall speedup of \(\approx 1.30\times\), or a 23% reduction in execution time), illustrating Amdahl’s Law that component-level speedups yield only marginal end-to-end gains when non-optimized stages dominate.
    2. New latency is 43.3 ms (a \(3.0\times\) overall speedup, or 67% reduction), illustrating linear speedup scaling across modular microservices.
    3. New latency is 15 ms, illustrating that hardware acceleration bypasses pre- and post-processing stages.
    4. New latency is 115 ms, illustrating that quantization overhead cancels out inference gains.

  2. Why does high accuracy on curated benchmark datasets (such as ImageNet or GLUE) frequently fail to guarantee production readiness in real-world deployments?

    1. Benchmarks are evaluated on GPUs, whereas all production models run on CPUs.
    2. Benchmark datasets contain only synthetic, computer-generated data that lacks realistic labels.
    3. Neural networks automatically lose their learned weights when exported to production formats.
    4. Benchmarks evaluate models on static, clean distributions without operational constraints (e.g., sub-100 ms latency budgets, memory limits, noise, and ongoing distribution shift), whereas production systems face uncurated edge cases, shifting user behavior, and hardware precision limits.

  3. Explain why deploying an ML model using standard traditional software CI/CD pipelines without continuous data drift monitoring inevitably leads to the ‘deploy once and leave indefinitely’ fallacy.

  4. True or False: In production ML systems engineering, selecting a model that provides a 1% higher benchmark accuracy is always preferable, even if it requires doubling inference latency and memory footprint beyond the client application’s SLA.

See Answers →

Summary

Machine learning systems must satisfy two obligations at once: learned behavior must remain trustworthy, and the machine must deliver that behavior within physical and economic limits. The Software 2.0 shift explains why behavior learned from data can fail silently as distributions change. AI’s paradigm history and the bitter lesson explain why progress repeatedly came from systems that could exploit more computation rather than from hand-coded expertise. The D·A·M taxonomy locates the binding constraint, while the degradation equation, iron law, and energy and efficiency frameworks turn those constraints into quantitative diagnoses.

The lifecycle, deployment spectrum, and production case studies then show why continuous iteration and context-aware design are mandatory. Five lighthouse models (ResNet-50, GPT-2/Llama, MobileNetV2, DLRM, and Keyword Spotting, detailed in Network Architectures) recur throughout the book to ground these principles in real workloads.

Return to the smartphone interaction that opened the chapter. What appeared to be one intelligent action depended on representative data, a learned model, a machine within its operating budget, and feedback that could reveal changing behavior. That chain answers the question posed at the outset. Because ML behavior is learned as well as coded, it can degrade without an explicit failure and must be co-designed across data, algorithms, software, and hardware. AI engineering holds that stochastic behavior to deterministic reliability targets.

Key Takeaways: Constraints drive architecture
  • D·A·M bottlenecks migrate rather than disappear. Data, Algorithm, and Machine constraints interact, so improving one axis often exposes another. The systems habit is to ask which axis now binds, then choose the intervention that relieves that constraint without creating a larger downstream failure.
  • Learned behavior can decay silently. Traditional software usually fails when code or its environment changes; ML systems can degrade while code and infrastructure stay fixed because the world shifts relative to the training distribution. Drift metrics turn that shift into investigation triggers rather than surprise accuracy loss.
  • The iron law makes latency diagnostic. Data movement, computation, and overhead all spend from the same time budget. Cutting inference from 45 ms to 15 ms gives only 23 percent improvement when preprocessing (60 ms) and postprocessing (25 ms) dominate, so optimize the term that binds end-to-end behavior.
  • Scale wins inside physical limits. The bitter lesson explains why general methods with more compute displaced hand-crafted systems, but scale only helps when data, architecture, and machine can support it. Efficiency gains of 44.5× coexisted with roughly 7 orders of compute growth.
  • AI engineering is continuous co-design. Deployment context, lifecycle monitoring, and the five engineering pillars are not later add-ons; they are how stochastic learned behavior is held to deterministic reliability targets from cloud training through TinyML operation.

Everything this chapter has introduced supports one claim: a machine learning system is governed by physics, not by intention. Its behavior reflects what its data, arithmetic, and hardware permit. The bitter lesson, iron law, degradation equation, and D·A·M taxonomy form a single vocabulary for reasoning about behavior that is learned rather than fully specified and can decay unless maintained. Treating those constraints as the real specification is what turns a collection of techniques into a discipline.

What’s Next: From vision to architecture
Selecting where an ML model should run is governed by physical laws. The speed of light makes distant cloud servers useless for emergency braking. Thermodynamics prevents data-center-class models from running on a mobile device. Memory physics creates bandwidth ceilings that faster chips cannot overcome. The four deployment paradigms are where those laws land. ML Systems derives each paradigm’s operating envelope from the physics and develops the decision framework for choosing among them when requirements conflict.

Self-Check: Question

  1. Which statement best synthesizes the central thesis of ML systems engineering as established in this introductory chapter?

    1. ML systems engineering is the application of traditional software unit testing and object-oriented design patterns to neural network scripts.
    2. Machine learning systems are governed by the physics of data movement, arithmetic computation, and hardware constraints, requiring continuous co-design across data, algorithms, and machines to hold stochastic learned behavior to deterministic reliability targets.
    3. Hardware advances will inevitably make algorithmic efficiency and data curation obsolete as compute scales without physical limits.
    4. Pure mathematical optimization of model loss functions is sufficient to guarantee reliable real-world production performance.

  2. What does the chapter mean by the takeaway that ‘D·A·M bottlenecks migrate rather than disappear’? Give a concrete example.

  3. True or False: Holding stochastic, data-defined model behavior to deterministic reliability targets under physical hardware constraints is what transforms machine learning from a research prototype into an engineering discipline.

See Answers →

Self-Check Answers

Self-Check: Answer

  1. In Andrej Karpathy’s Software 1.0 vs. Software 2.0 framing, how do the roles of source code, the compiler, and debugging map to machine learning workflows?

    1. Training datasets and labels act as source code, the optimization loop (stochastic gradient descent) acts as the compiler, and debugging focuses on inspecting data distributions rather than execution traces.
    2. Python scripts act as source code, the deep learning framework acts as the compiler, and debugging focuses on stepping through tensor operations in an interactive debugger.
    3. Neural network weights act as source code, GPU hardware acts as the compiler, and debugging focuses on profiling memory bandwidth utilization.
    4. Pretrained model weights act as source code, inference serving runtimes act as the compiler, and debugging focuses on network packet inspection.

    Answer: The correct answer is A. In Software 2.0, the programmer curates datasets and labels (which act as source code), and an optimization algorithm such as stochastic gradient descent compiles those examples into model parameters (the binary executable). When behavior degrades, debugging moves upstream from stepping through code paths to inspecting data distributions, labeling quality, and feature pipelines. Treating Python scripts or model weights as source code overlooks that program logic in Software 2.0 is parameterized by the data itself. Treating hardware or serving engines as compilers confuses the execution platform with the compilation process that synthesizes learned weights.

    Learning Objective: Compare the structural components of Software 1.0 with their Software 2.0 counterparts.

  2. A computer vision test suite evaluates a \(224 \times 224\) RGB image classifier on 50,000 validation images. Why does passing 100% of these test cases still leave a substantial ‘verification gap’ in production?

    1. Validation sets evaluate floating-point weights, whereas production inference engines always run in integer precision.
    2. The total input space of possible pixel configurations (\(256^{150{,}528}\), spanning over 300,000 decimal digits) vastly exceeds the sample coverage of any finite test set, making exhaustive testing mathematically impossible.
    3. Convolutional neural networks cannot generalize beyond the exact batch size used during validation testing.
    4. Test suites only evaluate forward inference passes, whereas production systems must continuously execute backward gradient updates.

    Answer: The correct answer is B. The verification gap ($ ext{Verification Gap} = ext{Total Input Space} - ext{Test Set Coverage} $) arises because the input space of \(224 \times 224\) 8-bit RGB images contains \(256^{150{,}528}\) possible configurations (a number with over 300,000 digits in base 10), whereas a 50,000-image test set evaluates a vanishingly small fraction. Predeployment testing provides statistical evidence over sampled inputs, not exhaustive mathematical proof. Explanations invoking integer precision describe quantization effects rather than the fundamental input-space disparity. Explanations suggesting batch-size limits or backward pass requirements in production confuse inference serving with training mechanics.

    Learning Objective: Calculate and explain the mathematical origin of the verification gap in high-dimensional ML systems.

  3. How did Google Flu Trends fail despite having access to hundreds of billions of real-time search queries, and what systems engineering lesson does this failure provide regarding behavioral proxies?

    Answer: Google Flu Trends failed because search query volume was a behavioral proxy reflecting news coverage and search autocomplete features (public attention) rather than actual influenza infection (clinical ground truth), causing overestimates for 100 out of 108 weeks. The systems lesson is that massive data volume cannot substitute for a feedback loop to validated ground-truth measurements (such as CDC clinical sentinel data) to continuously detect proxy drift.

    Learning Objective: Analyze the failure mechanism of Google Flu Trends to evaluate the risks of uncalibrated behavioral proxies.

  4. The development paradigm where engineering teams hold model architecture code relatively fixed and systematically improve dataset quality, labels, and coverage to program model behavior is known as ____ AI.

    Answer: data-centric. data-centric completes the statement regarding the development paradigm where engineering teams hold model .

    Learning Objective: Identify the term for data-centric AI versus model-centric AI.

← Back to Questions

Self-Check: Answer

  1. Which historical transition correctly pairs an AI era with the primary systems bottleneck that limited its scalability and forced the transition to the subsequent paradigm?

    1. Symbolic AI was limited by compute throughput, forcing the transition to expert systems; Deep Learning was limited by human rule maintenance, forcing the transition to statistical learning.
    2. Expert Systems were limited by GPU memory bandwidth, forcing the transition to statistical learning; Statistical Learning was limited by formal logic ambiguity, forcing the transition to deep learning.
    3. Statistical Learning was limited by a complete lack of training labels, forcing the transition to symbolic logic; Symbolic AI was limited by hardware integer arithmetic, forcing the transition to neural networks.
    4. Expert Systems were limited by the knowledge acquisition bottleneck (serial human expert elicitation bandwidth), forcing the transition to statistical learning; Statistical Learning was limited by the feature engineering bottleneck (manual extraction of hand-crafted representations), forcing the transition to deep learning.

    Answer: The correct answer is D. Expert systems hit the knowledge acquisition bottleneck because extracting and maintaining consistent rules was bound by the serial bandwidth of human experts; statistical learning overcame this by estimating probabilities from data, but hit the feature engineering bottleneck because humans still had to manually design feature extractors (e.g., SIFT, HOG); deep learning overcame this by learning representations end-to-end from raw data. Compute throughput and GPU memory bandwidth constrained deep learning, not early symbolic or expert systems. Formal logic ambiguity was the logic bottleneck of symbolic AI, not statistical learning.

    Learning Objective: Compare the four historical AI eras across their primary limiting systems bottlenecks.

  2. Moravec’s paradox observes that tasks humans find easy (such as visual perception, walking, and grasping) require vast computational resources, while tasks humans find hard (such as playing chess or solving algebra) require comparatively little compute. What is the direct implication of this paradox for ML systems hardware?

    1. Symbolic reasoning algorithms require multi-GPU accelerator clusters, whereas computer vision pipelines run efficiently on single-threaded CPUs.
    2. High-level reasoning tasks saturate off-chip memory bandwidth, while low-level perceptual tasks are strictly compute-bound.
    3. Perceptual and physical-world AI tasks demand massive parallelism, high memory bandwidth, and specialized hardware accelerators to process dense, high-dimensional sensor streams in real time.
    4. Robotic perception models can be deployed on microcontrollers without model compression or accuracy degradation.

    Answer: The correct answer is C. Moravec’s paradox explains why perception, vision, and motor control—which humans execute effortlessly—require processing high-dimensional data at high frame rates, driving the requirement for massive arithmetic parallelism, high memory bandwidth, and domain-specific accelerators (GPUs, TPUs). The claim that symbolic reasoning requires accelerator clusters reverses the computational requirements. The assertion that high-level reasoning saturates bandwidth while perception is only compute-bound ignores the massive data movement required for continuous video streams. Microcontroller deployment for perception requires aggressive compression due to strict hardware limits.

    Learning Objective: Apply Moravec’s paradox to explain why perceptual AI workloads drive modern hardware accelerator design.

  3. **Place the four historical AI engineering eras in chronological order based on when their primary paradigm dominated, and identify the key bottleneck that constrained each era:

  1. Deep Learning Era
  2. Expert Systems Era
  3. Symbolic AI Era
  4. Statistical Learning Era**

Answer: The correct order is (3) -> (2) -> (4) -> (1). - (3) Symbolic AI Era (1950s–1970s): Constrained by the logic bottleneck (brittle hand-coded rules unable to handle real-world ambiguity). - (2) Expert Systems Era (1970s–1980s): Constrained by the knowledge acquisition bottleneck (serial human expert elicitation bandwidth). - (4) Statistical Learning Era (1990s–2000s): Constrained by the feature engineering bottleneck (manual extraction of hand-crafted features prior to statistical classification). - (1) Deep Learning Era (2010s–present): Constrained by the compute and infrastructure bottleneck (hardware scaling, memory bandwidth, and distributed coordination).

Learning Objective: Classify the chronological progression of AI engineering eras and their respective systems bottlenecks.

  1. Why was AlexNet’s 2012 ImageNet victory considered a breakthrough in systems co-design rather than purely an algorithmic advance?

    Answer: AlexNet co-designed the convolutional neural network architecture with the physical hardware constraints of two 3 GB GTX 580 GPUs, splitting convolutional and dense layers across parallel GPU streams. While convolutional algorithms had existed since 1998, AlexNet aligned dense matrix arithmetic directly with parallel GPU architectures and massive labeled data (ImageNet), achieving a 15.3% top-5 error rate (a 42% relative improvement over the 26.2% runner-up).

    Learning Objective: Evaluate AlexNet as an achievement of systems co-design linking architecture, dataset scale, and GPU hardware.

  2. True or False: The Viola-Jones face detection algorithm achieved real-time execution on early-2000s CPUs by using an attentional cascade of hand-crafted rectangular features that quickly rejected over 80% of negative image sub-windows in the first two stages.

    Answer: True. Viola-Jones exemplified the statistical learning era: expert feature engineering (integral image rectangular features) and a cascaded classifier allowed early rejection of non-face regions, achieving real-time performance within narrow domains while remaining constrained by manual feature engineering when applied to new tasks.

    Learning Objective: Explain how cascaded classifiers and hand-engineered features enabled real-time inference during the statistical learning era.

← Back to Questions

Self-Check: Answer

  1. Why did Richard Sutton describe the fundamental finding of 70 years of AI research as a ‘bitter’ lesson for researchers and engineers?

    1. Human intuition naturally seeks to build intelligence by encoding domain expertise and linguistic rules into models, yet historical progress repeatedly demonstrates that general-purpose search and learning leveraging raw computation outperform hand-crafted human knowledge.
    2. Hardware accelerators have reached physical thermodynamic scaling limits, preventing further increases in neural network parameter counts.
    3. Stochastic gradient descent algorithms produce models whose internal mathematical representations cannot be formally proven correct.
    4. Open-source models consistently match the performance of proprietary industrial foundation models trained at hundred-million-dollar compute budgets.

    Answer: The correct answer is A. The lesson is ‘bitter’ because researchers persistently try to hand-craft human domain heuristics (such as chess evaluation tables, linguistic grammars, or hand-tuned visual filters), only to discover that general methods (search and learning) powered by massive computation consistently surpass hand-engineered representations as scale increases. Thermodynamic scaling limits describe hardware physical bounds rather than Sutton’s philosophical thesis. Lack of formal verification describes probabilistic engineering. The comparison between open-source and proprietary models is a market dynamic unrelated to Sutton’s essay.

    Learning Objective: Explain why the bitter lesson prioritizes scalable computation and learning over hand-crafted human domain expertise.

  2. In comparing IBM’s Deep Blue (1997) and DeepMind’s AlphaGo (2016), how do their designs reflect the progression toward Sutton’s bitter lesson?

    1. Deep Blue relied entirely on deep reinforcement learning, whereas AlphaGo returned to hand-coded expert evaluation tables.
    2. Deep Blue combined custom silicon search (200 million positions/second) with hand-coded chess heuristics, whereas AlphaGo replaced hand-coded game strategy with neural networks trained via supervised learning and massive self-play tree search.
    3. Both systems avoided the use of custom silicon or GPUs, relying strictly on algorithmic elegance over compute scale.
    4. AlphaGo eliminated all tree search mechanisms in favor of pure single-step feedforward classification.

    Answer: The correct answer is B. Deep Blue was an early demonstration of custom hardware search (480 custom processors evaluating 200M positions/s) paired with expert-crafted heuristics. AlphaGo advanced this trajectory by eliminating hand-coded Go heuristics, using neural-network-guided Monte Carlo tree search and self-play reinforcement learning to discover superhuman strategies from computation rather than encoded human knowledge. The claim that Deep Blue used deep reinforcement learning reverses the historical paradigms. The assertion that neither system used specialized compute contradicts the custom silicon of Deep Blue and the TPU clusters of AlphaGo. AlphaGo utilized tree search guided by neural value and policy networks rather than eliminating search.

    Learning Objective: Compare how Deep Blue and AlphaGo balanced hardware acceleration, search scale, and learned representations.

  3. If the bitter lesson states that computation-leveraging methods dominate over time, why does realizing this advantage depend primarily on systems engineering rather than pure algorithmic theory?

    Answer: Harnessing computation at scale requires solving physical systems bottlenecks: memory bandwidth, cluster interconnects, distributed fault tolerance, thermal dissipation, and gigawatt-hour energy budgets (\(E_{\text{move}} \gg E_{\text{compute}}\)). An algorithm designed to scale with compute is ineffective if memory systems cannot supply weights fast enough or if infrastructure cannot coordinate thousands of accelerators without stalling.

    Learning Objective: Justify why systems engineering is the prerequisite for realizing the benefits of the bitter lesson.

  4. True or False: According to the bitter lesson, building domain-specific linguistic or perceptual rules into deep neural network architectures provides a permanent, compounding advantage over general architectures as compute budgets expand.

    Answer: False. Sutton’s bitter lesson demonstrates that domain-specific human heuristics are a depreciating asset; as computational scale increases by orders of magnitude, general architectures (such as transformers) that leverage raw compute and learning consistently surpass specialized, rule-infused designs.

    Learning Objective: Evaluate the long-term trade-off between domain-specific inductive biases and general scalable architectures under expanding compute budgets.

← Back to Questions

Self-Check: Answer

  1. An ML engineering team trains a 70-billion-parameter language model. When profiling the distributed cluster, they notice that accelerator compute engines remain idle for 45% of execution time waiting for batch tensors to be loaded from remote object storage over the network. Along which D·A·M axis does the primary binding constraint lie, and which intersection represents the appropriate optimization space?

    1. Machine axis; \(\text{Algorithm} \cap \text{Machine}\) (mixed precision quantization and kernel fusion)
    2. Algorithm axis; \(\text{Data} \cap \text{Algorithm}\) (curriculum learning and active data selection)
    3. Data axis; \(\text{Data} \cap \text{Machine}\) (I/O pipelining, prefetching, and storage memory hierarchy)
    4. Workload axis; \(\text{Data} \cap \text{Algorithm} \cap \text{Machine}\) (reinforcement learning from human feedback)

    Answer: The correct answer is C. The binding bottleneck is data movement and storage throughput starving the compute engines, placing the constraint along the Data axis. The corresponding design space is the \(\text{Data} \cap \text{Machine}\) intersection (‘How to Move Information’), which includes I/O bandwidth optimization, asynchronous prefetching, efficient storage formats, and memory hierarchy management. Optimizing mixed precision quantization ($ ext{A} \() accelerates compute execution but does not resolve storage starvation. Curriculum learning (\) ext{D} $) selects which samples to present but does not fix I/O pipeline bandwidth.

    Learning Objective: Analyze the binding constraint in an ML system using the D·A·M taxonomy and identify the corresponding optimization intersection.

  2. Across the four deployment paradigms defined in the chapter (Cloud, Edge, Mobile, TinyML), approximately what orders-of-magnitude span exists between the highest tier (Cloud) and the lowest tier (TinyML) in memory capacity and compute throughput?

    1. \(10^2\) (100\(\times\)) span in memory capacity and \(10^3\) (1,000\(\times\)) span in compute throughput
    2. \(10^3\) (1,000\(\times\)) span in memory capacity and \(10^4\) (10,000\(\times\)) span in compute throughput
    3. \(10^{12}\) (one trillion\(\times\)) span in memory capacity and \(10^{15}\) span in compute throughput
    4. \(10^6\) (one million\(\times\)) span in memory capacity and \(10^7\) (ten million\(\times\)) span in compute throughput

    Answer: The correct answer is D. The deployment spectrum spans approximately six orders of magnitude (\(10^6\times\)) in memory capacity (from \(\approx 10^{11}\text{ bytes}\) in cloud accelerator nodes down to \(\approx 10^5\text{ bytes}\) in TinyML microcontrollers) and seven orders of magnitude (\(10^7\times\)) in compute throughput (from \(\approx 10^{15}\text{ ops/s}\) in cloud down to \(\approx 10^8\text{ ops/s}\) in TinyML). This multi-million-fold divergence is why models cannot simply be transferred across tiers without fundamental architectural redesign. Spans of \(10^2\) or \(10^3\) drastically underestimate the divergence between cloud data centers and microcontrollers, while spans of \(10^{12}\) to \(10^{15}\) exceed physical realities.

    Learning Objective: Quantify the multi-order-of-magnitude memory and compute span across cloud, edge, mobile, and TinyML deployment paradigms.

  3. **Arrange the four layers of the ML systems hierarchy from the lowest physical foundation to the highest application objective, pairing each layer with its conceptual role:

  1. Workloads
  2. Systems
  3. Missions
  4. Hardware**

Answer: The correct order is (4) -> (2) -> (1) -> (3). - (4) Hardware (The Silicon / The Engine): Defines physical peak compute throughput (\(R_{\text{peak}}\)), memory bandwidth (\(\text{BW}\)), and device memory capacity. - (2) Systems (The Platforms / The Car): Defines integrated node envelopes such as power budgets, thermal limits, and interconnect topology. - (1) Workloads (The Models / The Route): Defines algorithmic demand including operation count (\(O\)), parameter footprint, and data volume moved (\(D_{\text{vol}}\)). - (3) Missions (The Scenarios / The Destination): Defines top-level operational constraints such as battery life, safety latency SLOs, or cloud cost ceilings.

Learning Objective: Classify the four layers of the ML systems hierarchy from silicon to mission.

  1. Explain what the concept of a ‘binding constraint’ means in the D·A·M framework, and describe the risk of optimizing a non-binding axis.

    Answer: A binding constraint is the specific physical, algorithmic, or data bottleneck whose relaxation directly improves end-to-end system performance (e.g., latency, throughput, or cost). Optimizing a non-binding axis (such as upgrading to faster GPUs when the system is bounded by disk I/O, or collecting more data when model capacity is saturated) expends engineering resources while leaving overall system throughput or prediction quality virtually unchanged.

    Learning Objective: Explain the principle of the binding constraint and the consequences of optimizing non-binding components.

  2. In the D·A·M intersection landscape, the intersection between Algorithm and Machine (\(\text{A} \cap \text{M}\)) addresses the core question of ‘How to ____’, encompassing techniques such as quantization, kernel fusion, and mixed precision.

    Answer: Execute Efficiently. In the D·A·M taxonomy, the Algorithm-Machine intersection (A ∩ M) governs how models execute efficiently on physical hardware through techniques like quantization, kernel fusion, and mixed precision.

    Learning Objective: Identify the core engineering focus of the Algorithm-Machine intersection in the D·A·M taxonomy.

← Back to Questions

Self-Check: Answer

  1. In the degradation equation \(\text{Accuracy}(t) \approx \text{Accuracy}_0 - \lambda \cdot \mathcal{D}(P_t \lVert P_0)\), what do the terms \(\mathcal{D}(P_t \lVert P_0)\) and \(\lambda\) represent, and which engineering lever addresses \(\lambda\)?

    1. \(\mathcal{D}(P_t \lVert P_0)\) is hardware clock jitter, \(\lambda\) is GPU temperature sensitivity, and it is addressed by dynamic voltage and frequency scaling.
    2. \(\mathcal{D}(P_t \lVert P_0)\) is statistical divergence between live production data and training data, \(\lambda\) is model sensitivity to distribution shift, and it is addressed by robust training and domain adaptation to flatten the degradation curve.
    3. \(\mathcal{D}(P_t \lVert P_0)\) is the memory bandwidth ratio, \(\lambda\) is cache miss penalty, and it is addressed by prefetching weights into on-chip memory.
    4. \(\mathcal{D}(P_t \lVert P_0)\) is training loss divergence, \(\lambda\) is the learning rate decay, and it is addressed by tuning the optimization algorithm.

    Answer: The correct answer is B. In the degradation equation, \(\mathcal{D}(P_t \lVert P_0)\) measures statistical divergence (such as KL divergence or Wasserstein distance) between the current operational data distribution \(P_t\) and the baseline training distribution \(P_0\), while \(\lambda\) represents the model’s sensitivity to that shift. The engineering lever for \(\lambda\) is making the model more robust to shift through domain generalization, data augmentation, and regularized training, which flattens the degradation slope. Explanations referring to clock jitter, memory bandwidth ratios, or learning rate schedules confuse statistical data drift with hardware execution or optimization hyperparameters.

    Learning Objective: Analyze the mathematical terms of the degradation equation and map them to their corresponding engineering interventions.

  2. A production fraud detection model begins misclassifying high-risk transactions immediately after deployment. An audit reveals that the training pipeline extracted user account age in integer days, while the live inference microservice computed account age in fractional floating-point seconds. What type of systems failure does this scenario illustrate?

    1. Training-serving skew, where discrepancies in feature computation between training and serving pipelines cause silent model degradation despite bug-free code execution.
    2. Hardware memory corruption caused by unaligned tensor strides in the GPU inference runtime.
    3. Unbounded latency tax where deserialization overhead violates the service-level agreement.
    4. Concept drift caused by macroeconomic shifts in consumer purchasing behavior over multiple years.

    Answer: The correct answer is A. This is a classic example of training-serving skew: the mathematical representation of a feature (account age in days vs. seconds) differed between the offline training environment and the online serving path. Both pipelines executed without software exceptions, yet the model received inputs outside its learned numerical distribution, causing silent prediction degradation. It is not hardware corruption, latency tax, or multi-year macroeconomic drift.

    Learning Objective: Identify and diagnose training-serving skew as a structural cause of silent degradation in ML systems.

  3. Why does the degradation equation indicate that tracking statistical data drift (\(\mathcal{D}(P_t \lVert P_0)\)) alone is necessary but not sufficient to determine whether a deployed model must be retrained?

    Answer: Statistical divergence (\(\mathcal{D}(P_t \lVert P_0)\)) indicates that the input distribution has shifted, but divergence alone does not dictate whether prediction accuracy has actually dropped or by how much. Determining whether retraining is necessary requires monitoring labeled ground-truth outcomes or calibrated business proxies alongside drift metrics to confirm whether the shift has caused meaningful performance degradation.

    Learning Objective: Explain why drift monitoring must be paired with outcome evaluation to justify model retraining decisions.

  4. True or False: Improving the initial training accuracy (\(\text{Accuracy}_0\)) of an ML model shifts the starting point of the degradation curve upward, but does not change the model’s rate of accuracy decline (\(\lambda\)) with respect to distribution drift over time.

    Answer: True. As formalized in the degradation equation (\(\text{Accuracy}(t) \approx \text{Accuracy}_0 - \lambda \cdot \mathcal{D}(P_t \lVert P_0)\)), increasing \(\text{Accuracy}_0\) improves the baseline intercept, but the rate of decay under drift is governed by sensitivity \(\lambda\), which requires robust training, regularization, or domain adaptation to flatten.

    Learning Objective: Distinguish between baseline accuracy improvements and distribution shift sensitivity in ML model degradation.

← Back to Questions

Self-Check: Answer

  1. In the Iron Law of ML Systems, \(T = \frac{D_{\text{vol}}}{\text{BW}} + \frac{O}{R_{\text{peak}} \cdot \eta_{\text{hw}}} + L_{\text{lat}}\), how do the terms differ when analyzing small-batch autoregressive LLM token decode versus large-batch ResNet-50 image inference?

    1. LLM decode is dominated by the latency term \(L_{\text{lat}}\), while ResNet-50 is dominated by the data movement term \(D_{\text{vol}}/\text{BW}\).
    2. Both workloads are dominated strictly by the compute term \(\frac{O}{R_{\text{peak}} \cdot \eta_{\text{hw}}}\), making memory bandwidth irrelevant.
    3. ResNet-50 is memory-capacity bound by embedding tables, while LLM decode is bound by network serialization overhead.
    4. Small-batch LLM decode is bound by the data movement term (\(D_{\text{vol}}/\text{BW}\)) because billions of weights and KV-cache states must be fetched from memory for every single token generated, whereas batched ResNet-50 reuses weight parameters across many inputs and spatial locations, making the compute term (\(\frac{O}{R_{\text{peak}} \cdot \eta_{\text{hw}}}\)) dominant.

    Answer: The correct answer is D. In small-batch autoregressive decode, a language model must stream its entire weight footprint and KV cache from memory to produce each single token, resulting in low arithmetic intensity where memory bandwidth (\(\text{BW}\)) binds execution time (\(D_{\text{vol}}/\text{BW}\)). In contrast, batched convolutional networks like ResNet-50 repeatedly reuse filter weights across pixels and batch elements, amortizing memory transfers and making arithmetic throughput (\(\frac{O}{R_{\text{peak}} \cdot \eta_{\text{hw}}}\)) the binding constraint. The other options misidentify the binding physical terms or misattribute DLRM’s embedding table capacity constraint to ResNet-50.

    Learning Objective: Apply the Iron Law of ML Systems to compare memory-bandwidth-bound and compute-bound workloads.

  2. When asynchronous Direct Memory Access (DMA) data transfers and Arithmetic Logic Unit (ALU) computations are overlapped in a pipelined ML runtime, how is the sequential additive Iron Law modified, and what determines execution time?

    1. \(T_{\text{pipelined}} = \frac{D_{\text{vol}}}{\text{BW}} \times \frac{O}{R_{\text{peak}} \cdot \eta_{\text{hw}}} \times L_{\text{lat}}\)
    2. \(T_{\text{pipelined}} = \min\left(\frac{D_{\text{vol}}}{\text{BW}}, \frac{O}{R_{\text{peak}} \cdot \eta_{\text{hw}}}\right) + L_{\text{lat}}\)
    3. \(T_{\text{pipelined}} \ge \max\left(\frac{D_{\text{vol}}}{\text{BW}}, \frac{O}{R_{\text{peak}} \cdot \eta_{\text{hw}}}\right) + L_{\text{lat}}\), where the slower pipeline stage dictates the critical path while hiding the latency of the faster stage.
    4. \(T_{\text{pipelined}} = \frac{D_{\text{vol}} + O}{\text{BW} + R_{\text{peak}}} + L_{\text{lat}}\)

    Answer: The correct answer is C. When data transfers and compute execute concurrently in an overlapped pipeline, the execution time is governed by the critical path: \(T_{\text{pipelined}} \ge \max\left(\frac{D_{\text{vol}}}{\text{BW}}, \frac{O}{R_{\text{peak}} \cdot \eta_{\text{hw}}}\right) + L_{\text{lat}}\). The slower stage bounds performance while completely or partially hiding the latency of the faster stage (assuming \(L_{\text{lat}}\) represents non-overlapped orchestration overhead). Multiplicative forms, min formulations, and adding bytes directly to FLOPs in the numerator violate physical laws and dimensional consistency.

    Learning Objective: Calculate the pipelined critical-path lower bound of the Iron Law under overlapped data movement and compute.

  3. Based on the energy cost model \(E_{\text{total}} \approx D_{\text{vol}} \times E_{\text{move}} + O \times E_{\text{compute}}\), explain why moving a byte from off-chip DRAM costs roughly 145 times more energy than an FP16 arithmetic operation, and state one system optimization that mitigates this energy tax.

    Answer: Data movement requires charging and discharging physical capacitive wires across millimeters of silicon and printed circuit board traces to off-chip DRAM, whereas arithmetic operations occur locally within microscopic ALU circuits. Optimizations that mitigate this tax include operator fusion, weight quantization (e.g., INT8/INT4 to reduce \(D_{\text{vol}}\)), and tiling data to maximize reuse in local on-chip SRAM caches.

    Learning Objective: Explain the physical basis of the data-movement energy tax and identify hardware/software techniques to reduce it.

  4. In economic analysis of ML systems, the quantitative metric that measures the incremental gain in model accuracy achieved per added dollar of infrastructure investment is called the ____.

    Answer: return on compute. return on compute completes the statement regarding in economic analysis of ml systems, the quantitative metric .

    Learning Objective: Identify the definition and term for Return on Compute (RoC).

  5. True or False: If an engineering team doubles the peak FLOP/s throughput (\(R_{\text{peak}}\)) of their accelerators, the end-to-end execution time of a small-batch autoregressive LLM decoding workload will be cut in half.

    Answer: False. Small-batch autoregressive LLM decode is bounded by the memory bandwidth term (\(D_{\text{vol}}/\text{BW}\)) because parameters must be fetched from memory for each token with minimal arithmetic reuse. Doubling peak compute throughput (\(R_{\text{peak}}\)) only affects the arithmetic term (\(\frac{O}{R_{\text{peak}} \cdot \eta_{\text{hw}}}\)), which is negligible compared to data transfer time during memory-bound decode.

    Learning Objective: Analyze why improving peak arithmetic throughput does not accelerate memory-bandwidth-bound workloads.

← Back to Questions

Self-Check: Answer

  1. Between 2012 (AlexNet) and 2019 (EfficientNet), algorithmic efficiency for ImageNet classification improved by approximately 44.5\(\times\) (halving required compute every ~16 months). Over the same general era, training compute for frontier models grew by roughly \(10^7\times\) (doubling every ~3.4 months). How does the ‘efficiency paradox’ (Jevons paradox in ML systems) resolve this apparent contradiction?

    1. Efficiency improvements reduce the compute cost required to reach a fixed accuracy level, and organizations reinvest those resource savings into training substantially larger models on broader datasets to achieve higher capabilities.
    2. Algorithmic efficiency metrics only apply to inference workloads, while training compute growth applies exclusively to cloud data centers.
    3. Hardware manufacturers deliberately slowed down clock frequencies to increase total data center power consumption.
    4. The 44.5\(\times\) algorithmic gain was an artifact of integer quantization that could not be replicated in 16-bit floating-point training.

    Answer: The correct answer is A. The efficiency paradox (analogous to Jevons paradox in resource economics) explains that making computation more efficient per unit of accuracy lowers the marginal cost of capability, which induces organizations to expand their training budgets and build exponentially larger models rather than consuming less total compute. The distinction is between holding capability fixed (where compute drops 44.5\(\times\)) versus letting capability expand (where compute grew \(10^7\times\)). Explanations attributing the gap to inference-only metrics, deliberate hardware throttling, or quantization artifacts misinterpret the empirical findings of Hernandez & Brown (2020) and Amodei et al. (2018).

    Learning Objective: Analyze the interaction between algorithmic efficiency gains and aggregate compute growth through Jevons paradox.

  2. What is the ‘systems gap’ defined in the chapter, and why does it make hardware-software efficiency optimization indispensable for ML practitioners?

    1. The latency gap between CPU cache access and local register access in accelerator memory hierarchies.
    2. The widening divergence between the rate at which frontier AI model compute demand has grown (doubling roughly every 3.4 months) and the rate at which semiconductor physics advances hardware density via Moore’s Law (doubling roughly every 24 months).
    3. The difference in training loss between supervised fine-tuning and reinforcement learning from human feedback.
    4. The discrepancy between open-source framework code and proprietary GPU driver implementations.

    Answer: The correct answer is B. The systems gap is the vast and growing disparity between demand scaling (frontier model training compute doubling every ~3.4 months) and hardware scaling (transistor density doubling every ~24 months under Moore’s Law). Because hardware supply cannot keep pace with model demand on semiconductor scaling alone, systems engineering—spanning algorithmic efficiency, compute efficiency, and data selection—is required to bridge the gap.

    Learning Objective: Evaluate the systems gap between AI compute demand scaling and semiconductor Moore’s law scaling.

  3. Name the three dimensions of ML efficiency described in the chapter and explain how the pedagogical order in which they are taught (Data Selection -> Model Compression -> Hardware Acceleration) differs from their historical order of emergence.

    Answer: The three dimensions are algorithmic efficiency, compute efficiency, and data selection. Historically, algorithmic breakthroughs emerged first (1980–2010), followed by compute acceleration (2010–2022), and data-centric selection (2023+). Pedagogically, the text reverses this order because in production systems, curating high-quality data is a prerequisite to training effective models, and understanding model architecture is a prerequisite to optimizing hardware execution.

    Learning Objective: Compare the three dimensions of ML efficiency and justify their pedagogical build order.

  4. True or False: Between 2012 and 2019, advances in neural network algorithmic efficiency on ImageNet lagged behind the hardware density improvements provided by Moore’s Law.

    Answer: False. Algorithmic efficiency on ImageNet improved by approximately 44.5\(\times\) between 2012 and 2019 (halving compute requirements every ~16 months), which significantly outpaced the ~11\(\times\) speedup expected from Moore’s Law’s 24-month doubling cadence over that seven-year span.

    Learning Objective: Compare the historical rate of algorithmic efficiency improvements with Moore’s Law hardware scaling.

← Back to Questions

Self-Check: Answer

  1. In the six-stage ML system lifecycle (Data Collection, Data Preparation, Model Training, Model Evaluation, Model Deployment, Model Monitoring), which two feedback loops structurally distinguish ML development from linear traditional software development?

    1. Deployment returns to Training on compiler warnings, and Collection returns to Preparation on memory leaks.
    2. Monitoring returns to Deployment on network timeouts, and Preparation returns to Collection on syntax errors.
    3. Model Evaluation returns to Data Preparation when offline validation fails to meet requirements, and Model Monitoring returns to Data Collection when production performance degrades under real-world drift.
    4. Model Training returns to Hardware Design on arithmetic overflow, and Deployment returns to Operating System Kernel on driver faults.

    Answer: The correct answer is C. The ML lifecycle includes two foundational feedback loops: an inner development loop where Model Evaluation returns to Data Preparation when model validation metrics fail acceptance criteria, and an outer production loop where live Model Monitoring triggers new Data Collection and annotation when real-world data drift or silent degradation is detected. These loops make ML engineering an iterative, closed-loop cycle rather than a linear deployment pipeline.

    Learning Objective: Analyze the feedback loops of the ML system lifecycle and explain how they manage degradation.

  2. Consider the three production case studies analyzed in the chapter: Waymo autonomous vehicles, Microsoft FarmBeats precision agriculture, and DeepMind AlphaFold protein folding. Which option correctly identifies the primary binding constraint governing each system’s architecture?

    1. Waymo is bound by cloud storage costs; FarmBeats is bound by TPU cluster interconnects; AlphaFold is bound by battery thermal envelopes.
    2. Waymo is bound by safety-critical edge latency and multimodal sensor drift; FarmBeats is bound by weak farm-to-cloud internet connectivity requiring local edge gateway processing; AlphaFold is bound by compute-intensive cloud accelerator scaling on curated scientific data.
    3. Waymo is bound by TV white-space wireless backhaul; FarmBeats is bound by sub-millisecond perception latency; AlphaFold is bound by TinyML microcontroller memory capacity.
    4. Waymo is bound by single-threaded CPU rule evaluation; FarmBeats is bound by protein sequence alignment compute; AlphaFold is bound by smartphone battery drain.

    Answer: The correct answer is B. Waymo binds on safety-critical perception latency at the edge and domain gaps across driving environments; FarmBeats binds on weak farm-to-cloud internet connectivity, using TV white-space networking to an on-farm edge PC gateway; AlphaFold binds on massive cloud accelerator compute (128 TPUv3 cores) operating on curated structural biology data from the Protein Data Bank. The other options cross-contaminate or misattribute these distinct environmental constraints.

    Learning Objective: Compare real-world production ML case studies across their respective binding systems constraints.

  3. **Place the six stages of the core ML system lifecycle in sequential execution order from raw input ingestion to post-release maintenance:

  1. Model Evaluation
  2. Model Training
  3. Model Monitoring
  4. Data Collection
  5. Data Preparation
  6. Model Deployment**

Answer: The correct order is (4) -> (5) -> (2) -> (1) -> (6) -> (3). - (4) Data Collection: Gathering raw sensor streams, user interactions, or domain artifacts. - (5) Data Preparation: Cleaning, filtering, tokenizing, normalizing, and feature extraction. - (2) Model Training: Executing optimization loops (e.g., SGD) across compute infrastructure. - (1) Model Evaluation: Statistically validating performance, latency, and fairness against criteria. - (6) Model Deployment: Packaging, quantizing, and serving model artifacts to target platforms. - (3) Model Monitoring: Tracking live input distributions, prediction metrics, and outcome feedback in production.

Learning Objective: Classify the sequential stages of the ML system lifecycle.

  1. How does the formal definition of AI engineering as ‘holding stochastic systems to deterministic reliability targets’ parallel the historical emergence of computer engineering in the 1970s?

    Answer: Just as computer engineering emerged in 1971 at Case Western Reserve to bridge electrical engineering and computer science by building reliable computing machines from physically unreliable silicon components, AI engineering bridges machine learning algorithms, systems infrastructure, and operations to deliver deterministic, predictable reliability from probabilistic, data-dependent models operating under strict physical constraints.

    Learning Objective: Explain the disciplinary emergence and core mandate of AI engineering.

  2. A team designing a Smart Doorbell vision system chooses a TinyML microcontroller node over a cloud-offloaded architecture. What primary constraint tradeoff drove this architectural decision?

    1. The doorbell must operate under a strict milliwatt power envelope on battery while preserving user visual privacy and avoiding reliance on intermittent wireless connectivity, accepting severe kilobyte-scale memory limits.
    2. TinyML microcontrollers provide higher FP16 peak FLOP/s throughput than multi-GPU cloud nodes.
    3. Cloud-based serving architectures cannot support visual wake-word classification algorithms.
    4. Microcontrollers eliminate the need for dataset annotation and model evaluation.

    Answer: The correct answer is A. TinyML deployments operate within extreme milliwatt power budgets and kilobyte-scale memory envelopes, enabling always-on battery operation, low latency, and on-device privacy without requiring continuous cloud bandwidth. Microcontrollers have millions of times less compute throughput than cloud GPUs, not more. Cloud architectures can easily run wake-word models, but would drain battery and require continuous streaming. Microcontrollers still require rigorous dataset curation and evaluation.

    Learning Objective: Evaluate the constraint trade-offs governing TinyML microcontroller deployments versus cloud architectures.

← Back to Questions

Self-Check: Answer

  1. A smart-home audio assistant fails to recognize voice commands for users in urban apartments with high ambient background noise following a model update. An investigation traces the failure chain across engineering disciplines. Which engineering pillar is correctly matched with its specific ownership responsibility in resolving this failure?

    1. Deployment Infrastructure: investigates whether the acoustic training set included sufficient background noise samples and verifies data lineage.
    2. Operations & Monitoring: modifies hyperparameter search grids and orchestrates distributed gradient checkpointing across GPU nodes.
    3. Training Systems: audits whether the speech recognition model exhibits disparate accuracy across demographic subgroups and manages user consent regulations.
    4. Data Engineering: investigates dataset coverage, acoustic noise augmentations, labeling fidelity, and data lineage to ensure representative training inputs.

    Answer: The correct answer is D. The Data Engineering pillar owns data quality, coverage, augmentation pipelines, and lineage tracing to verify whether training data adequately represents urban acoustic environments. The other options misassign responsibilities: data coverage belongs to Data Engineering, not Deployment Infrastructure; hyperparameter tuning and distributed training belong to Training Systems, not Operations & Monitoring; fairness auditing across demographic subgroups belongs to Ethics & Governance, not Training Systems.

    Learning Objective: Classify organizational ownership boundaries across the Five-Pillar Framework of ML systems engineering.

  2. Why does the Five-Pillar Framework establish ‘Ethics and Governance’ as an independent, first-class engineering pillar alongside Data Engineering, Training Systems, Deployment Infrastructure, and Operations & Monitoring?

    1. Because ethics guidelines replace the need for hardware performance optimization and latency budgets.
    2. Because treating responsible AI as an implicit, distributed concern often leads to it being deprioritized under project deadline pressure, whereas an independent pillar enforces continuous accountability for fairness, privacy, safety, and transparency throughout the lifecycle.
    3. Because ethics compliance is handled entirely through automated unit tests in traditional CI/CD pipelines.
    4. Because ethical concerns only apply to public-facing consumer language models, not industrial ML systems.

    Answer: The correct answer is B. Explicitly structuring Ethics & Governance as an independent pillar ensures that critical considerations—such as subgroup fairness audits, privacy protection (e.g., against inference attacks), safety validation, and regulatory transparency—are treated as first-class architectural constraints rather than afterthoughts that get sidelined under delivery pressure. Ethics does not replace physical performance constraints, cannot be solved purely by traditional CI/CD unit tests, and applies to all production ML systems.

    Learning Objective: Justify why Ethics and Governance is structured as an explicit pillar in ML systems engineering.

  3. How does the Deployment Infrastructure pillar interface with the Operations and Monitoring pillar across the training-serving divide?

    Answer: The Deployment Infrastructure pillar packages, compresses, benchmarks, and serves the trained model artifact to satisfy latency and throughput SLOs across target hardware, while the Operations and Monitoring pillar observes the deployed artifact in production to track input distribution drift, latency violations, prediction quality, and feedback loops for retraining.

    Learning Objective: Compare the roles and interaction between the Deployment Infrastructure and Operations & Monitoring pillars.

  4. True or False: In the Five-Pillar Framework, the five functional disciplines (Data Engineering, Training Systems, Deployment Infrastructure, Operations & Monitoring, and Ethics & Governance) are supported by shared foundational imperatives including Performance Optimization and Hardware Acceleration.

    Answer: True. The five organizational pillars rest on a common technical foundation of Performance Optimization and Hardware Acceleration (developed in Part III), which provide the physical efficiency and hardware alignment required to make large-scale training and deployment economically and computationally feasible.

    Learning Objective: Explain the relationship between the five functional pillars and their underlying technical foundations.

← Back to Questions

Self-Check: Answer

  1. What is the primary pedagogical rationale behind organizing the textbook into the four sequential parts: Part I (Foundations), Part II (Build), Part III (Optimize), and Part IV (Deploy)?

    1. To teach low-level CUDA kernel programming before introducing high-level machine learning concepts.
    2. To ensure students deploy production systems in the cloud before learning how neural networks compute predictions.
    3. To establish the systems landscape, constraints, and vocabulary (context before theory) before constructing models, optimizing their physical execution, and managing them in production.
    4. To separate data science students who only read Part II from hardware engineering students who only read Part III.

    Answer: The correct answer is C. The organizing principle is ‘context before theory’: establishing the physical constraints, deployment tiers, and diagnostic vocabulary in Part I (Foundations) provides the mental model needed before constructing models in Part II (Build), tuning their arithmetic and memory efficiency in Part III (Optimize), and managing their lifecycle in Part IV (Deploy).

    Learning Objective: Explain the pedagogical progression and architectural logic of the textbook’s four parts.

  2. What distinguishes the single-node execution regime covered in this volume from the fleet-scale orchestration regime addressed in advanced distributed systems?

    Answer: The single-node regime focuses on one host with 1 to 8 accelerators coordinating over high-speed on-node interconnects and local device memory (where bottlenecks include memory bandwidth, capacity, and compute throughput), whereas fleet scale coordinates thousands of nodes across data center networks where bisection bandwidth and cluster-wide network fabrics become the binding bottleneck.

    Learning Objective: Distinguish between the physical constraints of the single-node regime and fleet-scale cluster orchestration.

  3. True or False: In the textbook’s pedagogical build order, model compression and hardware acceleration (Part III) are introduced before neural computation and network architectures (Part II).

    Answer: False. The curriculum follows ‘context before theory’: neural computation and network architectures are developed in Part II (Build) to establish model mechanisms before Part III (Optimize) explores techniques like quantization, pruning, and hardware acceleration to optimize their execution.

    Learning Objective: Identify the dependency ordering between model architecture fundamentals and performance optimization techniques.

← Back to Questions

Self-Check: Answer

  1. An inference pipeline consists of three sequential stages: data preprocessing taking 60 ms, model inference taking 45 ms, and output postprocessing taking 25 ms (total latency = 130 ms). An engineering team applies kernel fusion and quantization to achieve a \(3\times\) speedup on the model inference stage alone (reducing it from 45 ms to 15 ms). What is the resulting end-to-end pipeline latency and approximate overall system speedup, and what principle does this demonstrate?

    1. New latency is 100 ms (an overall speedup of \(\approx 1.30\times\), or a 23% reduction in execution time), illustrating Amdahl’s Law that component-level speedups yield only marginal end-to-end gains when non-optimized stages dominate.
    2. New latency is 43.3 ms (a \(3.0\times\) overall speedup, or 67% reduction), illustrating linear speedup scaling across modular microservices.
    3. New latency is 15 ms, illustrating that hardware acceleration bypasses pre- and post-processing stages.
    4. New latency is 115 ms, illustrating that quantization overhead cancels out inference gains.

    Answer: The correct answer is A. Total initial time is \(60 + 45 + 25 = 130\text{ ms}\). With a \(3\times\) speedup on inference alone (\(45 / 3 = 15\text{ ms}\)), the new total latency is \(60 + 15 + 25 = 100\text{ ms}\). The overall speedup is \(130 / 100 = 1.30\times\), representing a 23% overall latency reduction \((1 - 1/1.30 = 0.231)\). This is a classic demonstration of Amdahl’s Law: because the inference component accounted for only \(45/130 \approx 34.6\%\) of total execution time, even a dramatic \(3\times\) component improvement yields a modest 23% end-to-end gain. Assuming a \(3\times\) overall pipeline speedup commits the pitfall of ignoring system interactions.

    Learning Objective: Calculate end-to-end pipeline speedup under Amdahl’s Law when optimizing individual ML system components.

  2. Why does high accuracy on curated benchmark datasets (such as ImageNet or GLUE) frequently fail to guarantee production readiness in real-world deployments?

    1. Benchmarks are evaluated on GPUs, whereas all production models run on CPUs.
    2. Benchmark datasets contain only synthetic, computer-generated data that lacks realistic labels.
    3. Neural networks automatically lose their learned weights when exported to production formats.
    4. Benchmarks evaluate models on static, clean distributions without operational constraints (e.g., sub-100 ms latency budgets, memory limits, noise, and ongoing distribution shift), whereas production systems face uncurated edge cases, shifting user behavior, and hardware precision limits.

    Answer: The correct answer is D. Curated benchmarks evaluate accuracy on fixed, preprocessed test distributions in unconstrained compute environments. Production deployments encounter domain shifts, slang, sensor noise, demographic variations, strict real-time latency budgets, and hardware precision/memory constraints that offline benchmarks never capture. Explanations regarding CPU execution, synthetic benchmark data, or weight erasure during export are factually inaccurate.

    Learning Objective: Analyze the fallacies of relying exclusively on benchmark accuracy to assess production readiness.

  3. Explain why deploying an ML model using standard traditional software CI/CD pipelines without continuous data drift monitoring inevitably leads to the ‘deploy once and leave indefinitely’ fallacy.

    Answer: Traditional CI/CD pipelines verify static code compilation, unit tests, and container health, which all remain completely green even as the live data distribution drifts away from the training distribution. Without continuous drift and outcome monitoring, the model will continue faithfully serving increasingly inaccurate or stale predictions without triggering any traditional software exceptions or crashes.

    Learning Objective: Explain why traditional CI/CD pipelines cannot detect silent degradation in deployed ML systems.

  4. True or False: In production ML systems engineering, selecting a model that provides a 1% higher benchmark accuracy is always preferable, even if it requires doubling inference latency and memory footprint beyond the client application’s SLA.

    Answer: False. Production model selection is a constrained multi-objective optimization problem where task accuracy must be balanced against latency, memory, power, and cost budgets; a model that violates a real-time SLA has effectively zero utility regardless of its benchmark accuracy.

    Learning Objective: Evaluate model selection trade-offs between incremental accuracy gains and production execution budgets.

← Back to Questions

Self-Check: Answer

  1. Which statement best synthesizes the central thesis of ML systems engineering as established in this introductory chapter?

    1. ML systems engineering is the application of traditional software unit testing and object-oriented design patterns to neural network scripts.
    2. Machine learning systems are governed by the physics of data movement, arithmetic computation, and hardware constraints, requiring continuous co-design across data, algorithms, and machines to hold stochastic learned behavior to deterministic reliability targets.
    3. Hardware advances will inevitably make algorithmic efficiency and data curation obsolete as compute scales without physical limits.
    4. Pure mathematical optimization of model loss functions is sufficient to guarantee reliable real-world production performance.

    Answer: The correct answer is B. The central thesis of the chapter is that ML systems have an underlying physics governed by memory bandwidth, compute throughput, and power limits; because their behavior is learned from data rather than statically coded, engineers must continuously co-design the system across all three D·A·M axes to achieve deterministic reliability from stochastic models. Reducing ML engineering to traditional unit testing, assuming compute will outscale physical limits, or relying solely on mathematical loss optimization ignores the physical and operational realities of ML systems.

    Learning Objective: Synthesize the foundational principles and central thesis of ML systems engineering.

  2. What does the chapter mean by the takeaway that ‘D·A·M bottlenecks migrate rather than disappear’? Give a concrete example.

    Answer: Optimizing a constraint along one axis often shifts the binding limitation to another axis. For example, upgrading to faster GPUs (Machine axis) may relieve a compute bottleneck only to reveal that disk I/O and storage bandwidth (Data axis) cannot feed data fast enough to keep the accelerators saturated.

    Learning Objective: Explain why ML systems engineering requires iterative bottleneck diagnosis across migrating D·A·M constraints.

  3. True or False: Holding stochastic, data-defined model behavior to deterministic reliability targets under physical hardware constraints is what transforms machine learning from a research prototype into an engineering discipline.

    Answer: True. AI engineering is defined specifically by this dual mandate: establishing deterministic reliability, safety, and latency guarantees for systems whose core behaviors are statistically learned from data and execute on physical hardware under tight resource constraints.

    Learning Objective: Synthesize how the dual mandate defines AI engineering as a rigorous discipline.

← Back to Questions

Back to top
